Curvature regularization for Non-line-of-sight Imaging from Under-sampled Data

Non-line-of-sight (NLOS) imaging aims to reconstruct the three-dimensional hidden scenes from the data measured in the line-of-sight, which uses photon time-of-flight information encoded in light after multiple diffuse reflections. The under-sampled scanning data can facilitate fast imaging. However, the resulting reconstruction problem becomes a serious ill-posed inverse problem, the solution of which is of high possibility to be degraded due to noises and distortions. In this paper, we propose two novel NLOS reconstruction models based on curvature regularization, i.e., the object-domain curvature regularization model and the dual (i.e., signal and object)-domain curvature regularization model. Fast numerical optimization algorithms are developed relying on the alternating direction method of multipliers (ADMM) with the backtracking stepsize rule, which are further accelerated by GPU implementation. We evaluate the proposed algorithms on both synthetic and real datasets, which achieve state-of-the-art performance, especially in the compressed sensing setting. All our codes and data are available at https://github.com/Duanlab123/CurvNLOS.

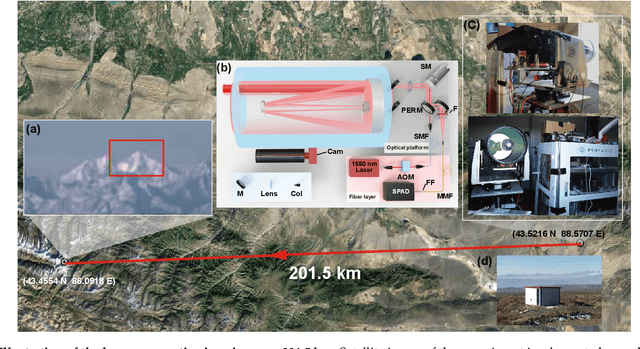

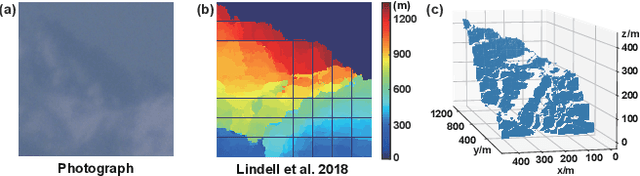

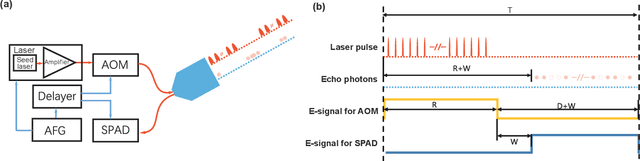

Single-photon imaging over 200 km

Long-range active imaging has widespread applications in remote sensing and target recognition. Single-photon light detection and ranging (lidar) has been shown to have high sensitivity and temporal resolution. On the application front, however, the operating range of practical single-photon lidar systems is limited to about tens of kilometers over the Earth's atmosphere, mainly due to the weak echo signal mixed with high background noise. Here, we present a compact coaxial single-photon lidar system capable of realizing 3D imaging at up to 201.5 km. It is achieved by using high-efficiency optical devices for collection and detection, and what we believe is a new noise-suppression technique that is efficient for long-range applications. We show that photon-efficient computational algorithms enable accurate 3D imaging over hundreds of kilometers with as few as 0.44 signal photons per pixel. The results represent a significant step toward practical, low-power lidar over extra-long ranges.
