Planning from Point Clouds over Continuous Actions for Multi-object Rearrangement

Long-horizon planning for robot manipulation is a challenging problem that requires reasoning about the effects of a sequence of actions on a physical 3D scene. While traditional task planning methods are shown to be effective for long-horizon manipulation, they require discretizing the continuous state and action space into symbolic descriptions of objects, object relationships, and actions. Instead, we propose a hybrid learning-and-planning approach that leverages learned models as domain-specific priors to guide search in high-dimensional continuous action spaces. We introduce SPOT: Search over Point cloud Object Transformations, which plans by searching for a sequence of transformations from an initial scene point cloud to a goal-satisfying point cloud. SPOT samples candidate actions from learned suggesters that operate on partially observed point clouds, eliminating the need to discretize actions or object relationships. We evaluate SPOT on multi-object rearrangement tasks, reporting task planning success and task execution success in both simulation and real-world environments. Our experiments show that SPOT generates successful plans and outperforms a policy-learning approach. We also perform ablations that highlight the importance of search-based planning.

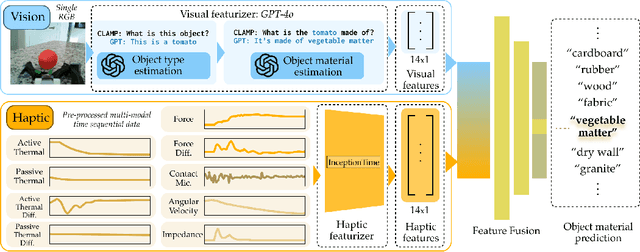

CLAMP: Crowdsourcing a LArge-scale in-the-wild haptic dataset with an open-source device for Multimodal robot Perception

Robust robot manipulation in unstructured environments often requires understanding object properties that extend beyond geometry, such as material or compliance-properties that can be challenging to infer using vision alone. Multimodal haptic sensing provides a promising avenue for inferring such properties, yet progress has been constrained by the lack of large, diverse, and realistic haptic datasets. In this work, we introduce the CLAMP device, a low-cost (<\$200) sensorized reacher-grabber designed to collect large-scale, in-the-wild multimodal haptic data from non-expert users in everyday settings. We deployed 16 CLAMP devices to 41 participants, resulting in the CLAMP dataset, the largest open-source multimodal haptic dataset to date, comprising 12.3 million datapoints across 5357 household objects. Using this dataset, we train a haptic encoder that can infer material and compliance object properties from multimodal haptic data. We leverage this encoder to create the CLAMP model, a visuo-haptic perception model for material recognition that generalizes to novel objects and three robot embodiments with minimal finetuning. We also demonstrate the effectiveness of our model in three real-world robot manipulation tasks: sorting recyclable and non-recyclable waste, retrieving objects from a cluttered bag, and distinguishing overripe from ripe bananas. Our results show that large-scale, in-the-wild haptic data collection can unlock new capabilities for generalizable robot manipulation. Website: https://emprise.cs.cornell.edu/clamp/

Embodied Active Learning of Relational State Abstractions for Bilevel Planning

State abstraction is an effective technique for planning in robotics environments with continuous states and actions, long task horizons, and sparse feedback. In object-oriented environments, predicates are a particularly useful form of state abstraction because of their compatibility with symbolic planners and their capacity for relational generalization. However, to plan with predicates, the agent must be able to interpret them in continuous environment states (i.e., ground the symbols). Manually programming predicate interpretations can be difficult, so we would instead like to learn them from data. We propose an embodied active learning paradigm where the agent learns predicate interpretations through online interaction with an expert. For example, after taking actions in a block stacking environment, the agent may ask the expert: "Is On(block1, block2) true?" From this experience, the agent learns to plan: it learns neural predicate interpretations, symbolic planning operators, and neural samplers that can be used for bilevel planning. During exploration, the agent plans to learn: it uses its current models to select actions towards generating informative expert queries. We learn predicate interpretations as ensembles of neural networks and use their entropy to measure the informativeness of potential queries. We evaluate this approach in three robotic environments and find that it consistently outperforms six baselines while exhibiting sample efficiency in two key metrics: number of environment interactions, and number of queries to the expert. Code: https://tinyurl.com/active-predicates
