Predictive and adaptive maps for long-term visual navigation in changing environments

In this paper, we compare different map management techniques for long-term visual navigation in changing environments. In this scenario, the navigation system needs to continuously update and refine its feature map in order to adapt to the environment appearance change. To achieve reliable long-term navigation, the map management techniques have to (i) select features useful for the current navigation task, (ii) remove features that are obsolete, (iii) and add new features from the current camera view to the map. We propose several map management strategies and evaluate their performance with regard to the robot localisation accuracy in long-term teach-and-repeat navigation. Our experiments, performed over three months, indicate that strategies which model cyclic changes of the environment appearance and predict which features are going to be visible at a particular time and location, outperform strategies which do not explicitly model the temporal evolution of the changes.

Warped Hypertime Representations for Long-term Autonomy of Mobile Robots

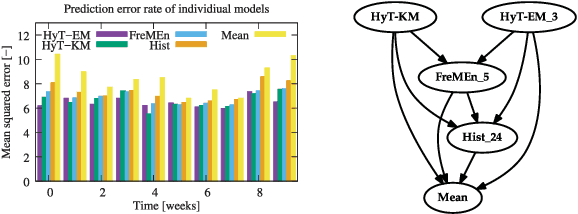

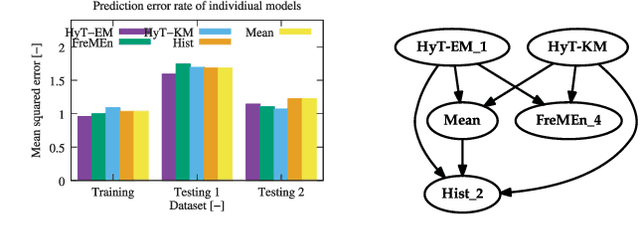

This paper presents a novel method for introducing time into discrete and continuous spatial representations used in mobile robotics, by modelling long-term, pseudo-periodic variations caused by human activities. Unlike previous approaches, the proposed method does not treat time and space separately, and its continuous nature respects both the temporal and spatial continuity of the modeled phenomena. The method extends the given spatial model with a set of wrapped dimensions that represent the periodicities of observed changes. By performing clustering over this extended representation, we obtain a model that allows us to predict future states of both discrete and continuous spatial representations. We apply the proposed algorithm to several long-term datasets and show that the method enables a robot to predict future states of repre- sentations with different dimensions. The experiments further show that the method achieves more accurate predictions than the previous state of the art.

Navigation without localisation: reliable teach and repeat based on the convergence theorem

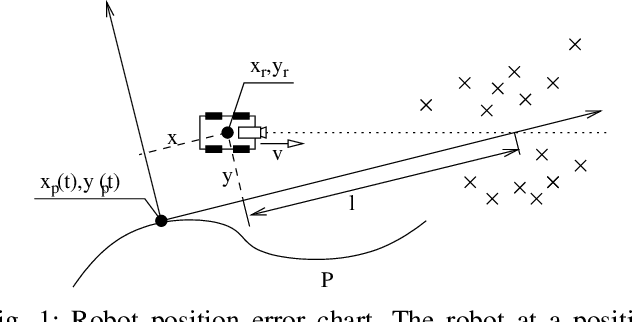

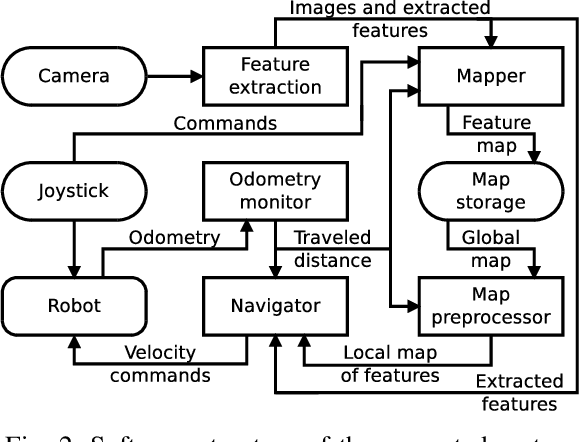

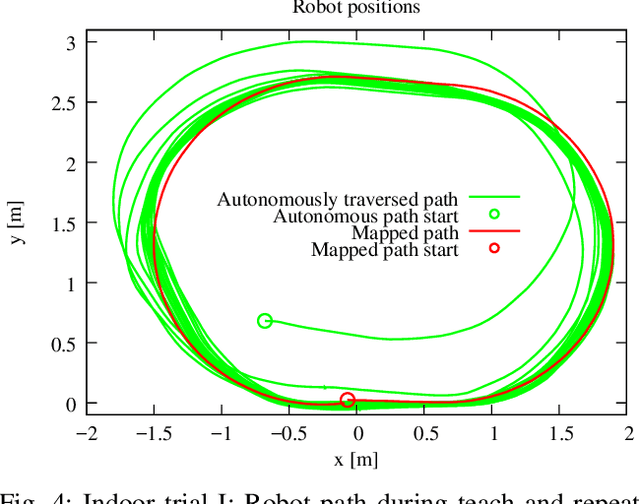

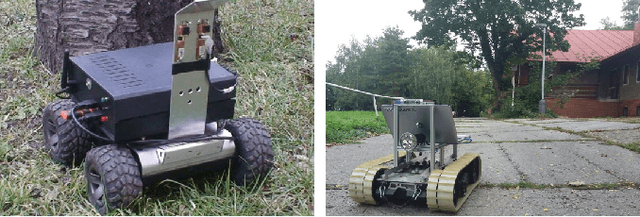

We present a novel concept for teach-and-repeat visual navigation. The proposed concept is based on a mathematical model, which indicates that in teach-and-repeat navigation scenarios, mobile robots do not need to perform explicit localisation. Rather than that, a mobile robot which repeats a previously taught path can simply `replay' the learned velocities, while using its camera information only to correct its heading relative to the intended path. To support our claim, we establish a position error model of a robot, which traverses a taught path by only correcting its heading. Then, we outline a mathematical proof which shows that this position error does not diverge over time. Based on the insights from the model, we present a simple monocular teach-and-repeat navigation method. The method is computationally efficient, it does not require camera calibration, and it can learn and autonomously traverse arbitrarily-shaped paths. In a series of experiments, we demonstrate that the method can reliably guide mobile robots in realistic indoor and outdoor conditions, and can cope with imperfect odometry, landmark deficiency, illumination variations and naturally-occurring environment changes. Furthermore, we provide the navigation system and the datasets gathered at http://www.github.com/gestom/stroll_bearnav.
