Discovering Governing Equations of Geomagnetic Storm Dynamics with Symbolic Regression

Geomagnetic storms are large-scale disturbances of the Earth's magnetosphere driven by solar wind interactions, posing significant risks to space-based and ground-based infrastructure. The Disturbance Storm Time (Dst) index quantifies geomagnetic storm intensity by measuring global magnetic field variations. This study applies symbolic regression to derive data-driven equations describing the temporal evolution of the Dst index. We use historical data from the NASA OMNIweb database, including solar wind density, bulk velocity, convective electric field, dynamic pressure, and magnetic pressure. The PySR framework, an evolutionary algorithm-based symbolic regression library, is used to identify mathematical expressions linking dDst/dt to key solar wind. The resulting models include a hierarchy of complexity levels and enable a comparison with well-established empirical models such as the Burton-McPherron-Russell and O'Brien-McPherron models. The best-performing symbolic regression models demonstrate superior accuracy in most cases, particularly during moderate geomagnetic storms, while maintaining physical interpretability. Performance evaluation on historical storm events includes the 2003 Halloween Storm, the 2015 St. Patrick's Day Storm, and a 2017 moderate storm. The results provide interpretable, closed-form expressions that capture nonlinear dependencies and thresholding effects in Dst evolution.

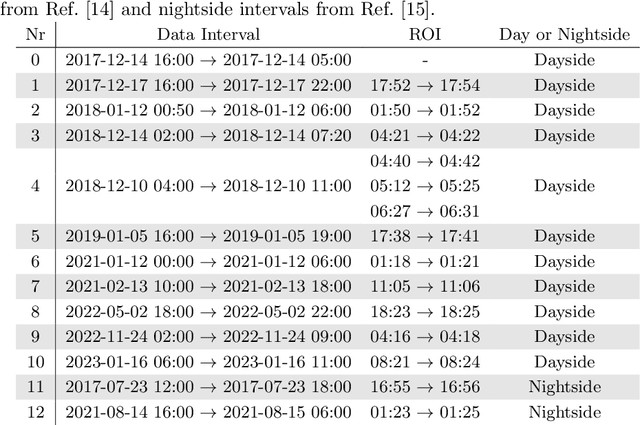

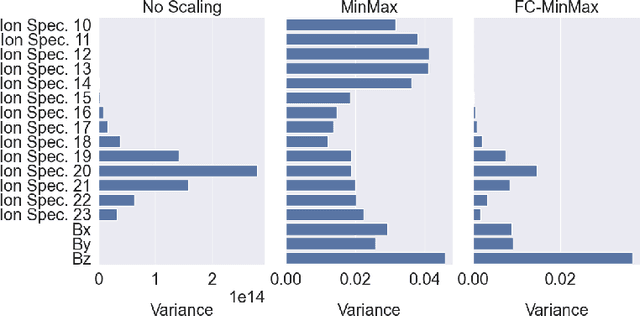

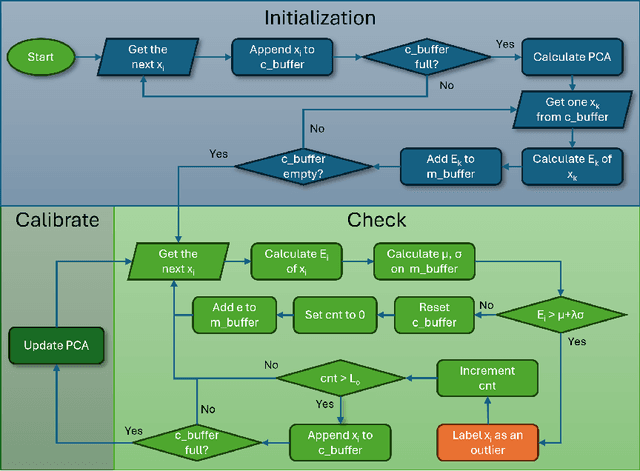

Adaptive PCA-Based Outlier Detection for Multi-Feature Time Series in Space Missions

Analyzing multi-featured time series data is critical for space missions making efficient event detection, potentially onboard, essential for automatic analysis. However, limited onboard computational resources and data downlink constraints necessitate robust methods for identifying regions of interest in real time. This work presents an adaptive outlier detection algorithm based on the reconstruction error of Principal Component Analysis (PCA) for feature reduction, designed explicitly for space mission applications. The algorithm adapts dynamically to evolving data distributions by using Incremental PCA, enabling deployment without a predefined model for all possible conditions. A pre-scaling process normalizes each feature's magnitude while preserving relative variance within feature types. We demonstrate the algorithm's effectiveness in detecting space plasma events, such as distinct space environments, dayside and nightside transients phenomena, and transition layers through NASA's MMS mission observations. Additionally, we apply the method to NASA's THEMIS data, successfully identifying a dayside transient using onboard-available measurements.

AI in Space for Scientific Missions: Strategies for Minimizing Neural-Network Model Upload

Artificial Intelligence (AI) has the potential to revolutionize space exploration by delegating several spacecraft decisions to an onboard AI instead of relying on ground control and predefined procedures. It is likely that there will be an AI/ML Processing Unit onboard the spacecraft running an inference engine. The neural-network will have pre-installed parameters that can be updated onboard by uploading, by telecommands, parameters obtained by training on the ground. However, satellite uplinks have limited bandwidth and transmissions can be costly. Furthermore, a mission operating with a suboptimal neural network will miss out on valuable scientific data. Smaller networks can thereby decrease the uplink cost, while increasing the value of the scientific data that is downloaded. In this work, we evaluate and discuss the use of reduced-precision and bare-minimum neural networks to reduce the time for upload. As an example of an AI use case, we focus on the NASA's Magnetosperic MultiScale (MMS) mission. We show how an AI onboard could be used in the Earth's magnetosphere to classify data to selectively downlink higher value data or to recognize a region-of-interest to trigger a burst-mode, collecting data at a high-rate. Using a simple filtering scheme and algorithm, we show how the start and end of a region-of-interest can be detected in on a stream of classifications. To provide the classifications, we use an established Convolutional Neural Network (CNN) trained to an accuracy >94%. We also show how the network can be reduced to a single linear layer and trained to the same accuracy as the established CNN. Thereby, reducing the overall size of the model by up to 98.9%. We further show how each network can be reduced by up to 75% of its original size, by using lower-precision formats to represent the network parameters, with a change in accuracy of less than 0.6 percentage points.
