University of Adelaide, CREST - The Centre for Research on Engineering Software Technologies
Abstract:Background: The C and C++ languages hold significant importance in Software Engineering research because of their widespread use in practice. Numerous studies have utilized Machine Learning (ML) and Deep Learning (DL) techniques to detect software vulnerabilities (SVs) in the source code written in these languages. However, the application of these techniques in function-level SV assessment has been largely unexplored. SV assessment is increasingly crucial as it provides detailed information on the exploitability, impacts, and severity of security defects, thereby aiding in their prioritization and remediation. Aims: We conduct the first empirical study to investigate and compare the performance of ML and DL models, many of which have been used for SV detection, for function-level SV assessment in C/C++. Method: Using 9,993 vulnerable C/C++ functions, we evaluated the performance of six multi-class ML models and five multi-class DL models for the SV assessment at the function level based on the Common Vulnerability Scoring System (CVSS). We further explore multi-task learning, which can leverage common vulnerable code to predict all SV assessment outputs simultaneously in a single model, and compare the effectiveness and efficiency of this model type with those of the original multi-class models. Results: We show that ML has matching or even better performance compared to the multi-class DL models for function-level SV assessment with significantly less training time. Employing multi-task learning allows the DL models to perform significantly better, with an average of 8-22% increase in Matthews Correlation Coefficient (MCC). Conclusions: We distill the practices of using data-driven techniques for function-level SV assessment in C/C++, including the use of multi-task DL to balance efficiency and effectiveness. This can establish a strong foundation for future work in this area.
Abstract:Artificial Intelligence (AI) advancements have enabled the development of Large Language Models (LLMs) that can perform a variety of tasks with remarkable semantic understanding and accuracy. ChatGPT is one such LLM that has gained significant attention due to its impressive capabilities for assisting in various knowledge-intensive tasks. Due to the knowledge-intensive nature of engineering secure software, ChatGPT's assistance is expected to be explored for security-related tasks during the development/evolution of software. To gain an understanding of the potential of ChatGPT as an emerging technology for supporting software security, we adopted a two-fold approach. Initially, we performed an empirical study to analyse the perceptions of those who had explored the use of ChatGPT for security tasks and shared their views on Twitter. It was determined that security practitioners view ChatGPT as beneficial for various software security tasks, including vulnerability detection, information retrieval, and penetration testing. Secondly, we designed an experiment aimed at investigating the practicality of this technology when deployed as an oracle in real-world settings. In particular, we focused on vulnerability detection and qualitatively examined ChatGPT outputs for given prompts within this prominent software security task. Based on our analysis, responses from ChatGPT in this task are largely filled with generic security information and may not be appropriate for industry use. To prevent data leakage, we performed this analysis on a vulnerability dataset compiled after the OpenAI data cut-off date from real-world projects covering 40 distinct vulnerability types and 12 programming languages. We assert that the findings from this study would contribute to future research aimed at developing and evaluating LLMs dedicated to software security.
Abstract:Background: Software Vulnerability (SV) prediction needs large-sized and high-quality data to perform well. Current SV datasets mostly require expensive labeling efforts by experts (human-labeled) and thus are limited in size. Meanwhile, there are growing efforts in automatic SV labeling at scale. However, the fitness of auto-labeled data for SV prediction is still largely unknown. Aims: We quantitatively and qualitatively study the quality and use of the state-of-the-art auto-labeled SV data, D2A, for SV prediction. Method: Using multiple sources and manual validation, we curate clean SV data from human-labeled SV-fixing commits in two well-known projects for investigating the auto-labeled counterparts. Results: We discover that 50+% of the auto-labeled SVs are noisy (incorrectly labeled), and they hardly overlap with the publicly reported ones. Yet, SV prediction models utilizing the noisy auto-labeled SVs can perform up to 22% and 90% better in Matthews Correlation Coefficient and Recall, respectively, than the original models. We also reveal the promises and difficulties of applying noise-reduction methods for automatically addressing the noise in auto-labeled SV data to maximize the data utilization for SV prediction. Conclusions: Our study informs the benefits and challenges of using auto-labeled SVs, paving the way for large-scale SV prediction.
Abstract:Background: Software Vulnerability (SV) assessment is increasingly adopted to address the ever-increasing volume and complexity of SVs. Data-driven approaches have been widely used to automate SV assessment tasks, particularly the prediction of the Common Vulnerability Scoring System (CVSS) metrics such as exploitability, impact, and severity. SV assessment suffers from the imbalanced distributions of the CVSS classes, but such data imbalance has been hardly understood and addressed in the literature. Aims: We conduct a large-scale study to quantify the impacts of data imbalance and mitigate the issue for SV assessment through the use of data augmentation. Method: We leverage nine data augmentation techniques to balance the class distributions of the CVSS metrics. We then compare the performance of SV assessment models with and without leveraging the augmented data. Results: Through extensive experiments on 180k+ real-world SVs, we show that mitigating data imbalance can significantly improve the predictive performance of models for all the CVSS tasks, by up to 31.8% in Matthews Correlation Coefficient. We also discover that simple text augmentation like combining random text insertion, deletion, and replacement can outperform the baseline across the board. Conclusions: Our study provides the motivation and the first promising step toward tackling data imbalance for effective SV assessment.

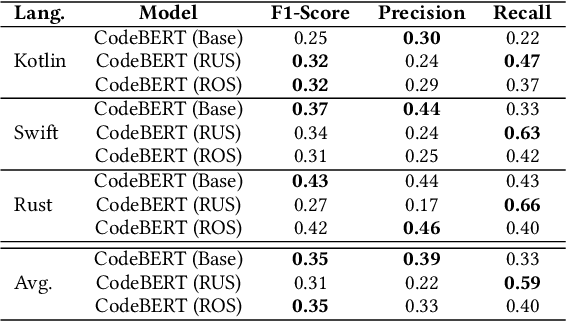

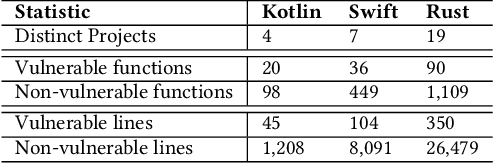

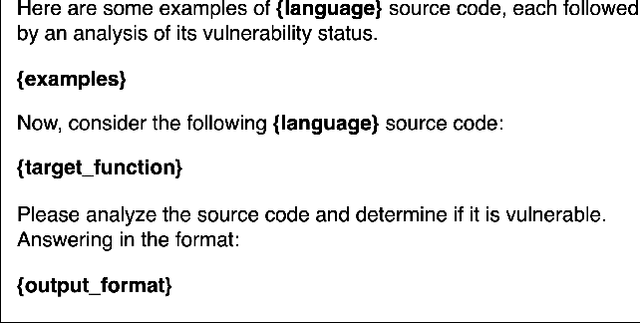

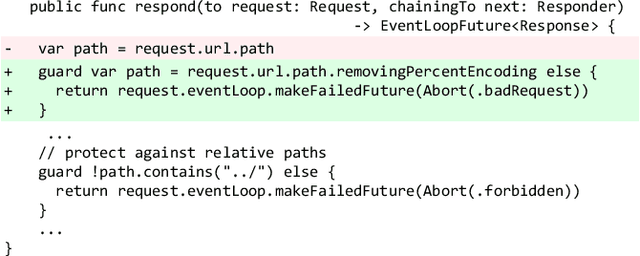

Abstract:Background: Software Vulnerability (SV) prediction in emerging languages is increasingly important to ensure software security in modern systems. However, these languages usually have limited SV data for developing high-performing prediction models. Aims: We conduct an empirical study to evaluate the impact of SV data scarcity in emerging languages on the state-of-the-art SV prediction model and investigate potential solutions to enhance the performance. Method: We train and test the state-of-the-art model based on CodeBERT with and without data sampling techniques for function-level and line-level SV prediction in three low-resource languages - Kotlin, Swift, and Rust. We also assess the effectiveness of ChatGPT for low-resource SV prediction given its recent success in other domains. Results: Compared to the original work in C/C++ with large data, CodeBERT's performance of function-level and line-level SV prediction significantly declines in low-resource languages, signifying the negative impact of data scarcity. Regarding remediation, data sampling techniques fail to improve CodeBERT; whereas, ChatGPT showcases promising results, substantially enhancing predictive performance by up to 34.4% for the function level and up to 53.5% for the line level. Conclusion: We have highlighted the challenge and made the first promising step for low-resource SV prediction, paving the way for future research in this direction.

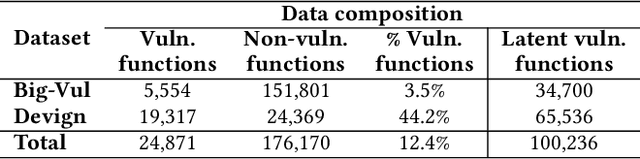

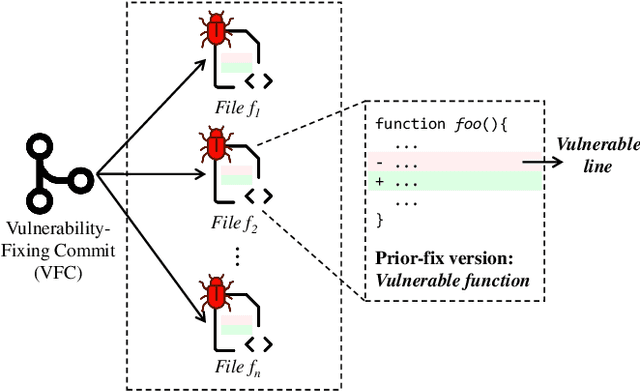

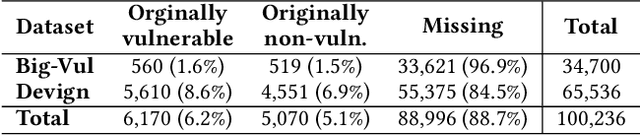

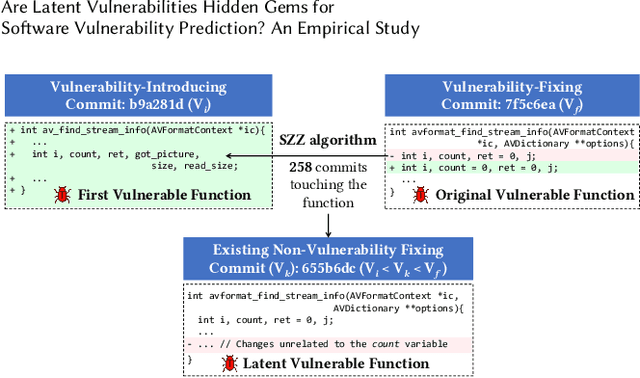

Abstract:Collecting relevant and high-quality data is integral to the development of effective Software Vulnerability (SV) prediction models. Most of the current SV datasets rely on SV-fixing commits to extract vulnerable functions and lines. However, none of these datasets have considered latent SVs existing between the introduction and fix of the collected SVs. There is also little known about the usefulness of these latent SVs for SV prediction. To bridge these gaps, we conduct a large-scale study on the latent vulnerable functions in two commonly used SV datasets and their utilization for function-level and line-level SV predictions. Leveraging the state-of-the-art SZZ algorithm, we identify more than 100k latent vulnerable functions in the studied datasets. We find that these latent functions can increase the number of SVs by 4x on average and correct up to 5k mislabeled functions, yet they have a noise level of around 6%. Despite the noise, we show that the state-of-the-art SV prediction model can significantly benefit from such latent SVs. The improvements are up to 24.5% in the performance (F1-Score) of function-level SV predictions and up to 67% in the effectiveness of localizing vulnerable lines. Overall, our study presents the first promising step toward the use of latent SVs to improve the quality of SV datasets and enhance the performance of SV prediction tasks.
Abstract:Large-Language Models (LLMs) have shifted the paradigm of natural language data processing. However, their black-boxed and probabilistic characteristics can lead to potential risks in the quality of outputs in diverse LLM applications. Recent studies have tested Quality Attributes (QAs), such as robustness or fairness, of LLMs by generating adversarial input texts. However, existing studies have limited their coverage of QAs and tasks in LLMs and are difficult to extend. Additionally, these studies have only used one evaluation metric, Attack Success Rate (ASR), to assess the effectiveness of their approaches. We propose a MEtamorphic Testing for Analyzing LLMs (METAL) framework to address these issues by applying Metamorphic Testing (MT) techniques. This approach facilitates the systematic testing of LLM qualities by defining Metamorphic Relations (MRs), which serve as modularized evaluation metrics. The METAL framework can automatically generate hundreds of MRs from templates that cover various QAs and tasks. In addition, we introduced novel metrics that integrate the ASR method into the semantic qualities of text to assess the effectiveness of MRs accurately. Through the experiments conducted with three prominent LLMs, we have confirmed that the METAL framework effectively evaluates essential QAs on primary LLM tasks and reveals the quality risks in LLMs. Moreover, the newly proposed metrics can guide the optimal MRs for testing each task and suggest the most effective method for generating MRs.
Abstract:Transformer-based text classifiers like BERT, Roberta, T5, and GPT-3 have shown impressive performance in NLP. However, their vulnerability to adversarial examples poses a security risk. Existing defense methods lack interpretability, making it hard to understand adversarial classifications and identify model vulnerabilities. To address this, we propose the Interpretability and Transparency-Driven Detection and Transformation (IT-DT) framework. It focuses on interpretability and transparency in detecting and transforming textual adversarial examples. IT-DT utilizes techniques like attention maps, integrated gradients, and model feedback for interpretability during detection. This helps identify salient features and perturbed words contributing to adversarial classifications. In the transformation phase, IT-DT uses pre-trained embeddings and model feedback to generate optimal replacements for perturbed words. By finding suitable substitutions, we aim to convert adversarial examples into non-adversarial counterparts that align with the model's intended behavior while preserving the text's meaning. Transparency is emphasized through human expert involvement. Experts review and provide feedback on detection and transformation results, enhancing decision-making, especially in complex scenarios. The framework generates insights and threat intelligence empowering analysts to identify vulnerabilities and improve model robustness. Comprehensive experiments demonstrate the effectiveness of IT-DT in detecting and transforming adversarial examples. The approach enhances interpretability, provides transparency, and enables accurate identification and successful transformation of adversarial inputs. By combining technical analysis and human expertise, IT-DT significantly improves the resilience and trustworthiness of transformer-based text classifiers against adversarial attacks.
Abstract:Many studies have developed Machine Learning (ML) approaches to detect Software Vulnerabilities (SVs) in functions and fine-grained code statements that cause such SVs. However, there is little work on leveraging such detection outputs for data-driven SV assessment to give information about exploitability, impact, and severity of SVs. The information is important to understand SVs and prioritize their fixing. Using large-scale data from 1,782 functions of 429 SVs in 200 real-world projects, we investigate ML models for automating function-level SV assessment tasks, i.e., predicting seven Common Vulnerability Scoring System (CVSS) metrics. We particularly study the value and use of vulnerable statements as inputs for developing the assessment models because SVs in functions are originated in these statements. We show that vulnerable statements are 5.8 times smaller in size, yet exhibit 7.5-114.5% stronger assessment performance (Matthews Correlation Coefficient (MCC)) than non-vulnerable statements. Incorporating context of vulnerable statements further increases the performance by up to 8.9% (0.64 MCC and 0.75 F1-Score). Overall, we provide the initial yet promising ML-based baselines for function-level SV assessment, paving the way for further research in this direction.
Abstract:Internet of Things (IoT) based applications face an increasing number of potential security risks, which need to be systematically assessed and addressed. Expert-based manual assessment of IoT security is a predominant approach, which is usually inefficient. To address this problem, we propose an automated security assessment framework for IoT networks. Our framework first leverages machine learning and natural language processing to analyze vulnerability descriptions for predicting vulnerability metrics. The predicted metrics are then input into a two-layered graphical security model, which consists of an attack graph at the upper layer to present the network connectivity and an attack tree for each node in the network at the bottom layer to depict the vulnerability information. This security model automatically assesses the security of the IoT network by capturing potential attack paths. We evaluate the viability of our approach using a proof-of-concept smart building system model which contains a variety of real-world IoT devices and potential vulnerabilities. Our evaluation of the proposed framework demonstrates its effectiveness in terms of automatically predicting the vulnerability metrics of new vulnerabilities with more than 90% accuracy, on average, and identifying the most vulnerable attack paths within an IoT network. The produced assessment results can serve as a guideline for cybersecurity professionals to take further actions and mitigate risks in a timely manner.
