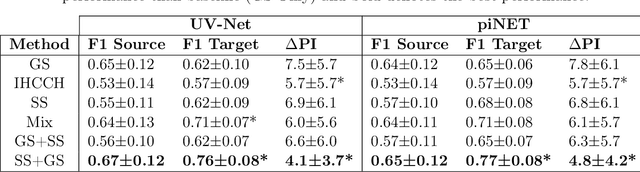

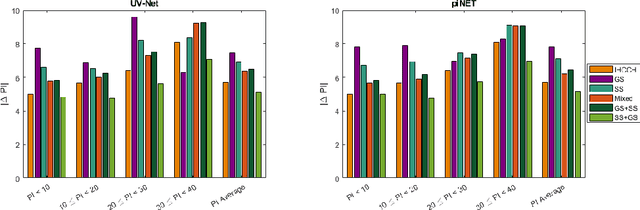

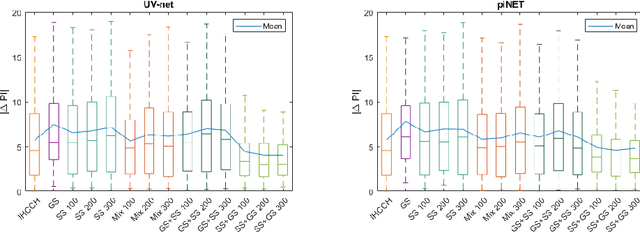

Domain Adaptation using Silver Standard Labels for Ki-67 Scoring in Digital Pathology: A Step Closer to Widescale Deployment

Deep learning systems have been proposed to improve the objectivity and efficiency of Ki- 67 PI scoring. The challenge is that while very accurate, deep learning techniques suffer from reduced performance when applied to out-of-domain data. This is a critical challenge for clinical translation, as models are typically trained using data available to the vendor, which is not from the target domain. To address this challenge, this study proposes a domain adaptation pipeline that employs an unsupervised framework to generate silver standard (pseudo) labels in the target domain, which is used to augment the gold standard (GS) source domain data. Five training regimes were tested on two validated Ki-67 scoring architectures (UV-Net and piNET), (1) SS Only: trained on target silver standard (SS) labels, (2) GS Only: trained on source GS labels, (3) Mixed: trained on target SS and source GS labels, (4) GS+SS: trained on source GS labels and fine-tuned on target SS labels, and our proposed method (5) SS+GS: trained on source SS labels and fine-tuned on source GS labels. The SS+GS method yielded significantly (p < 0.05) higher PI accuracy (95.9%) and more consistent results compared to the GS Only model on target data. Analysis of t-SNE plots showed features learned by the SS+GS models are more aligned for source and target data, resulting in improved generalization. The proposed pipeline provides an efficient method for learning the target distribution without manual annotations, which are time-consuming and costly to generate for medical images. This framework can be applied to any target site as a per-laboratory calibration method, for widescale deployment.

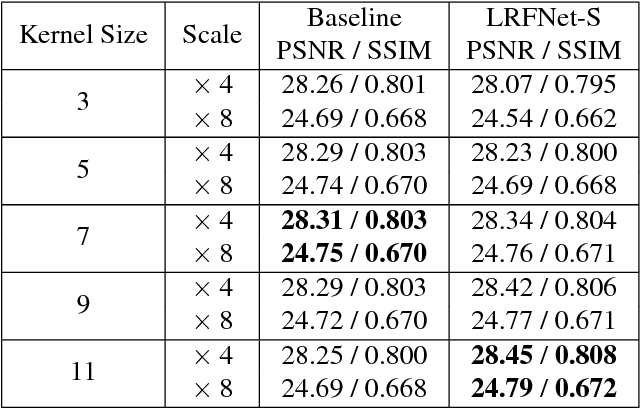

Large Receptive Field Networks for High-Scale Image Super-Resolution

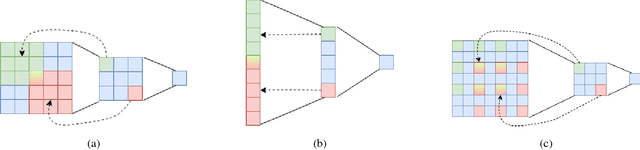

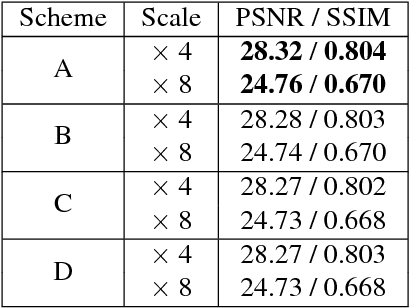

Convolutional Neural Networks have been the backbone of recent rapid progress in Single-Image Super-Resolution. However, existing networks are very deep with many network parameters, thus having a large memory footprint and being challenging to train. We propose Large Receptive Field Networks which strive to directly expand the receptive field of Super-Resolution networks without increasing depth or parameter count. In particular, we use two different methods to expand the network receptive field: 1-D separable kernels and atrous convolutions. We conduct considerable experiments to study the performance of various arrangement schemes of the 1-D separable kernels and atrous convolution in terms of accuracy (PSNR / SSIM), parameter count, and speed, while focusing on the more challenging high upscaling factors. Extensive benchmark evaluations demonstrate the effectiveness of our approach.
