RORPCap: Retrieval-based Objects and Relations Prompt for Image Captioning

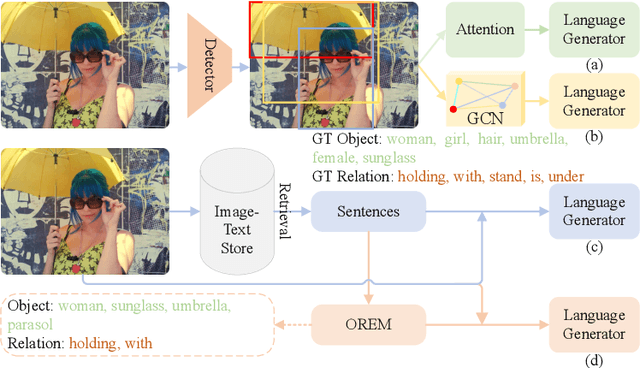

Image captioning aims to generate natural language descriptions for input images in an open-form manner. To accurately generate descriptions related to the image, a critical step in image captioning is to identify objects and understand their relations within the image. Modern approaches typically capitalize on object detectors or combine detectors with Graph Convolutional Network (GCN). However, these models suffer from redundant detection information, difficulty in GCN construction, and high training costs. To address these issues, a Retrieval-based Objects and Relations Prompt for Image Captioning (RORPCap) is proposed, inspired by the fact that image-text retrieval can provide rich semantic information for input images. RORPCap employs an Objects and relations Extraction Model to extract object and relation words from the image. These words are then incorporate into predefined prompt templates and encoded as prompt embeddings. Next, a Mamba-based mapping network is designed to quickly map image embeddings extracted by CLIP to visual-text embeddings. Finally, the resulting prompt embeddings and visual-text embeddings are concatenated to form textual-enriched feature embeddings, which are fed into a GPT-2 model for caption generation. Extensive experiments conducted on the widely used MS-COCO dataset show that the RORPCap requires only 2.6 hours under cross-entropy loss training, achieving 120.5% CIDEr score and 22.0% SPICE score on the "Karpathy" test split. RORPCap achieves comparable performance metrics to detector-based and GCN-based models with the shortest training time and demonstrates its potential as an alternative for image captioning.

NVR: Vector Runahead on NPUs for Sparse Memory Access

Deep Neural Networks are increasingly leveraging sparsity to reduce the scaling up of model parameter size. However, reducing wall-clock time through sparsity and pruning remains challenging due to irregular memory access patterns, leading to frequent cache misses. In this paper, we present NPU Vector Runahead (NVR), a prefetching mechanism tailored for NPUs to address cache miss problems in sparse DNN workloads. Rather than optimising memory patterns with high overhead and poor portability, NVR adapts runahead execution to the unique architecture of NPUs. NVR provides a general micro-architectural solution for sparse DNN workloads without requiring compiler or algorithmic support, operating as a decoupled, speculative, lightweight hardware sub-thread alongside the NPU, with minimal hardware overhead (under 5%). NVR achieves an average 90% reduction in cache misses compared to SOTA prefetching in general-purpose processors, delivering 4x average speedup on sparse workloads versus NPUs without prefetching. Moreover, we investigate the advantages of incorporating a small cache (16KB) into the NPU combined with NVR. Our evaluation shows that expanding this modest cache delivers 5x higher performance benefits than increasing the L2 cache size by the same amount.
