Bipedal-Walking-Dynamics Model on Granular Terrains

Bipeds have demonstrated high agility and mobility in unstructured environments such as sand. The yielding of such granular media brings significant sinkage and slip of the bipedal feet, leading to uncertainty and instability of walking locomotion. We present a new dynamics-modeling approach to capture and predict bipedal-walking locomotion on granular media. A dynamic foot-terrain interaction model is integrated to compute the ground reaction force (GRF). The proposed granular dynamic model has three additional degree-of-freedom (DoF) to estimate foot sinkage and slip that are critical to capturing robot-walking kinematics and kinetics such as cost of transport (CoT). Using the new model, we analyze bipedal kinetics, CoT, and foot-terrain rolling and intrusion affects. Experiments are conducted using a biped robotic walker on sand to validate the proposed dynamic model with robot-gait profiles, media-intrusion prediction, and GRF estimations. This new dynamics model can further serve as an enabling tool for locomotion control and optimization of bipedal robots to efficiently walk on granular terrains.

A Foot Resistive Force Model for Legged Locomotion on Muddy Terrains

Legged robots face significant challenges in moving and navigating on deformable and highly yielding terrain such as mud. We present a resistive force model for legged foot-mud interactions. The model captures rheological behaviors such as visco-elasticity, thixotropy of the mud suspension and retractive suction. One attractive property of this new model lies in its effective, uniform formulation to provide underlying physical interpretation and accurate resistive force predictions. We further take advantage of the resistive force model to design a new morphing robotic foot for effective and efficient legged locomotion. We conduct extensive experiments to validate the force model, and the results demonstrate that the morphing foot enhances not only the locomotion mobility but also energy-efficiency of walking in mud. The new resistive force model can be further used to develop data-driven simulation and locomotion control of legged robots on muddy terrains.

Assistive Control of Knee Exoskeletons for Human Walking on Granular Terrains

Human walkers traverse diverse environments and demonstrate different gait locomotion and energy cost on granular terrains compared to solid ground. We present a stiffness-based model predictive control approach of knee exoskeleton assistance on sand. The gait and locomotion comparison is first discussed for human walkers on sand and solid ground. A machine learning-based estimation scheme is then presented to predict the ground reaction forces (GRFs) for human walkers on different terrains in real time. Built on the estimated GRFs and human joint torques, a knee exoskeleton controller is designed to provide assistive torque through a model predictive stiffness control scheme. We conduct indoor and outdoor experiments to validate the modeling and control design and their performance. The experiments demonstrate the major muscle activation and metabolic reductions by respectively 15% and 3.7% under the assistive exoskeleton control of human walking on sand.

Foot Shape-Dependent Resistive Force Model for Bipedal Walkers on Granular Terrains

Legged robots have demonstrated high efficiency and effectiveness in unstructured and dynamic environments. However, it is still challenging for legged robots to achieve rapid and efficient locomotion on deformable, yielding substrates, such as granular terrains. We present an enhanced resistive force model for bipedal walkers on soft granular terrains by introducing effective intrusion depth correction. The enhanced force model captures fundamental kinetic results considering the robot foot shape, walking gait speed variation, and energy expense. The model is validated by extensive foot intrusion experiments with a bipedal robot. The results confirm the model accuracy on the given type of granular terrains. The model can be further integrated with the motion control of bipedal robotic walkers.

Biomechanical Comparison of Human Walking Locomotion on Solid Ground and Sand

Current studies on human locomotion focus mainly on solid ground walking conditions. In this paper, we present a biomechanic comparison of human walking locomotion on solid ground and sand. A novel dataset containing 3-dimensional motion and biomechanical data from 20 able-bodied adults for locomotion on solid ground and sand is collected. We present the data collection methods and report the sensor data along with the kinematic and kinetic profiles of joint biomechanics. A comprehensive analysis of human gait and joint stiffness profiles is presented. The kinematic and kinetic analysis reveals that human walking locomotion on sand shows different ground reaction forces and joint torque profiles, compared with those patterns from walking on solid ground. These gait differences reflect that humans adopt motion control strategies for yielding terrain conditions such as sand. The dataset also provides a source of locomotion data for researchers to study human activity recognition and assistive devices for walking on different terrains.

A Reduced-Order Resistive Force Model for Robotic Foot-Mud Interactions

Legged robots are well-suited for broad exploration tasks in complex environments with yielding terrain. Understanding robotic foot-terrain interactions is critical for safe locomotion and walking efficiency for legged robots. This paper presents a reduced-order resistive-force model for robotic-foot/mud interactions. We focus on vertical robot locomotion on mud and propose a visco-elasto-plastic analog to model the foot/mud interaction forces. Dynamic behaviors such as mud visco-elasticity, withdrawing cohesive suction, and yielding are explicitly discussed with the proposed model. Besides comparing with dry/wet granular materials, mud intrusion experiments are conducted to validate the force model. The dependency of the model parameter on water content and foot velocity is also studied to reveal in-depth model properties under various conditions. The proposed force model potentially provides an enabling tool for legged robot locomotion and control on muddy terrain.

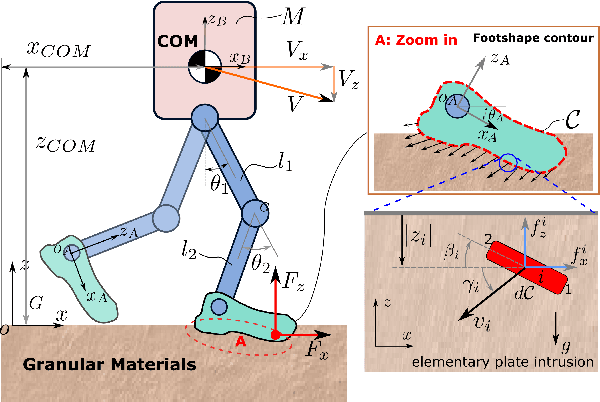

Energy Efficient Foot-Shape Design for Bipedal Walkers on Granular Terrain

It is important to understand how bipedal walkers balance and walk effectively on granular materials, such as sand and loose dirt, etc. This paper first presents a computational approach to obtain the motion and energy analysis of bipedal walkers on granular terrains and then discusses an optimization method for the robot foot-shape contour design for energy efficiently walking. We first present the foot-terrain interaction characteristics of the intrusion process using the resistive force theory that provides comprehensive force laws. Using human gait profiles, we compute and compare the ground reaction forces and the external work for walking gaits with various foot shapes on granular terrains. A multi-objective optimization problem is finally formulated for the foot contour design considering energy saving and walking efficiency. It is interesting to find out a non-convex foot shape gives the best performance in term of energy and locomotion efficiency on hard granular terrains. The presented work provides an enabling tool to further understand and design efficient and effective bipedal walkers on granular terrains.
