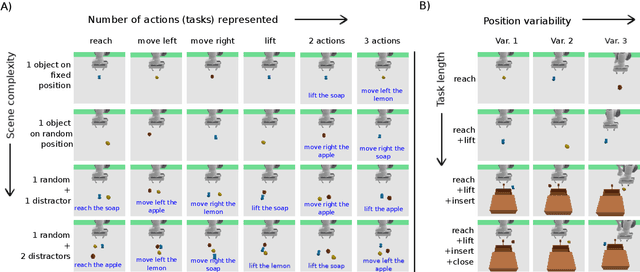

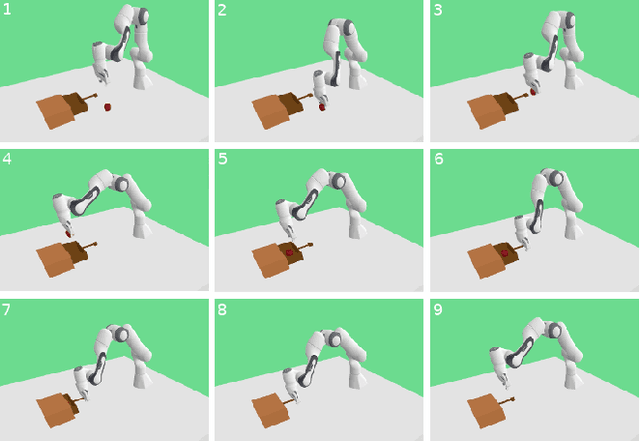

Bridging Language, Vision and Action: Multimodal VAEs in Robotic Manipulation Tasks

In this work, we focus on unsupervised vision-language-action mapping in the area of robotic manipulation. Recently, multiple approaches employing pre-trained large language and vision models have been proposed for this task. However, they are computationally demanding and require careful fine-tuning of the produced outputs. A more lightweight alternative would be the implementation of multimodal Variational Autoencoders (VAEs) which can extract the latent features of the data and integrate them into a joint representation, as has been demonstrated mostly on image-image or image-text data for the state-of-the-art models. Here we explore whether and how can multimodal VAEs be employed in unsupervised robotic manipulation tasks in a simulated environment. Based on the obtained results, we propose a model-invariant training alternative that improves the models' performance in a simulator by up to 55%. Moreover, we systematically evaluate the challenges raised by the individual tasks such as object or robot position variability, number of distractors or the task length. Our work thus also sheds light on the potential benefits and limitations of using the current multimodal VAEs for unsupervised learning of robotic motion trajectories based on vision and language.

Adaptive Compression of the Latent Space in Variational Autoencoders

Variational Autoencoders (VAEs) are powerful generative models that have been widely used in various fields, including image and text generation. However, one of the known challenges in using VAEs is the model's sensitivity to its hyperparameters, such as the latent space size. This paper presents a simple extension of VAEs for automatically determining the optimal latent space size during the training process by gradually decreasing the latent size through neuron removal and observing the model performance. The proposed method is compared to traditional hyperparameter grid search and is shown to be significantly faster while still achieving the best optimal dimensionality on four image datasets. Furthermore, we show that the final performance of our method is comparable to training on the optimal latent size from scratch, and might thus serve as a convenient substitute.

How language of interaction affects the user perception of a robot

Spoken language is the most natural way for a human to communicate with a robot. It may seem intuitive that a robot should communicate with users in their native language. However, it is not clear if a user's perception of a robot is affected by the language of interaction. We investigated this question by conducting a study with twenty-three native Czech participants who were also fluent in English. The participants were tasked with instructing the Pepper robot on where to place objects on a shelf. The robot was controlled remotely using the Wizard-of-Oz technique. We collected data through questionnaires, video recordings, and a post-experiment feedback session. The results of our experiment show that people perceive an English-speaking robot as more intelligent than a Czech-speaking robot (z = 18.00, p-value = 0.02). This finding highlights the influence of language on human-robot interaction. Furthermore, we discuss the feedback obtained from the participants via the post-experiment sessions and its implications for HRI design.

Imitrob: Imitation Learning Dataset for Training and Evaluating 6D Object Pose Estimators

This paper introduces a dataset for training and evaluating methods for 6D pose estimation of hand-held tools in task demonstrations captured by a standard RGB camera. Despite the significant progress of 6D pose estimation methods, their performance is usually limited for heavily occluded objects, which is a common case in imitation learning where the object is typically partially occluded by the manipulating hand. Currently, there is a lack of datasets that would enable the development of robust 6D pose estimation methods for these conditions. To overcome this problem, we collect a new dataset (Imitrob) aimed at 6D pose estimation in imitation learning and other applications where a human holds a tool and performs a task. The dataset contains image sequences of three different tools and six manipulation tasks with two camera viewpoints, four human subjects, and left/right hand. Each image is accompanied by an accurate ground truth measurement of the 6D object pose, obtained by the HTC Vive motion tracking device. The use of the dataset is demonstrated by training and evaluating a recent 6D object pose estimation method (DOPE) in various setups. The dataset and code are publicly available at http://imitrob.ciirc.cvut.cz/imitrobdataset.php.

Benchmarking Multimodal Variational Autoencoders: GeBiD Dataset and Toolkit

Multimodal Variational Autoencoders (VAEs) have been a subject of intense research in the past years as they can integrate multiple modalities into a joint representation and can thus serve as a promising tool for both data classification and generation. Several approaches toward multimodal VAE learning have been proposed so far, their comparison and evaluation have however been rather inconsistent. One reason is that the models differ at the implementation level, another problem is that the datasets commonly used in these cases were not initially designed for the evaluation of multimodal generative models. This paper addresses both mentioned issues. First, we propose a toolkit for systematic multimodal VAE training and comparison. Second, we present a synthetic bimodal dataset designed for a comprehensive evaluation of the joint generation and cross-generation capabilities. We demonstrate the utility of the dataset by comparing state-of-the-art models.

myGym: Modular Toolkit for Visuomotor Robotic Tasks

We introduce a novel virtual robotic toolkit myGym, developed for reinforcement learning (RL), intrinsic motivation and imitation learning tasks trained in a 3D simulator. The trained tasks can then be easily transferred to real-world robotic scenarios. The modular structure of the simulator enables users to train and validate their algorithms on a large number of scenarios with various robots, environments and tasks. Compared to existing toolkits (e.g. OpenAI Gym, Roboschool) which are suitable for classical RL, myGym is also prepared for visuomotor (combining vision & movement) unsupervised tasks that require intrinsic motivation, i.e. the robots are able to generate their own goals. There are also collaborative scenarios intended for human-robot interaction. The toolkit provides pretrained visual modules for visuomotor tasks allowing rapid prototyping, and, moreover, users can customize the visual submodules and retrain with their own set of objects. In practice, the user selects the desired environment, robot, objects, task and type of reward as simulation parameters, and the training, visualization and testing themselves are handled automatically. The user can thus fully focus on development of the neural network architecture while controlling the behaviour of the environment using predefined parameters.

Teaching robots to imitate a human with no on-teacher sensors. What are the key challenges?

In this paper, we consider the problem of learning object manipulation tasks from human demonstration using RGB or RGB-D cameras. We highlight the key challenges in capturing sufficiently good data with no tracking devices - starting from sensor selection and accurate 6DoF pose estimation to natural language processing. In particular, we focus on two showcases: gluing task with a glue gun and simple block-stacking with variable blocks. Furthermore, we discuss how a linguistic description of the task could help to improve the accuracy of task description. We also present the whole architecture of our transfer of the imitated task to the simulated and real robot environment.
