Linearized Integrated Microwave Photonic Circuit for Filtering and Phase Shifting

Photonic integration, advanced functionality, reconfigurability, and high RF performance are key features in integrated microwave photonic systems that are still difficult to achieve simultaneously. In this work, we demonstrate an integrated microwave photonic circuit that can be reconfigured for two distinct RF functions, namely, a tunable notch filter and a phase shifter. We achieved $>$50dB high-extinction notch filtering over 6-16 GHz and 2$\pi$ continuously tunable phase shifting over 12-20 GHz frequencies. At the same time, we implemented an on-chip linearization technique to achieve a spurious-free dynamic range of more than 120$\rm{dB}\cdot \rm{Hz}^{4/5}$ for both functions. Our work combines multi-functionality and linearization in one photonic integrated circuit, and paves the way to reconfigurable RF photonic front-ends with very high performance.

Universal Silicon Microwave Photonic Spectral Shaper

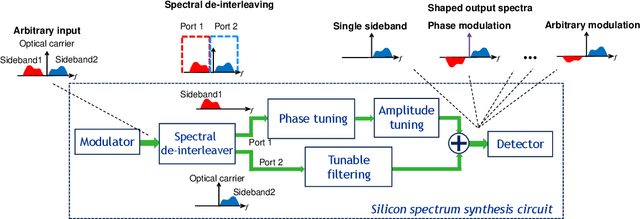

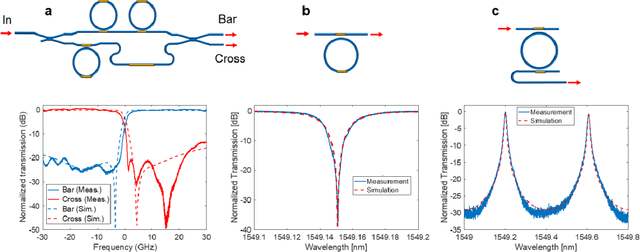

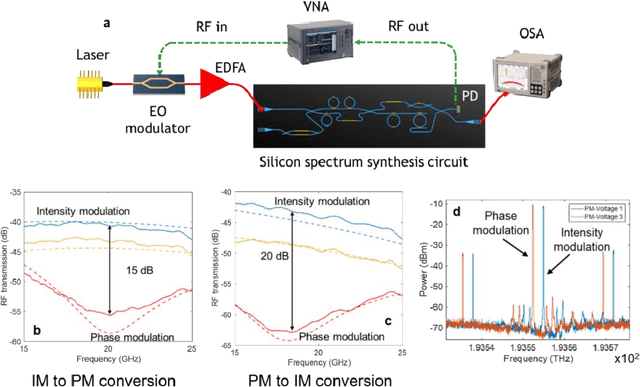

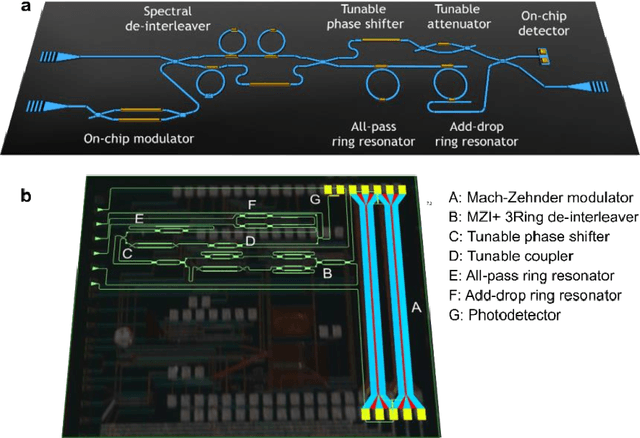

Optical modulation plays arguably the utmost important role in microwave photonic (MWP) systems. Precise synthesis of modulated optical spectra dictates virtually all aspects of MWP system quality including loss, noise figure, linearity, and the types of functionality that can be executed. But for such a critical function, the versatility to generate and transform analog optical modulation is severely lacking, blocking the pathways to truly unique MWP functions including ultra-linear links and low-loss high rejection filters. Here we demonstrate versatile RF photonic spectrum synthesis in an all-integrated silicon photonic circuit, enabling electrically-tailorable universal analog modulation transformation. We show a series of unprecedented RF filtering experiments through monolithic integration of the spectrum-synthesis circuit with a network of reconfigurable ring resonators.
