Representation-Aggregation Networks for Segmentation of Multi-Gigapixel Histology Images

Jul 27, 2017
Abhinav Agarwalla, Muhammad Shaban, Nasir M. Rajpoot

Figure 1 for Representation-Aggregation Networks for Segmentation of Multi-Gigapixel Histology Images

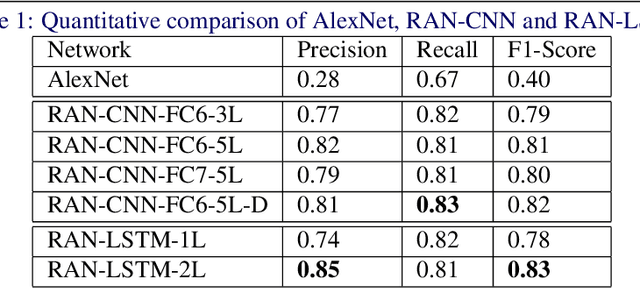

Figure 2 for Representation-Aggregation Networks for Segmentation of Multi-Gigapixel Histology Images

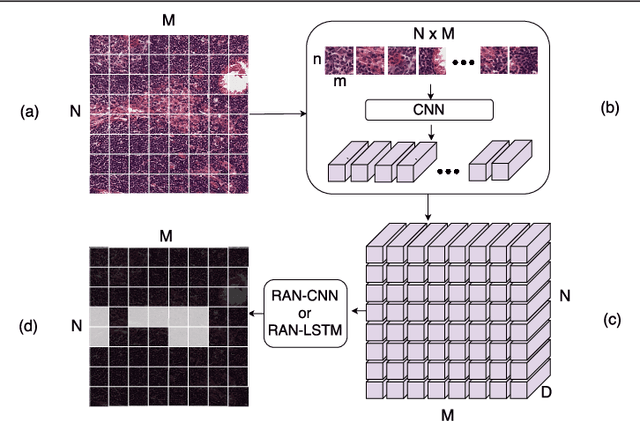

Figure 3 for Representation-Aggregation Networks for Segmentation of Multi-Gigapixel Histology Images

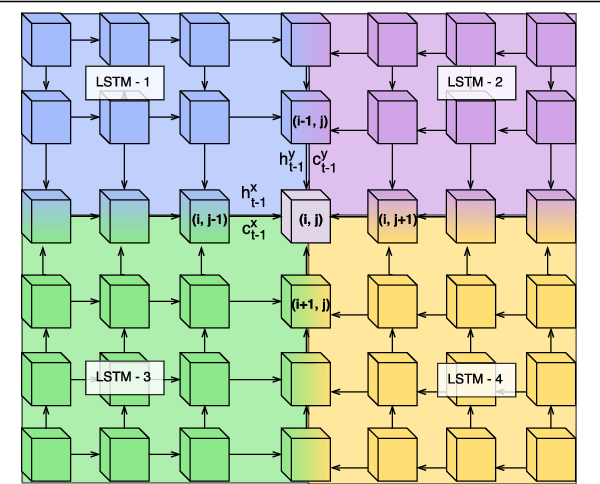

Figure 4 for Representation-Aggregation Networks for Segmentation of Multi-Gigapixel Histology Images

Share this with someone who'll enjoy it:

Convolutional Neural Network (CNN) models have become the state-of-the-art for most computer vision tasks with natural images. However, these are not best suited for multi-gigapixel resolution Whole Slide Images (WSIs) of histology slides due to large size of these images. Current approaches construct smaller patches from WSIs which results in the loss of contextual information. We propose to capture the spatial context using novel Representation-Aggregation Network (RAN) for segmentation purposes, wherein the first network learns patch-level representation and the second network aggregates context from a grid of neighbouring patches. We can use any CNN for representation learning, and can utilize CNN or 2D-Long Short Term Memory (2D-LSTM) for context-aggregation. Our method significantly outperformed conventional patch-based CNN approaches on segmentation of tumour in WSIs of breast cancer tissue sections.

* Published in Workshop on Deep Learning in Irregular Domains (DLID) in BMVC2017
