Skew-Induced Insertion Loss Deviation (SILD) and FOM_SILD: Metrics for Quantifying P/N Skew Effects in High-Speed Channels

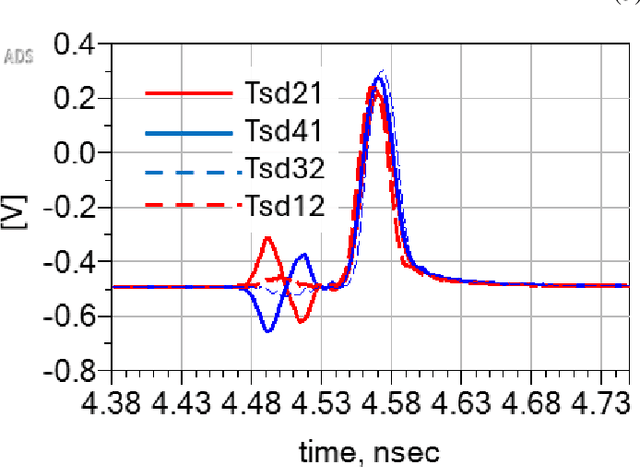

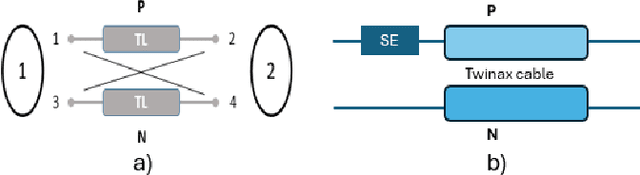

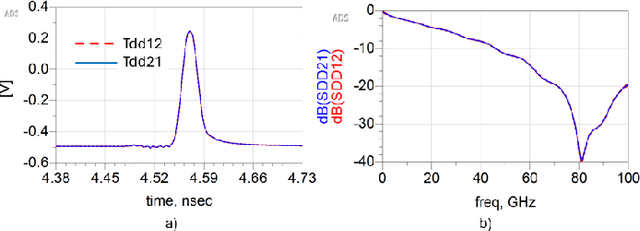

The rise of AI workloads and growing data center demands have driven the need for ultra-high-speed interconnects exceeding 200 Gb/s. As unit intervals (UI) shrink, even a few picoseconds of P/N skew can degrade serializer-deserializer (SerDes) performance. Traditional methods for quantifying skew fall short in capturing its impact. We introduce two new metrics: 1) Skew-Induced Insertion Loss Deviation (SILD) and 2) its complementary Figure of Merit (FOM_SILD), analytically developed to assess P/N skew effects. Measured S-parameters confirm FOM_SILD reciprocity, while simulations of 224G PAM4 SerDes show strong correlation with bit error rate (BER) trends. This approach offers a robust framework for analyzing skew in next-generation ultra-high-speed interconnects.

Fast PDN Impedance Prediction Using Deep Learning

Modeling and simulating a power distribution network (PDN) for printed circuit boards (PCBs) with irregular board shapes and multi-layer stackup is computationally inefficient using full-wave simulations. This paper presents a new concept of using deep learning for PDN impedance prediction. A boundary element method (BEM) is applied to efficiently calculate the impedance for arbitrary board shape and stackup. Then over one million boards with different shapes, stackup, IC location, and decap placement are randomly generated to train a deep neural network (DNN). The trained DNN can predict the impedance accurately for new board configurations that have not been used for training. The consumed time using the trained DNN is only 0.1 seconds, which is over 100 times faster than the BEM method and 5000 times faster than full-wave simulations.
