Invariant Extended Kalman Filtering for Human Motion Estimation with Imperfect Sensor Placement

This paper introduces a new invariant extended Kalman filter design that produces real-time state estimates and rapid error convergence for the estimation of the human body movement even in the presence of sensor misalignment and initial state estimation errors. The filter fuses the data returned by an inertial measurement unit (IMU) attached to the body (e.g., pelvis or chest) and a virtual measurement of zero stance-foot velocity (i.e., leg odometry). The key novelty of the proposed filter lies in that its process model meets the group affine property while the filter explicitly addresses the IMU placement error by formulating its stochastic process model as Brownian motions and incorporating the error in the leg odometry. Although the measurement model is imperfect (i.e., it does not possess an invariant observation form) and thus its linearization relies on the state estimate, experimental results demonstrate fast convergence of the proposed filter (within 0.2 seconds) during squatting motions even under significant IMU placement inaccuracy and initial estimation errors.

Design and Evaluation of an Invariant Extended Kalman Filter for Trunk Motion Estimation with Sensor Misalignment

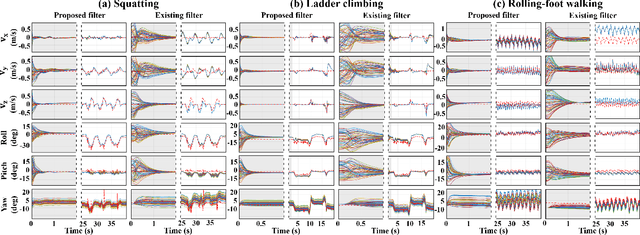

Understanding human motion is of critical importance for health monitoring and control of assistive robots, yet many human kinematic variables cannot be directly or accurately measured by wearable sensors. In recent years, invariant extended Kalman filtering (InEKF) has shown a great potential in nonlinear state estimation, but its applications to human poses new challenges, including imperfect placement of wearable sensors and inaccurate measurement models. To address these challenges, this paper proposes an augmented InEKF design which considers the misalignment of the inertial sensor at the trunk as part of the states and preserves the group affine property for the process model. Personalized lower-extremity forward kinematic models are built and employed as the measurement model for the augmented InEKF. Observability analysis for the new InEKF design is presented. The filter is evaluated with three subjects in squatting, rolling-foot walking, and ladder-climbing motions. Experimental results validate the superior performance of the proposed InEKF over the state-of-the-art InEKF. Improved accuracy and faster convergence in estimating the velocity and orientation of human, in all three motions, are achieved despite the significant initial estimation errors and the uncertainties associated with the forward kinematic measurement model.
