Hardware-Robust In-RRAM-Computing for Object Detection

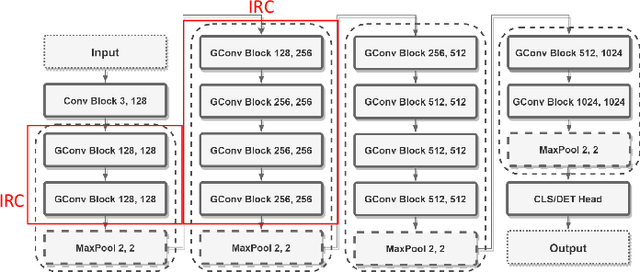

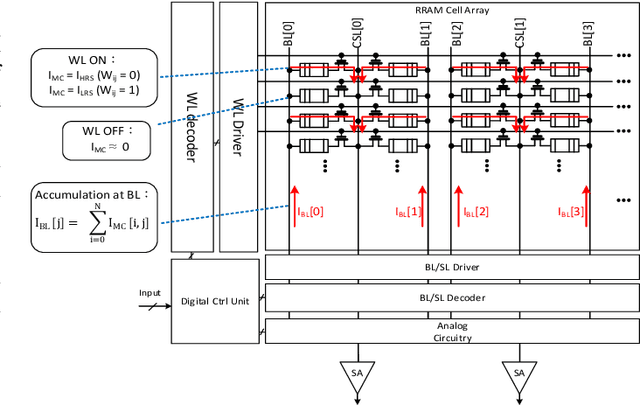

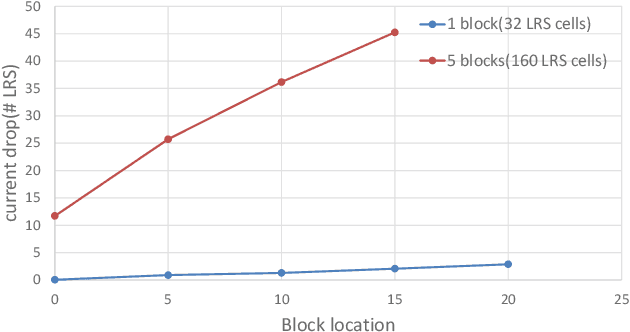

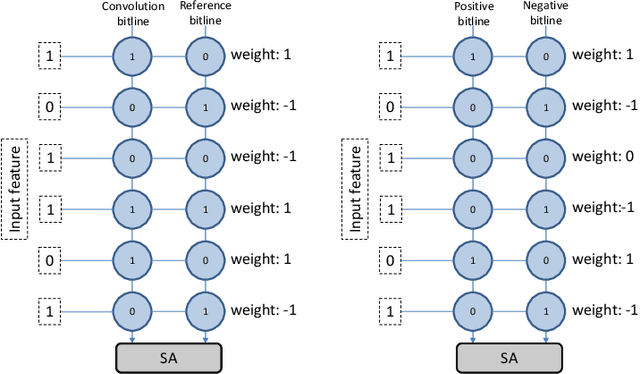

In-memory computing is becoming a popular architecture for deep-learning hardware accelerators recently due to its highly parallel computing, low power, and low area cost. However, in-RRAM computing (IRC) suffered from large device variation and numerous nonideal effects in hardware. Although previous approaches including these effects in model training successfully improved variation tolerance, they only considered part of the nonideal effects and relatively simple classification tasks. This paper proposes a joint hardware and software optimization strategy to design a hardware-robust IRC macro for object detection. We lower the cell current by using a low word-line voltage to enable a complete convolution calculation in one operation that minimizes the impact of nonlinear addition. We also implement ternary weight mapping and remove batch normalization for better tolerance against device variation, sense amplifier variation, and IR drop problem. An extra bias is included to overcome the limitation of the current sensing range. The proposed approach has been successfully applied to a complex object detection task with only 3.85\% mAP drop, whereas a naive design suffers catastrophic failure under these nonideal effects.

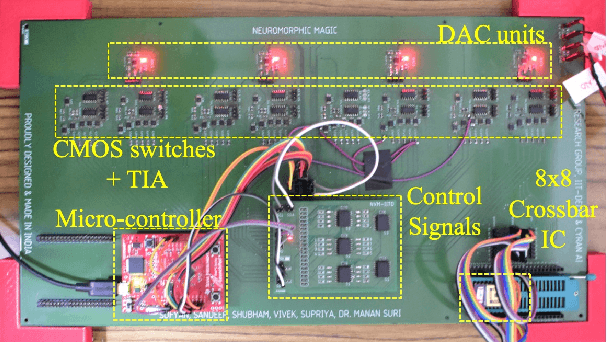

Methodology for Realizing VMM with Binary RRAM Arrays: Experimental Demonstration of Binarized-ADALINE Using OxRAM Crossbar

In this paper, we present an efficient hardware mapping methodology for realizing vector matrix multiplication (VMM) on resistive memory (RRAM) arrays. Using the proposed VMM computation technique, we experimentally demonstrate a binarized-ADALINE (Adaptive Linear) classifier on an OxRAM crossbar. An 8x8 OxRAM crossbar with Ni/3-nm HfO2/7 nm Al-doped-TiO2/TiN device stack is used. Weight training for the binarized-ADALINE classifier is performed ex-situ on UCI cancer dataset. Post weight generation the OxRAM array is carefully programmed to binary weight-states using the proposed weight mapping technique on a custom-built testbench. Our VMM powered binarized-ADALINE network achieves a classification accuracy of 78% in simulation and 67% in experiments. Experimental accuracy was found to drop mainly due to crossbar inherent sneak-path issues and RRAM device programming variability.

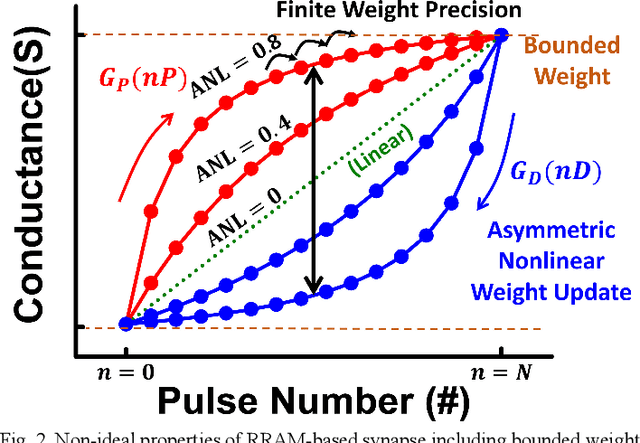

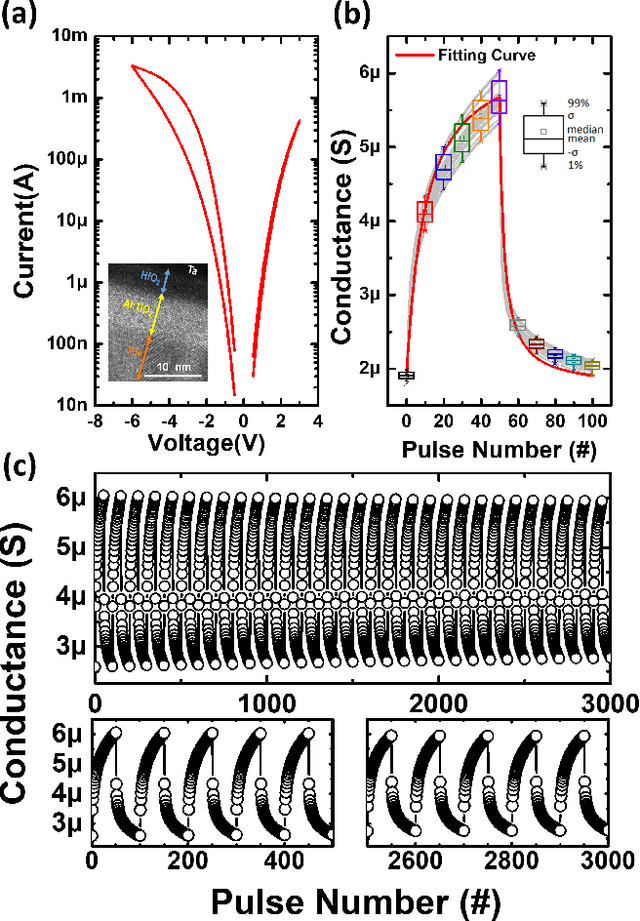

Mitigating Asymmetric Nonlinear Weight Update Effects in Hardware Neural Network based on Analog Resistive Synapse

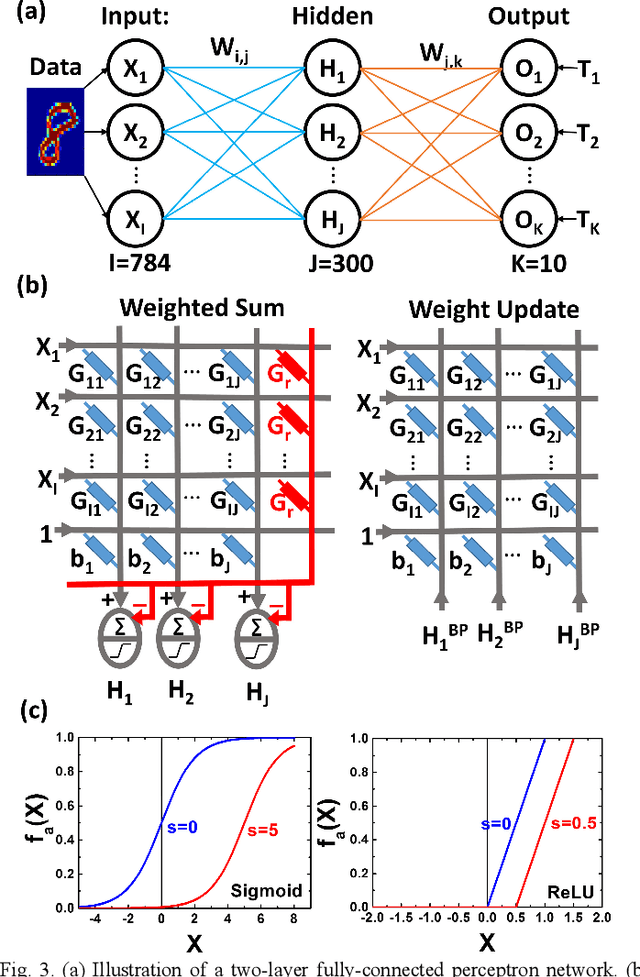

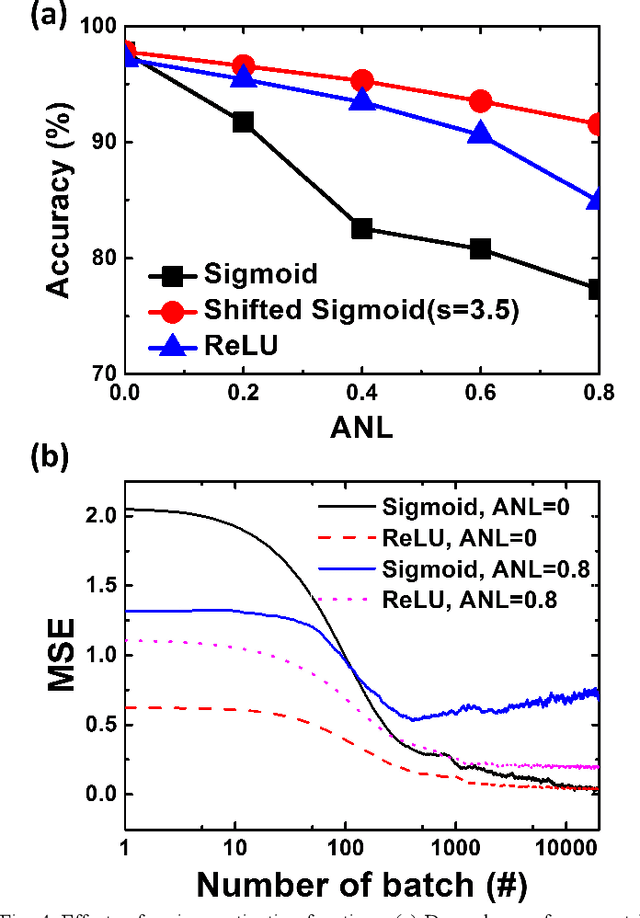

Asymmetric nonlinear weight update is considered as one of the major obstacles for realizing hardware neural networks based on analog resistive synapses because it significantly compromises the online training capability. This paper provides new solutions to this critical issue through co-optimization with the hardware-applicable deep-learning algorithms. New insights on engineering activation functions and a threshold weight update scheme effectively suppress the undesirable training noise induced by inaccurate weight update. We successfully trained a two-layer perceptron network online and improved the classification accuracy of MNIST handwritten digit dataset to 87.8/94.8% by using 6-bit/8-bit analog synapses, respectively, with extremely high asymmetric nonlinearity.
