AI-Driven Optimization of Wave-Controlled Reconfigurable Intelligent Surfaces

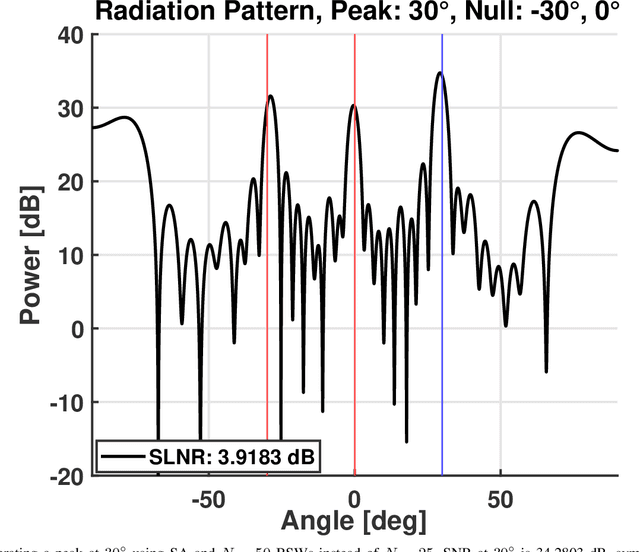

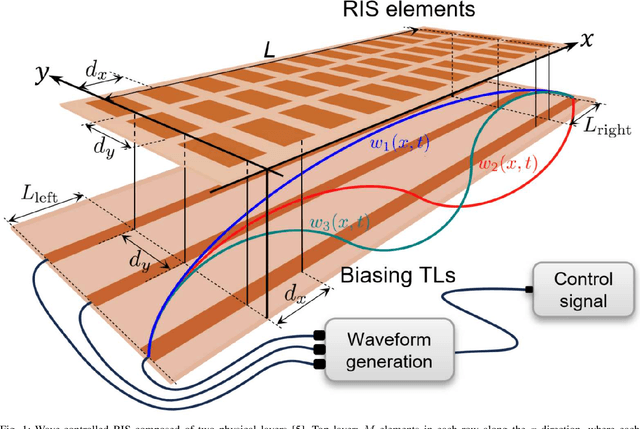

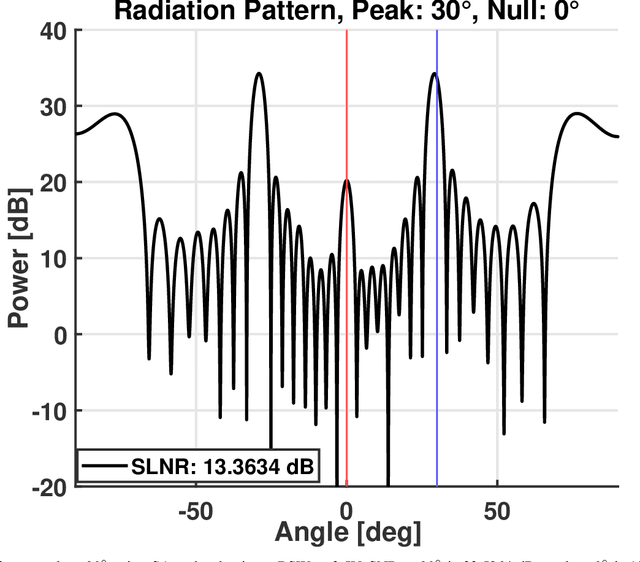

A promising type of Reconfigurable Intelligent Surface (RIS) employs tunable control of its varactors using biasing transmission lines below the RIS reflecting elements. Biasing standing waves (BSWs) are excited by a time-periodic signal and sampled at each RIS element to create a desired biasing voltage and control the reflection coefficients of the elements. A simple rectifier can be used to sample the voltages and capture the peaks of the BSWs over time. Like other types of RIS, attempting to model and accurately configure a wave-controlled RIS is extremely challenging due to factors such as device non-linearities, frequency dependence, element coupling, etc., and thus significant differences will arise between the actual and assumed performance. An alternative approach to solving this problem is data-driven: Using training data obtained by sampling the reflected radiation pattern of the RIS for a set of BSWs, a neural network (NN) is designed to create an input-output map between the BSW amplitudes and the resulting sampled radiation pattern. This is the approach discussed in this paper. In the proposed approach, the NN is optimized using a genetic algorithm (GA) to minimize the error between the predicted and measured radiation patterns. The BSW amplitudes are then designed via Simulated Annealing (SA) to optimize a signal-to-leakage-plus-noise ratio measure by iteratively forward-propagating the BSW amplitudes through the NN and using its output as feedback to determine convergence. The resulting optimal solutions are stored in a lookup table to be used both as settings to instantly configure the RIS and as a basis for determining more complex radiation patterns.

Wave-Controlled Metasurface-Based Reconfigurable Intelligent Surfaces

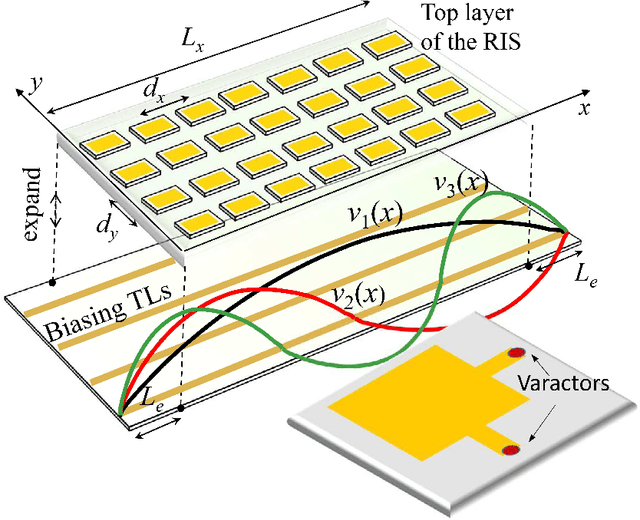

Reconfigurable Intelligent Surfaces (RISs) are programmable metasurfaces that can adaptively steer received electromagnetic energy in desired directions by employing controllable phase shifting cells. Among other uses, an RIS can modify the propagation environment in order to provide wireless access to user locations that are not otherwise reachable by a base station. Alternatively, an RIS can steer the waves away from particular locations in space, to eliminate interference and allow for co-existence of the wireless network with other types of fixed wireless services (e.g., radars, unlicensed radio bands, etc.). The novel approach in this work is a wave-controlled architecture that properly accounts for the maximum possible change in the local reflection phase that can be achieved by adjacent RIS elements. It obviates the need for dense wiring and signal paths that would be required for individual control of every RIS element, and thus offers a substantial reduction in the required hardware. We specify this wave-controlled RIS architecture in detail and discuss signal processing and machine learning methods that exploit it in both point-to-point and multicell MIMO systems. Such implementations can lead to a dramatic improvement in next-generation wireless, radar, and navigation systems where RIS finds wide applications. They have the potential to improve the efficiency of spectrum utilization and coexistence by orders of magnitude.
