ViTAL: Vision-Based Terrain-Aware Locomotion for Legged Robots

This work is on vision-based planning strategies for legged robots that separate locomotion planning into foothold selection and pose adaptation. Current pose adaptation strategies optimize the robot's body pose relative to given footholds. If these footholds are not reached, the robot may end up in a state with no reachable safe footholds. Therefore, we present a Vision-Based Terrain-Aware Locomotion (ViTAL) strategy that consists of novel pose adaptation and foothold selection algorithms. ViTAL introduces a different paradigm in pose adaptation that does not optimize the body pose relative to given footholds, but the body pose that maximizes the chances of the legs in reaching safe footholds. ViTAL plans footholds and poses based on skills that characterize the robot's capabilities and its terrain-awareness. We use the 90 kg HyQ and 140 kg HyQReal quadruped robots to validate ViTAL, and show that they are able to climb various obstacles including stairs, gaps, and rough terrains at different speeds and gaits. We compare ViTAL with a baseline strategy that selects the robot pose based on given selected footholds, and show that ViTAL outperforms the baseline.

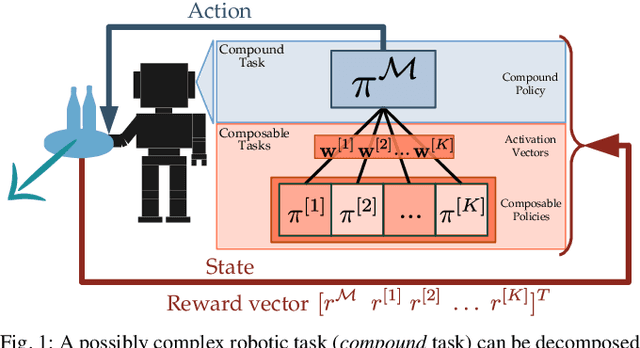

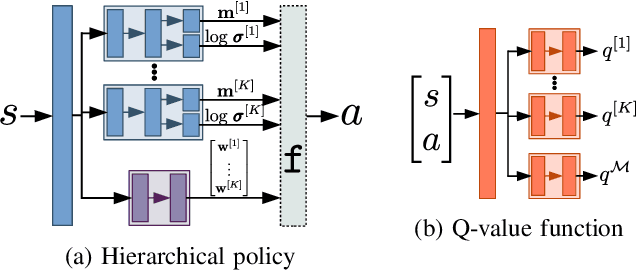

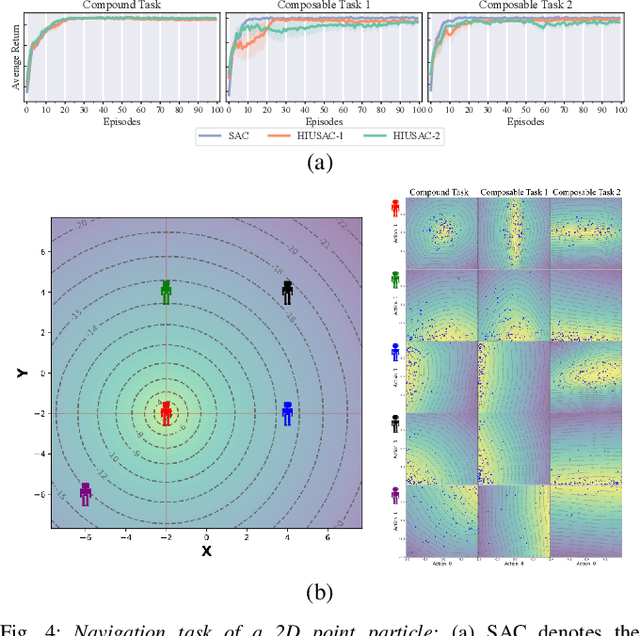

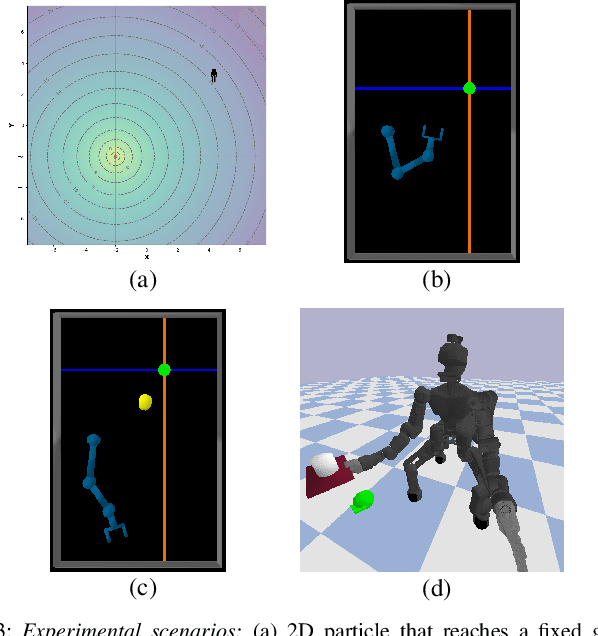

Hierarchical Reinforcement Learning for Concurrent Discovery of Compound and Composable Policies

A common strategy to deal with the expensive reinforcement learning (RL) of complex tasks is to decompose them into a collection of subtasks that are usually simpler to learn as well as reusable for new problems. However, when a robot learns the policies for these subtasks, common approaches treat every policy learning process separately. Therefore, all these individual (composable) policies need to be learned before tackling the learning process of the complex task through policies composition. Such composition of individual policies is usually performed sequentially, which is not suitable for tasks that require to perform the subtasks concurrently. In this paper, we propose to combine a set of composable Gaussian policies corresponding to these subtasks using a set of activation vectors, resulting in a complex Gaussian policy that is a function of the means and covariances matrices of the composable policies. Moreover, we propose an algorithm for learning both compound and composable policies within the same learning process by exploiting the off-policy data generated from the compound policy. The algorithm is built on a maximum entropy RL approach to favor exploration during the learning process. The results of the experiments show that the experience collected with the compound policy permits not only to solve the complex task but also to obtain useful composable policies that successfully perform in their respective tasks. Supplementary videos and code are available at https://sites.google.com/view/hrl-concurrent-discovery .
