On the Effect of Sampling-Time Jitter

This brief, aimed at practitioners, offers an analysis of the effect of sampling-time jitter, i. e., the error produced by execution-time inaccuracies. We propose reinterpreting jitter-afflicted linear time-invariant systems through equivalent jitter-free analogs. By constructing a perceived system that absorbs the effects of timing perturbations into its dynamics, we find an affine scaling of jitter. We examine both measurement and implementation scenarios, demonstrating that the presence of jitter effectively scales the system matrices. Moreover, we observe that, in the Laplace domain, jitter can be interpreted as a frequency scaling.

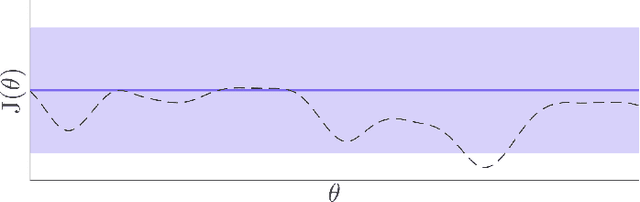

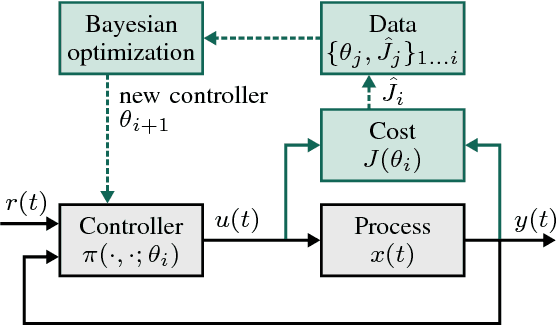

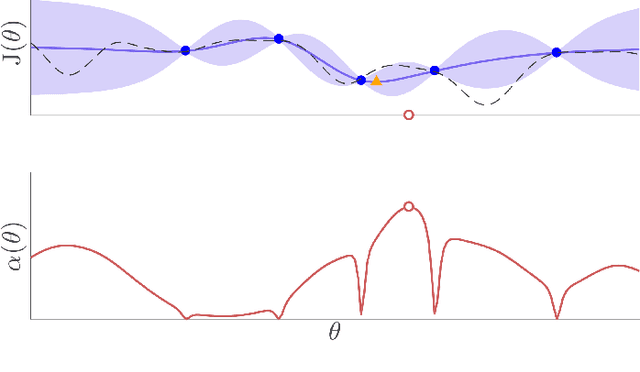

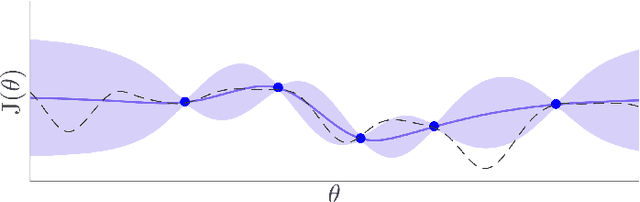

Data-efficient Auto-tuning with Bayesian Optimization: An Industrial Control Study

Bayesian optimization is proposed for automatic learning of optimal controller parameters from experimental data. A probabilistic description (a Gaussian process) is used to model the unknown function from controller parameters to a user-defined cost. The probabilistic model is updated with data, which is obtained by testing a set of parameters on the physical system and evaluating the cost. In order to learn fast, the Bayesian optimization algorithm selects the next parameters to evaluate in a systematic way, for example, by maximizing information gain about the optimum. The algorithm thus iteratively finds the globally optimal parameters with only few experiments. Taking throttle valve control as a representative industrial control example, the proposed auto-tuning method is shown to outperform manual calibration: it consistently achieves better performance with a low number of experiments. The proposed auto-tuning framework is flexible and can handle different control structures and objectives.
