Angular Estimation Comparison with ISAC PoC

The introduction of Integrated Sensing and Communications (ISAC) in cellular systems is not expected to result in a shift away from the popular choice of cost- and energy-efficient analog or hybrid beamforming structures. However, this comes at the cost of limiting the angular capabilities to a confined space per acquisitions. Thus, as a prerequisite for the successful implementation of numerous ISAC use cases, the need for an optimal angular estimation of targets and their separation based on the minimal number of angular samples arises. In this work, different approaches for angular estimation based on a minimal, DFT-based set of angular samples are evaluated. The samples are acquired through sweeping multiple beams of an ISAC proof of concept (PoC) in the industrial scenario of the ARENA2036. The study's findings indicate that interpolation approaches are more effective for generalizing across different types of angular scenarios. While the orthogonal matching pursuit (OMP) approach exhibits the most accurate estimation for a single, strong and clearly discriminable target, the DFT-based interpolation approach demonstrates the best overall estimation performance.

Optimal Azimuth Sampling and Interpolation for Bistatic ISAC Setups

A key challenge in future 6G Integrated Sensing and Communications (ISAC) networks is to define the angular operations of transmitter and receiver, i.e., the sampling task of the angular domains, to acquire information about the environment. In this work we extend previous analysis for optimal angular sampling of monostatic setups to two-dimensional bistatic deployments, that are as important as the former in future ISAC cellular scenarios. Our approach overcomes the limitations of suboptimal prior art sampling and interpolation techniques, such as spline interpolation. We demonstrate that separating azimuth operations of the two transmit and receive arrays is optimal to sample the angular domain in an array-specific normalized angular frequency (NAF). This allows us to derive a loss-less reconstruction of the angular domain, enabling a more efficient and accurate sampling strategy for bistatic sensing applications compared to legacy approaches. As demonstrated by different Monte Carlo experiments, our approach enables future bistatic ISAC deployments with better performance compared to the other suboptimal solutions.

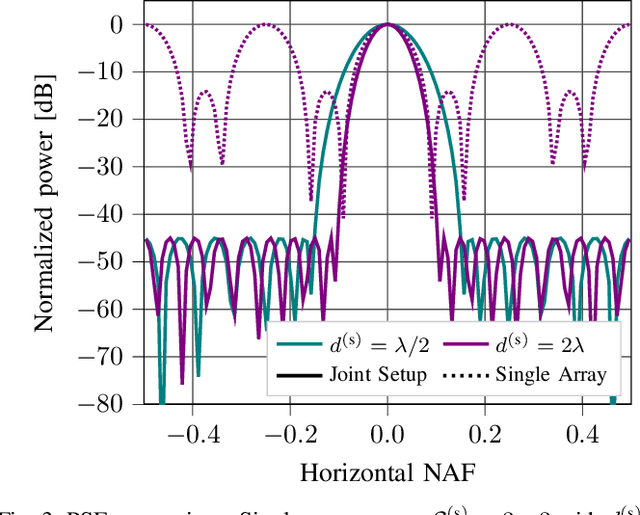

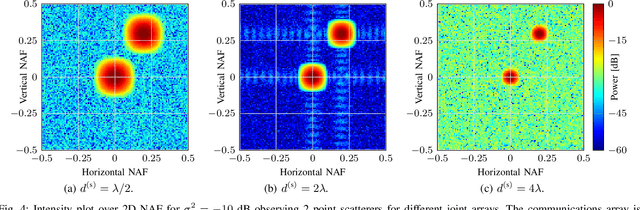

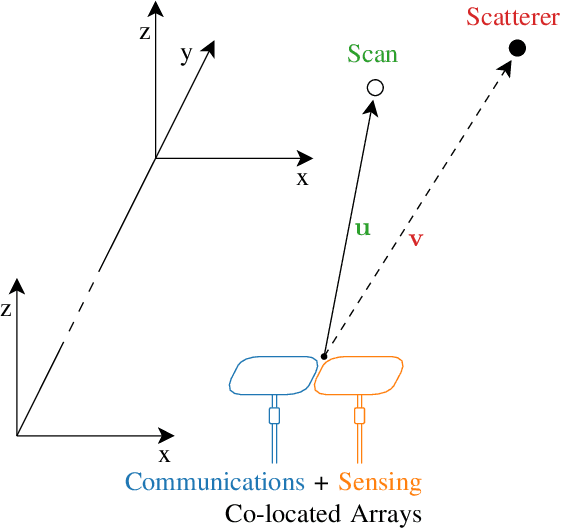

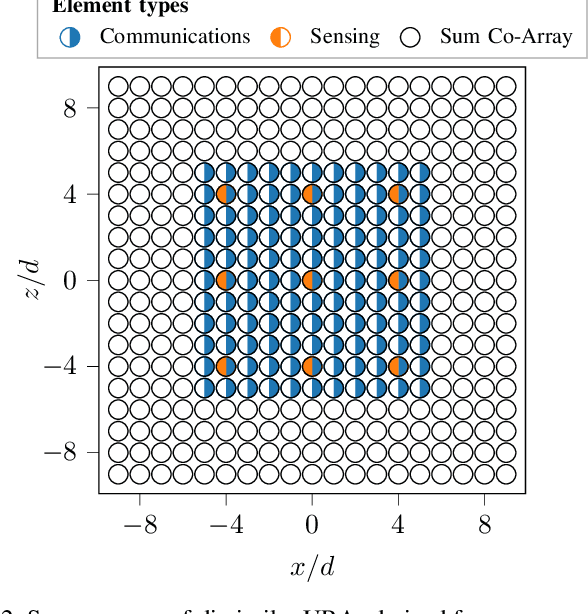

Antenna Array Design for Mono-Static ISAC

Mono-static sensing operations in Integrated Sensing and Communications (ISAC) require joint beamforming operations between transmitter and receiver, according to all the considerations already done in the radar literature about coarray theory. In contrast to pure radar systems, ISAC requires to fulfill communications tasks and to retain the corresponding design constraints for at least one half-duplex array. This shifts the available degrees of freedom to the design of the second half-duplex array, that completes the mono-static sensing setup of the ISAC system. Therefore, it is necessary to translate the analysis from the radar literature for the design of sparse arrays to the new ISAC paradigm in order to provision such systems. Accordingly, we propose a model to evaluate the angular capabilities of an ISAC setup, constrained to the shape of the communications array and its topology requirements. Our analysis is validated by simulation experiments, confirming the value of our model in providing system designers with a tool to drastically improve the trade-off between angular capabilities for sensing and the cost of the deployed hardware. Finally, we discuss possible enhancements to the cellular standards to fully leverage the angular capabilities of such mono-static ISAC systems.
