Semiconductor Wafer Map Defect Classification with Tiny Vision Transformers

Semiconductor wafer defect classification is critical for ensuring high precision and yield in manufacturing. Traditional CNN-based models often struggle with class imbalances and recognition of the multiple overlapping defect types in wafer maps. To address these challenges, we propose ViT-Tiny, a lightweight Vision Transformer (ViT) framework optimized for wafer defect classification. Trained on the WM-38k dataset. ViT-Tiny outperforms its ViT-Base counterpart and state-of-the-art (SOTA) models, such as MSF-Trans and CNN-based architectures. Through extensive ablation studies, we determine that a patch size of 16 provides optimal performance. ViT-Tiny achieves an F1-score of 98.4%, surpassing MSF-Trans by 2.94% in four-defect classification, improving recall by 2.86% in two-defect classification, and increasing precision by 3.13% in three-defect classification. Additionally, it demonstrates enhanced robustness under limited labeled data conditions, making it a computationally efficient and reliable solution for real-world semiconductor defect detection.

Wafer Map Defect Classification Using Autoencoder-Based Data Augmentation and Convolutional Neural Network

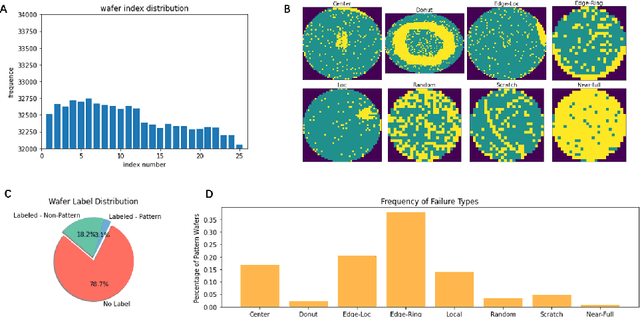

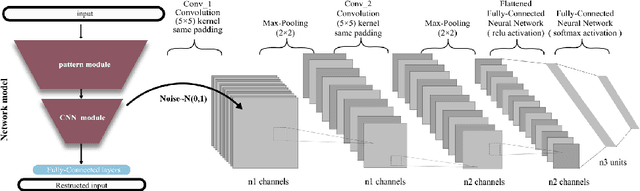

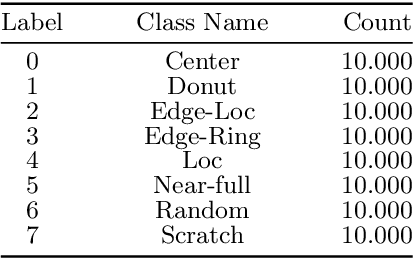

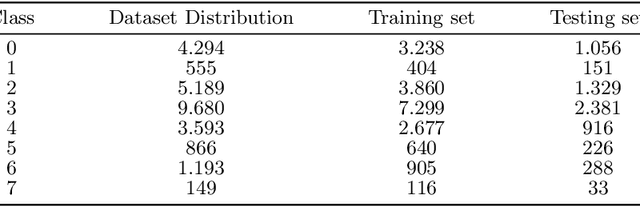

In semiconductor manufacturing, wafer defect maps (WDMs) play a crucial role in diagnosing issues and enhancing process yields by revealing critical defect patterns. However, accurately categorizing WDM defects presents significant challenges due to noisy data, unbalanced defect classes, and the complexity of failure modes. To address these challenges, this study proposes a novel method combining a self-encoder-based data augmentation technique with a convolutional neural network (CNN). By introducing noise into the latent space, the self-encoder enhances data diversity and mitigates class imbalance, thereby improving the model's generalization capabilities. The augmented dataset is subsequently used to train the CNN, enabling it to deliver precise classification of both common and rare defect patterns. Experimental results on the WM-811K dataset demonstrate that the proposed method achieves a classification accuracy of 98.56%, surpassing Random Forest, SVM, and Logistic Regression by 19%, 21%, and 27%, respectively. These findings highlight the robustness and effectiveness of the proposed approach, offering a reliable solution for wafer defect detection and classification.

Wafer2Spike: Spiking Neural Network for Wafer Map Pattern Classification

In integrated circuit design, the analysis of wafer map patterns is critical to improve yield and detect manufacturing issues. We develop Wafer2Spike, an architecture for wafer map pattern classification using a spiking neural network (SNN), and demonstrate that a well-trained SNN achieves superior performance compared to deep neural network-based solutions. Wafer2Spike achieves an average classification accuracy of 98\% on the WM-811k wafer benchmark dataset. It is also superior to existing approaches for classifying defect patterns that are underrepresented in the original dataset. Wafer2Spike achieves this improved precision with great computational efficiency.

Iterative Cluster Harvesting for Wafer Map Defect Patterns

Unsupervised clustering of wafer map defect patterns is challenging because the appearance of certain defect patterns varies significantly. This includes changing shape, location, density, and rotation of the defect area on the wafer. We present a harvesting approach, which can cluster even challenging defect patterns of wafer maps well. Our approach makes use of a well-known, three-step procedure: feature extraction, dimension reduction, and clustering. The novelty in our approach lies in repeating dimensionality reduction and clustering iteratively while filtering out one cluster per iteration according to its silhouette score. This method leads to an improvement of clustering performance in general and is especially useful for difficult defect patterns. The low computational effort allows for a quick assessment of large datasets and can be used to support manual labeling efforts. We benchmark against related approaches from the literature and show improved results on a real-world industrial dataset.

Advancing SEM Based Nano-Scale Defect Analysis in Semiconductor Manufacturing for Advanced IC Nodes

In this research, we introduce a unified end-to-end Automated Defect Classification-Detection-Segmentation (ADCDS) framework for classifying, detecting, and segmenting multiple instances of semiconductor defects for advanced nodes. This framework consists of two modules: (a) a defect detection module, followed by (b) a defect segmentation module. The defect detection module employs Deformable DETR to aid in the classification and detection of nano-scale defects, while the segmentation module utilizes BoxSnake. BoxSnake facilitates box-supervised instance segmentation of nano-scale defects, supported by the former module. This simplifies the process by eliminating the laborious requirement for ground-truth pixel-wise mask annotation by human experts, which is typically associated with training conventional segmentation models. We have evaluated the performance of our ADCDS framework using two distinct process datasets from real wafers, as ADI and AEI, specifically focusing on Line-space patterns. We have demonstrated the applicability and significance of our proposed methodology, particularly in the nano-scale segmentation and generation of binary defect masks, using the challenging ADI SEM dataset where ground-truth pixelwise segmentation annotations were unavailable. Furthermore, we have presented a comparative analysis of our proposed framework against previous approaches to demonstrate its effectiveness. Our proposed framework achieved an overall mAP@IoU0.5 of 72.19 for detection and 78.86 for segmentation on the ADI dataset. Similarly, for the AEI dataset, these metrics were 90.38 for detection and 95.48 for segmentation. Thus, our proposed framework effectively fulfils the requirements of advanced defect analysis while addressing significant constraints.

Machine Learning Techniques for Identifying the Defective Patterns in Semiconductor Wafer Maps: A Survey, Empirical, and Experimental Evaluations

This survey paper offers a comprehensive review of methodologies utilizing machine learning (ML) techniques for identifying wafer defects in semiconductor manufacturing. Despite the growing body of research demonstrating the effectiveness of ML in wafer defect identification, there is a noticeable absence of comprehensive reviews on this subject. This survey attempts to fill this void by amalgamating available literature and providing an in-depth analysis of the advantages, limitations, and potential applications of various ML algorithms in the realm of wafer defect detection. An innovative taxonomy of methodologies that we present provides a detailed classification of algorithms into more refined categories and techniques. This taxonomy follows a four-tier structure, starting from broad methodology categories and ending with specific sub-techniques. It aids researchers in comprehending the complex relationships between different algorithms and their techniques. We employ a rigorous empirical and experimental evaluation to rank these varying techniques. For the empirical evaluation, we assess techniques based on a set of four criteria. The experimental evaluation ranks the algorithms employing the same sub-techniques, techniques, sub-categories, and categories. This integration of a multi-layered taxonomy, empirical evaluations, and comparative experiments provides a detailed and holistic understanding of ML techniques and algorithms for identifying wafer defects. This approach guides researchers towards making more informed decisions in their work. Additionally, the paper illuminates the future prospects of ML techniques for wafer defect identification, underscoring potential advancements and opportunities for further research in this field

Efficient Mixed-Type Wafer Defect Pattern Recognition Using Compact Deformable Convolutional Transformers

Manufacturing wafers is an intricate task involving thousands of steps. Defect Pattern Recognition (DPR) of wafer maps is crucial to find the root cause of the issue and further improving the yield in the wafer foundry. Mixed-type DPR is much more complicated compared to single-type DPR due to varied spatial features, the uncertainty of defects, and the number of defects present. To accurately predict the number of defects as well as the types of defects, we propose a novel compact deformable convolutional transformer (DC Transformer). Specifically, DC Transformer focuses on the global features present in the wafer map by virtue of learnable deformable kernels and multi-head attention to the global features. The proposed method succinctly models the internal relationship between the wafer maps and the defects. DC Transformer is evaluated on a real dataset containing 38 defect patterns. Experimental results show that DC Transformer performs exceptionally well in recognizing both single and mixed-type defects. The proposed method outperforms the current state of the models by a considerable margin

An Embarrassingly Simple Approach for Wafer Feature Extraction and Defect Pattern Recognition

Identifying defect patterns in a wafer map during manufacturing is crucial to find the root cause of the underlying issue and provides valuable insights on improving yield in the foundry. Currently used methods use deep neural networks to identify the defects. These methods are generally very huge and have significant inference time. They also require GPU support to efficiently operate. All these issues make these models not fit for on-line prediction in the manufacturing foundry. In this paper, we propose an extremely simple yet effective technique to extract features from wafer images. The proposed method is extremely fast, intuitive, and non-parametric while being explainable. The experiment results show that the proposed pipeline outperforms conventional deep learning models. Our feature extraction requires no training or fine-tuning while preserving the relative shape and location of data points as revealed by our interpretability analysis.

Mixed-Type Wafer Classification For Low Memory Devices Using Knowledge Distillation

Manufacturing wafers is an intricate task involving thousands of steps. Defect Pattern Recognition (DPR) of wafer maps is crucial for determining the root cause of production defects, which may further provide insight for yield improvement in wafer foundry. During manufacturing, various defects may appear standalone in the wafer or may appear as different combinations. Identifying multiple defects in a wafer is generally harder compared to identifying a single defect. Recently, deep learning methods have gained significant traction in mixed-type DPR. However, the complexity of defects requires complex and large models making them very difficult to operate on low-memory embedded devices typically used in fabrication labs. Another common issue is the unavailability of labeled data to train complex networks. In this work, we propose an unsupervised training routine to distill the knowledge of complex pre-trained models to lightweight deployment-ready models. We empirically show that this type of training compresses the model without sacrificing accuracy despite being up to 10 times smaller than the teacher model. The compressed model also manages to outperform contemporary state-of-the-art models.

A novel approach for wafer defect pattern classification based on topological data analysis

In semiconductor manufacturing, wafer map defect pattern provides critical information for facility maintenance and yield management, so the classification of defect patterns is one of the most important tasks in the manufacturing process. In this paper, we propose a novel way to represent the shape of the defect pattern as a finite-dimensional vector, which will be used as an input for a neural network algorithm for classification. The main idea is to extract the topological features of each pattern by using the theory of persistent homology from topological data analysis (TDA). Through some experiments with a simulated dataset, we show that the proposed method is faster and much more efficient in training with higher accuracy, compared with the method using convolutional neural networks (CNN) which is the most common approach for wafer map defect pattern classification. Moreover, our method outperforms the CNN-based method when the number of training data is not enough and is imbalanced.
