$\texttt{deep21}$: a Deep Learning Method for 21cm Foreground Removal

Oct 29, 2020
T. Lucas Makinen, Lachlan Lancaster, Francisco Villaescusa-Navarro, Peter Melchior, Shirley Ho, Laurence Perreault-Levasseur, David N. Spergel


Share this with someone who'll enjoy it:

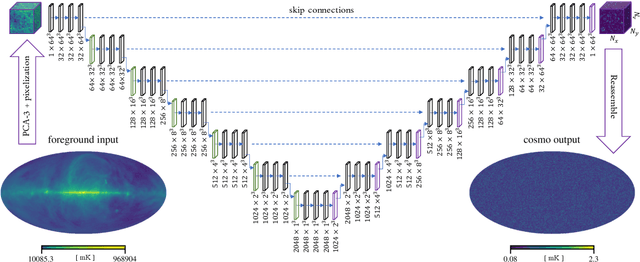

We seek to remove foreground contaminants from 21cm intensity mapping observations. We demonstrate that a deep convolutional neural network (CNN) with a UNet architecture and three-dimensional convolutions, trained on simulated observations, can effectively separate frequency and spatial patterns of the cosmic neutral hydrogen (HI) signal from foregrounds in the presence of noise. Cleaned maps recover cosmological clustering statistics within 10% at all relevant angular scales and frequencies. This amounts to a reduction in prediction variance of over an order of magnitude on small angular scales ($\ell > 300$), and improved accuracy for small radial scales ($k_{\parallel} > 0.17\ \rm h\ Mpc^{-1})$ compared to standard Principal Component Analysis (PCA) methods. We estimate posterior confidence intervals for the network's prediction by training an ensemble of UNets. Our approach demonstrates the feasibility of analyzing 21cm intensity maps, as opposed to derived summary statistics, for upcoming radio experiments, as long as the simulated foreground model is sufficiently realistic. We provide the code used for this analysis on $\href{https://github.com/tlmakinen/deep21}{\rm GitHub}$, as well as a browser-based tutorial for the experiment and UNet model via the accompanying $\href{http://bit.ly/deep21-colab}{\rm Colab\ notebook}$.

* To be submitted to JCAP. 28 pages, 11 figures
