Interpretable Time-series Classification on Few-shot Samples

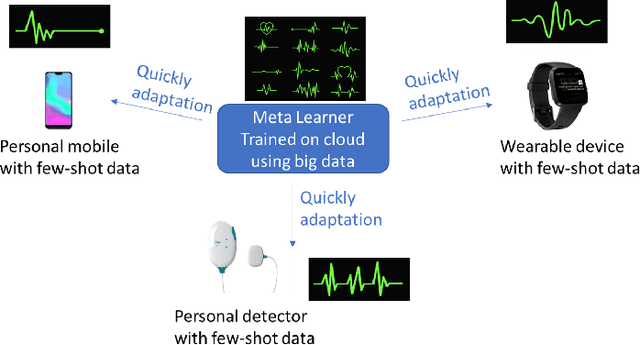

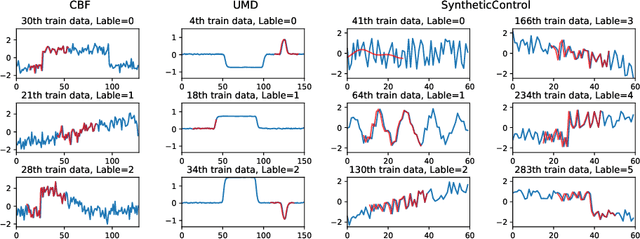

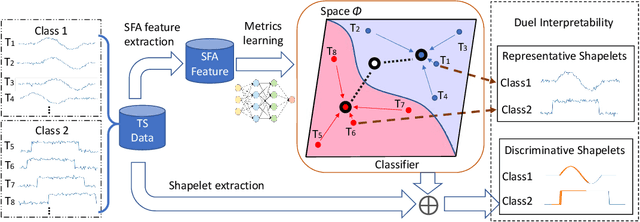

Recent few-shot learning works focus on training a model with prior meta-knowledge to fast adapt to new tasks with unseen classes and samples. However, conventional time-series classification algorithms fail to tackle the few-shot scenario. Existing few-shot learning methods are proposed to tackle image or text data, and most of them are neural-based models that lack interpretability. This paper proposes an interpretable neural-based framework, namely \textit{Dual Prototypical Shapelet Networks (DPSN)} for few-shot time-series classification, which not only trains a neural network-based model but also interprets the model from dual granularity: 1) global overview using representative time series samples, and 2) local highlights using discriminative shapelets. In particular, the generated dual prototypical shapelets consist of representative samples that can mostly demonstrate the overall shapes of all samples in the class and discriminative partial-length shapelets that can be used to distinguish different classes. We have derived 18 few-shot TSC datasets from public benchmark datasets and evaluated the proposed method by comparing with baselines. The DPSN framework outperforms state-of-the-art time-series classification methods, especially when training with limited amounts of data. Several case studies have been given to demonstrate the interpret ability of our model.

Rethinking 1D-CNN for Time Series Classification: A Stronger Baseline

For time series classification task using 1D-CNN, the selection of kernel size is critically important to ensure the model can capture the right scale salient signal from a long time-series. Most of the existing work on 1D-CNN treats the kernel size as a hyper-parameter and tries to find the proper kernel size through a grid search which is time-consuming and is inefficient. This paper theoretically analyses how kernel size impacts the performance of 1D-CNN. Considering the importance of kernel size, we propose a novel Omni-Scale 1D-CNN (OS-CNN) architecture to capture the proper kernel size during the model learning period. A specific design for kernel size configuration is developed which enables us to assemble very few kernel-size options to represent more receptive fields. The proposed OS-CNN method is evaluated using the UCR archive with 85 datasets. The experiment results demonstrate that our method is a stronger baseline in multiple performance indicators, including the critical difference diagram, counts of wins, and average accuracy. We also published the experimental source codes at GitHub (https://github.com/Wensi-Tang/OS-CNN/).
