NetTiSA: Extended IP Flow with Time-series Features for Universal Bandwidth-constrained High-speed Network Traffic Classification

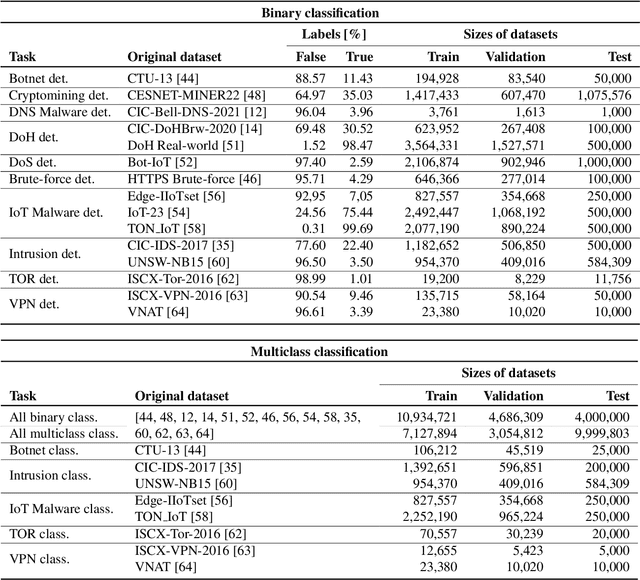

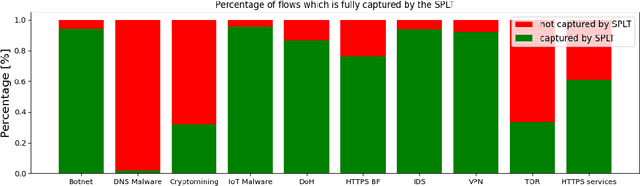

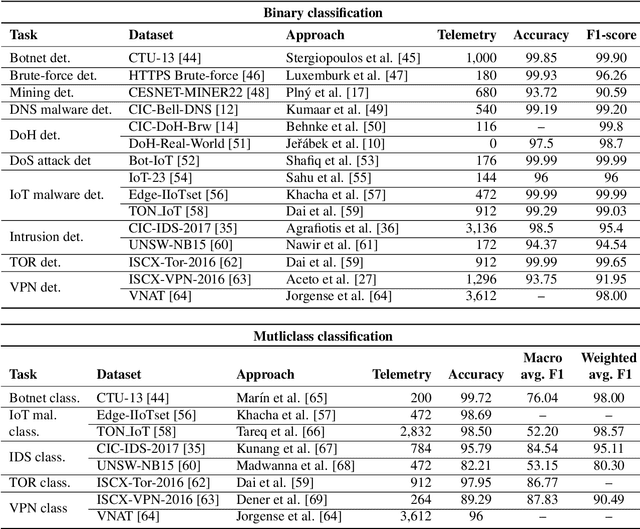

Network traffic monitoring based on IP Flows is a standard monitoring approach that can be deployed to various network infrastructures, even the large IPS-based networks connecting millions of people. Since flow records traditionally contain only limited information (addresses, transport ports, and amount of exchanged data), they are also commonly extended for additional features that enable network traffic analysis with high accuracy. Nevertheless, the flow extensions are often too large or hard to compute, which limits their deployment only to smaller-sized networks. This paper proposes a novel extended IP flow called NetTiSA (Network Time Series Analysed), which is based on the analysis of the time series of packet sizes. By thoroughly testing 25 different network classification tasks, we show the broad applicability and high usability of NetTiSA, which often outperforms the best-performing related works. For practical deployment, we also consider the sizes of flows extended for NetTiSA and evaluate the performance impacts of its computation in the flow exporter. The novel feature set proved universal and deployable to high-speed ISP networks with 100\,Gbps lines; thus, it enables accurate and widespread network security protection.

Network Traffic Classification based on Single Flow Time Series Analysis

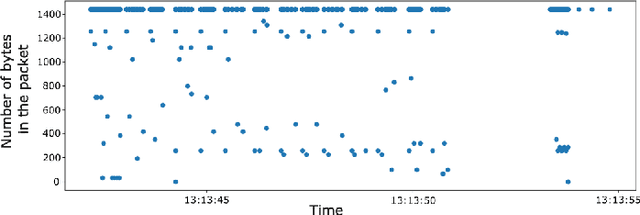

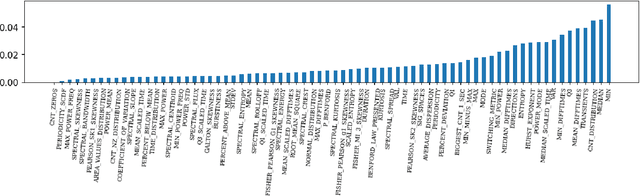

Network traffic monitoring using IP flows is used to handle the current challenge of analyzing encrypted network communication. Nevertheless, the packet aggregation into flow records naturally causes information loss; therefore, this paper proposes a novel flow extension for traffic features based on the time series analysis of the Single Flow Time series, i.e., a time series created by the number of bytes in each packet and its timestamp. We propose 69 universal features based on the statistical analysis of data points, time domain analysis, packet distribution within the flow timespan, time series behavior, and frequency domain analysis. We have demonstrated the usability and universality of the proposed feature vector for various network traffic classification tasks using 15 well-known publicly available datasets. Our evaluation shows that the novel feature vector achieves classification performance similar or better than related works on both binary and multiclass classification tasks. In more than half of the evaluated tasks, the classification performance increased by up to 5\%.

Fine-grained TLS Services Classification with Reject Option

The recent success and proliferation of machine learning and deep learning have provided powerful tools, which are also utilized for encrypted traffic analysis, classification, and threat detection. These methods, neural networks in particular, are often complex and require a huge corpus of training data. Therefore, this paper focuses on collecting a large up-to-date dataset with almost 200 fine-grained service labels and 140 million network flows extended with packet-level metadata. The number of flows is three orders of magnitude higher than in other existing public labeled datasets of encrypted traffic. The number of service labels, which is important to make the problem hard and realistic, is four times higher than in the public dataset with the most class labels. The published dataset is intended as a benchmark for identifying services in encrypted traffic. Service identification can be further extended with the task of "rejecting" unknown services, i.e., the traffic not seen during the training phase. Neural networks offer superior performance for tackling this more challenging problem. To showcase the dataset's usefulness, we implemented a neural network with a multi-modal architecture, which is the state-of-the-art approach, and achieved 97.04% classification accuracy and detected 91.94% of unknown services with 5% false positive rate.
