A Simple Approach to Image Tilt Correction with Self-Attention MobileNet for Smartphones

The main contributions of our work are two-fold. First, we present a Self-Attention MobileNet, called SA-MobileNet Network that can model long-range dependencies between the image features instead of processing the local region as done by standard convolutional kernels. SA-MobileNet contains self-attention modules integrated with the inverted bottleneck blocks of the MobileNetV3 model which results in modeling of both channel-wise attention and spatial attention of the image features and at the same time introduce a novel self-attention architecture for low-resource devices. Secondly, we propose a novel training pipeline for the task of image tilt detection. We treat this problem in a multi-label scenario where we predict multiple angles for a tilted input image in a narrow interval of range 1-2 degrees, depending on the dataset used. This process induces an implicit correlation between labels without any computational overhead of the second or higher-order methods in multi-label learning. With the combination of our novel approach and the architecture, we present state-of-the-art results on detecting the image tilt angle on mobile devices as compared to the MobileNetV3 model. Finally, we establish that SA-MobileNet is more accurate than MobileNetV3 on SUN397, NYU-V1, and ADE20K datasets by 6.42%, 10.51%, and 9.09% points respectively, and faster by at least 4 milliseconds on Snapdragon 750 Octa-core.

On-Device Content Moderation

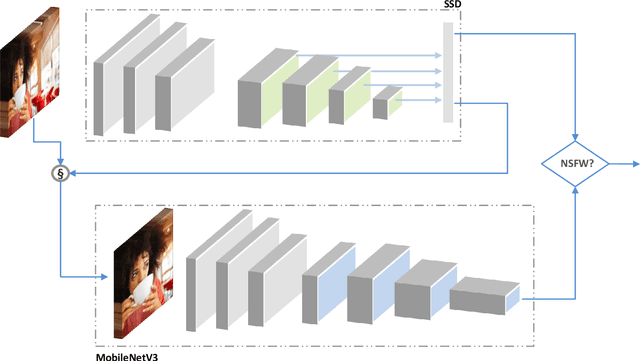

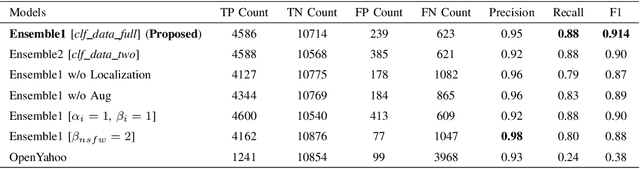

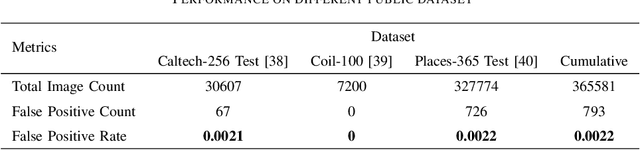

With the advent of internet, not safe for work(NSFW) content moderation is a major problem today. Since,smartphones are now part of daily life of billions of people,it becomes even more important to have a solution which coulddetect and suggest user about potential NSFW content present ontheir phone. In this paper we present a novel on-device solutionfor detecting NSFW images. In addition to conventional porno-graphic content moderation, we have also included semi-nudecontent moderation as it is still NSFW in a large demography.We have curated a dataset comprising of three major categories,namely nude, semi-nude and safe images. We have created anensemble of object detector and classifier for filtering of nudeand semi-nude contents. The solution provides unsafe body partannotations along with identification of semi-nude images. Weextensively tested our proposed solution on several public datasetand also on our custom dataset. The model achieves F1 scoreof 0.91 with 95% precision and 88% recall on our customNSFW16k dataset and 0.92 MAP on NPDI dataset. Moreover itachieves average 0.002 false positive rate on a collection of safeimage open datasets.

ScreenSeg: On-Device Screenshot Layout Analysis

We propose a novel end-to-end solution that performs a Hierarchical Layout Analysis of screenshots and document images on resource constrained devices like mobilephones. Our approach segments entities like Grid, Image, Text and Icon blocks occurring in a screenshot. We provide an option for smart editing by auto highlighting these entities for saving or sharing. Further this multi-level layout analysis of screenshots has many use cases including content extraction, keyword-based image search, style transfer, etc. We have addressed the limitations of known baseline approaches, supported a wide variety of semantically complex screenshots, and developed an approach which is highly optimized for on-device deployment. In addition, we present a novel weighted NMS technique for filtering object proposals. We achieve an average precision of about 0.95 with a latency of around 200ms on Samsung Galaxy S10 Device for a screenshot of 1080p resolution. The solution pipeline is already commercialized in Samsung Device applications i.e. Samsung Capture, Smart Crop, My Filter in Camera Application, Bixby Touch.
