DynaDog+T: A Parametric Animal Model for Synthetic Canine Image Generation

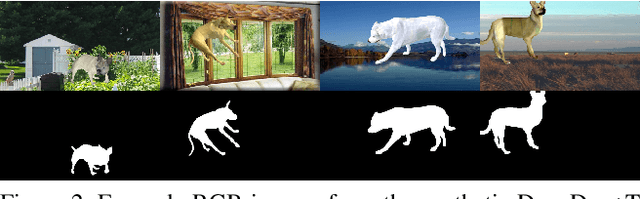

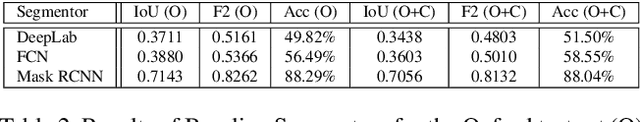

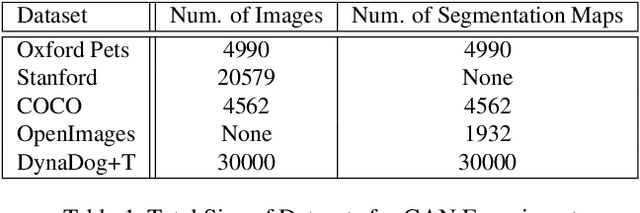

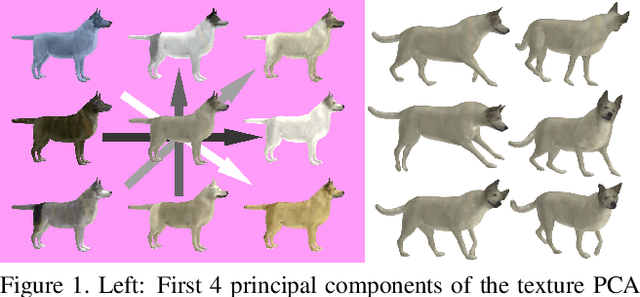

Synthetic data is becoming increasingly common for training computer vision models for a variety of tasks. Notably, such data has been applied in tasks related to humans such as 3D pose estimation where data is either difficult to create or obtain in realistic settings. Comparatively, there has been less work into synthetic animal data and it's uses for training models. Consequently, we introduce a parametric canine model, DynaDog+T, for generating synthetic canine images and data which we use for a common computer vision task, binary segmentation, which would otherwise be difficult due to the lack of available data.

RGBD-Dog: Predicting Canine Pose from RGBD Sensors

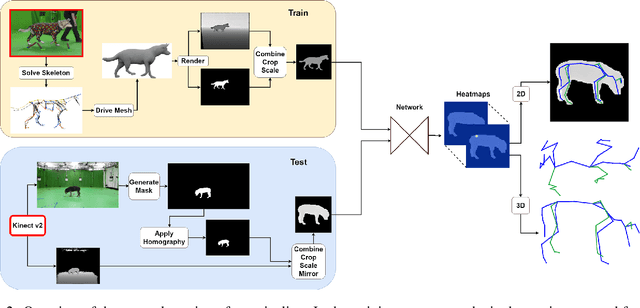

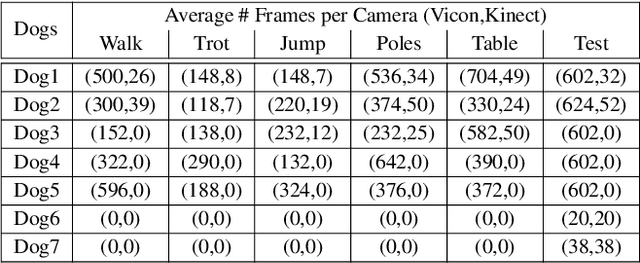

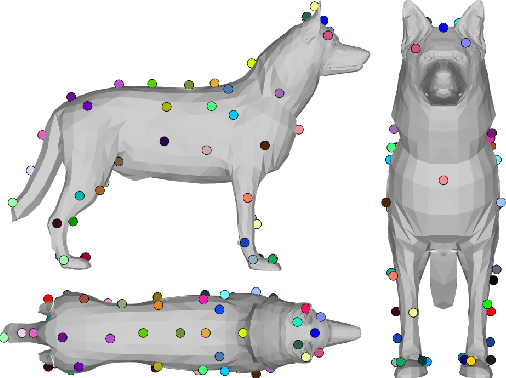

The automatic extraction of animal \reb{3D} pose from images without markers is of interest in a range of scientific fields. Most work to date predicts animal pose from RGB images, based on 2D labelling of joint positions. However, due to the difficult nature of obtaining training data, no ground truth dataset of 3D animal motion is available to quantitatively evaluate these approaches. In addition, a lack of 3D animal pose data also makes it difficult to train 3D pose-prediction methods in a similar manner to the popular field of body-pose prediction. In our work, we focus on the problem of 3D canine pose estimation from RGBD images, recording a diverse range of dog breeds with several Microsoft Kinect v2s, simultaneously obtaining the 3D ground truth skeleton via a motion capture system. We generate a dataset of synthetic RGBD images from this data. A stacked hourglass network is trained to predict 3D joint locations, which is then constrained using prior models of shape and pose. We evaluate our model on both synthetic and real RGBD images and compare our results to previously published work fitting canine models to images. Finally, despite our training set consisting only of dog data, visual inspection implies that our network can produce good predictions for images of other quadrupeds -- e.g. horses or cats -- when their pose is similar to that contained in our training set.
