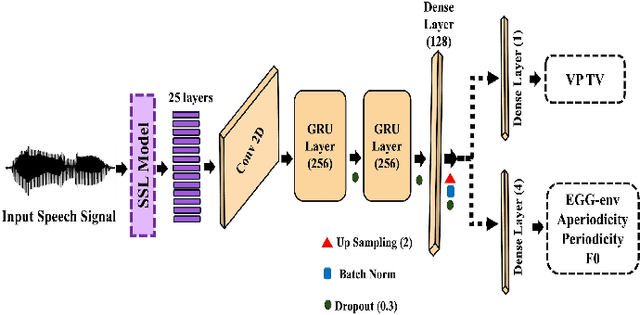

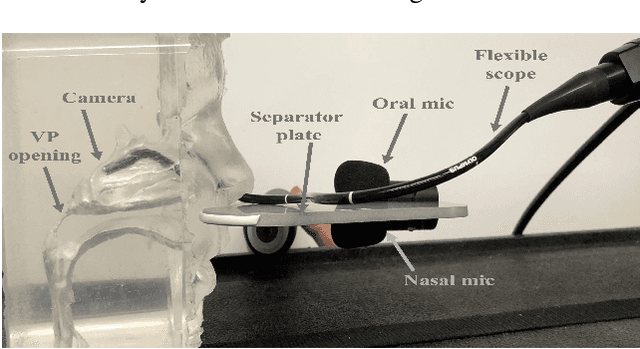

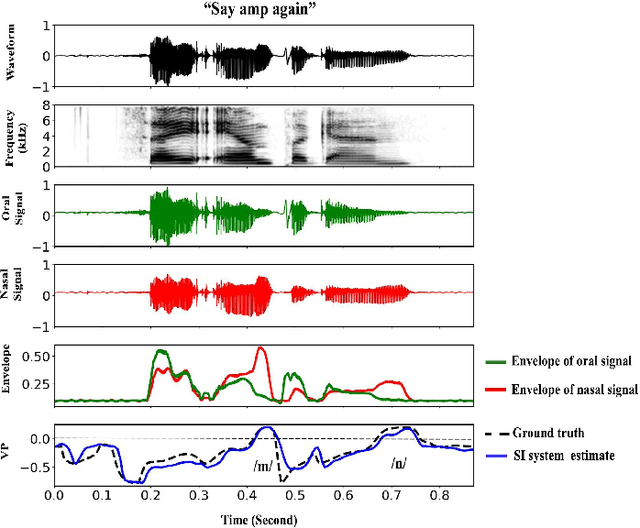

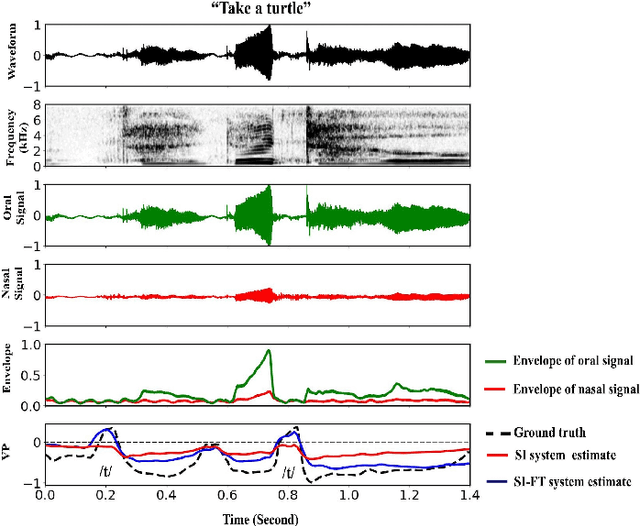

Acoustic to Articulatory Speech Inversion for Children with Velopharyngeal Insufficiency

Traditional clinical approaches for assessing nasality, such as nasopharyngoscopy and nasometry, involve unpleasant experiences and are problematic for children. Speech Inversion (SI), a noninvasive technique, offers a promising alternative for estimating articulatory movement without the need for physical instrumentation. In this study, an SI system trained on nasalance data from healthy adults is augmented with source information from electroglottography and acoustically derived F0, periodic and aperiodic energy estimates as proxies for glottal control. This model achieves 16.92% relative improvement in Pearson Product-Moment Correlation (PPMC) compared to a previous SI system for nasalance estimation. To adapt the SI system for nasalance estimation in children with Velopharyngeal Insufficiency (VPI), the model initially trained on adult speech was fine-tuned using children with VPI data, yielding an 7.90% relative improvement in PPMC compared to its performance before fine-tuning.

Perceptual Ratings Predict Speech Inversion Articulatory Kinematics in Childhood Speech Sound Disorders

Purpose: This study evaluated whether articulatory kinematics, inferred by Articulatory Phonology speech inversion neural networks, aligned with perceptual ratings of /r/ and /s/ in the speech of children with speech sound disorders. Methods: Articulatory Phonology vocal tract variables were inferred for 5,961 utterances from 118 children and 3 adults, aged 2.25-45 years. Perceptual ratings were standardized using the novel 5-point PERCEPT Rating Scale and training protocol. Two research questions examined if the articulatory patterns of inferred vocal tract variables aligned with the perceptual error category for the phones investigated (e.g., tongue tip is more anterior in dentalized /s/ productions than in correct /s/). A third research question examined if gradient PERCEPT Rating Scale scores predicted articulatory proximity to correct productions. Results: Estimated marginal means from linear mixed models supported 17 of 18 /r/ hypotheses, involving tongue tip and tongue body constrictions. For /s/, estimated marginal means from a second linear mixed model supported 7 of 15 hypotheses, particularly those related to the tongue tip. A third linear mixed model revealed that PERCEPT Rating Scale scores significantly predicted articulatory proximity of errored phones to correct productions. Conclusion: Inferred vocal tract variables differentiated category and magnitude of articulatory errors for /r/, and to a lesser extent for /s/, aligning with perceptual judgments. These findings support the clinical interpretability of speech inversion vocal tract variables and the PERCEPT Rating Scale in quantifying articulatory proximity to the target sound, particularly for /r/.

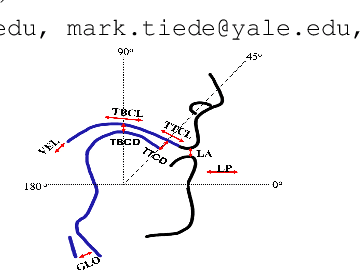

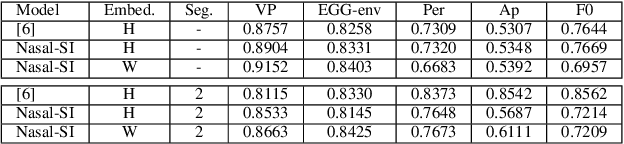

Enhancing Acoustic-to-Articulatory Speech Inversion by Incorporating Nasality

Speech is produced through the coordination of vocal tract constricting organs: lips, tongue, velum, and glottis. Previous works developed Speech Inversion (SI) systems to recover acoustic-to-articulatory mappings for lip and tongue constrictions, called oral tract variables (TVs), which were later enhanced by including source information (periodic and aperiodic energies, and F0 frequency) as proxies for glottal control. Comparison of the nasometric measures with high-speed nasopharyngoscopy showed that nasalance can serve as ground truth, and that an SI system trained with it reliably recovers velum movement patterns for American English speakers. Here, two SI training approaches are compared: baseline models that estimate oral TVs and nasalance independently, and a synergistic model that combines oral TVs and source features with nasalance. The synergistic model shows relative improvements of 5% in oral TVs estimation and 9% in nasalance estimation compared to the baseline models.

FT-Boosted SV: Towards Noise Robust Speaker Verification for English Speaking Classroom Environments

Creating Speaker Verification (SV) systems for classroom settings that are robust to classroom noises such as babble noise is crucial for the development of AI tools that assist educational environments. In this work, we study the efficacy of finetuning with augmented children datasets to adapt the x-vector and ECAPA-TDNN to classroom environments. We demonstrate that finetuning with augmented children's datasets is powerful in that regard and reduces the Equal Error Rate (EER) of x-vector and ECAPA-TDNN models for both classroom datasets and children speech datasets. Notably, this method reduces EER of the ECAPA-TDNN model on average by half (a 5 % improvement) for classrooms in the MPT dataset compared to the ECAPA-TDNN baseline model. The x-vector model shows an 8 % average improvement for classrooms in the NCTE dataset compared to its baseline.
