Learning-Based Phase Shift Optimization of Liquid Crystal RIS in Dynamic mmWave Networks

To enhance coverage and signal quality in millimeter-wave (mmWave) frequencies, reconfigurable intelligent surfaces (RISs) have emerged as a game-changing solution to manipulate the wireless environment. Traditional semiconductor-based RISs face scalability issues due to high power consumption. Meanwhile, liquid crystal-based RISs (LC-RISs) offer energy-efficient and cost-effective operation even for large arrays. However, this promise has a caveat. LC-RISs suffer from long reconfiguration times, on the order of tens of milliseconds, which limits their applicability in dynamic scenarios. To date, prior works have focused on hardware design aspects or static scenarios to address this limitation, but little attention has been paid to optimization solutions for dynamic settings. Our paper fills this gap by proposing a reinforcement learning-based optimization framework to dynamically control the phase shifts of LC-RISs and maximize the data rate of a moving user. Specifically, we propose a Deep Deterministic Policy Gradient (DDPG) algorithm that adapts the LC-RIS phase shifts without requiring perfect channel state information and balances the tradeoff between signal-to-noise ratio (SNR) and configuration time. We validate our approach through high-fidelity ray tracing simulations, leveraging measurement data from an LC-RIS prototype. Our results demonstrate the potential of our solution to bring adaptive control to dynamic LC-RIS-assisted mmWave systems.

Fast Reconfiguration of LC-RISs: Modeling and Algorithm Design

LC technology is a promising hardware solution for realizing extremely large RISs due to its advantages in cost-effectiveness, scalability, energy efficiency, and continuous phase shift tunability. However, the slow response time of the LC cells, especially in comparison to the silicon-based alternatives like radio frequency switches and PIN diodes, limits the performance. This limitation becomes particularly relevant in TDMA applications where RIS must sequentially serve users in different locations, as the phase-shifting response time of LC cells can constrain system performance. This paper addresses the slow phase-shifting limitation of LC by developing a physics-based model for the time response of an LC unit cell and proposing a novel phase-shift design framework to reduce the transition time. Specifically, exploiting the fact that LC-RIS at milimeter wave bands have a large electric aperture, we optimize the LC phase shifts based on user locations, eliminating the need for full channel state information and minimizing reconfiguration overhead. Moreover, instead of focusing on a single point, the RIS phase shifters are designed to optimize coverage over an area. This enhances communication reliability for mobile users and mitigates performance degradation due to user location estimation errors. The proposed design minimizes the transition time between configurations, a critical requirement for TDMA schemes. Our analysis reveals that the impact of RIS reconfiguration time on system throughput becomes particularly significant when TDMA intervals are comparable to the reconfiguration time. In such scenarios, optimizing the phase-shift design helps mitigate performance degradation while ensuring specific QoS requirements. Moreover, the proposed algorithm has been tested through experimental evaluations, which demonstrate that it also performs effectively in practice.

LiquiRIS: A Major Step Towards Fast Beam Switching in Liquid Crystal-based RISs

Reconfigurable intelligent surfaces (RISs) offer enhanced control over propagation through phase and amplitude manipulation but face practical challenges like cost and power usage, especially at high frequencies. This is specifically a major problem at high frequencies (Ka- and V-band) where the high cost of semiconductor components (i.e., diodes, varactors, MEMSs) can make RISs prohibitively costly. In recent years, it is shown that liquid crystals (LCs) are low-cost and low-energy alternative which can address the aforementioned challenges but at the cost of lower response time. In LiquiRIS, we enable leveraging LC-based RIS in mobile networks. Specifically, we devise techniques that minimize the beam switching time of LC-based RIS by tapping into the physical properties of LCs and the underlying mathematical principles of beamforming. We achieve this by modeling and optimizing the beamforming vector to account for the rotation characteristics of LC molecules to reduce their transition time from one state to another. In addition to prototyping the proposed system, we show via extensive experimental analysis that LiquiRIS substantially reduces the response time (up to 70.80%) of liquid crystal surface (LCS).

Fast Transition-Aware Reconfiguration of Liquid Crystal-based RISs

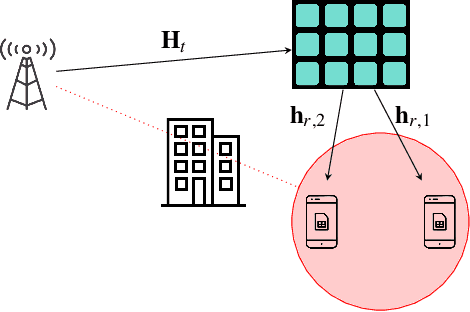

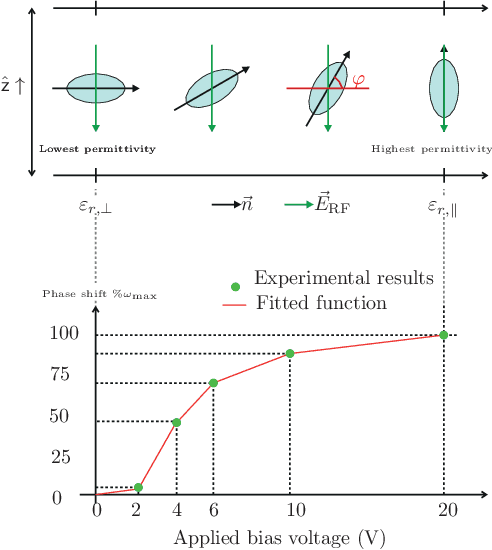

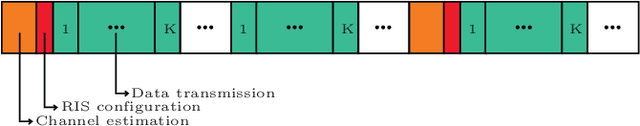

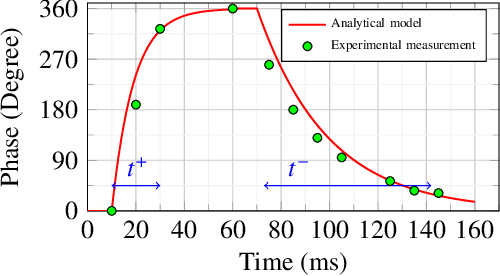

Liquid crystal (LC) technology offers a cost-effective, scalable, energy-efficient, and continuous phase tunable realization of extremely large reconfigurable intelligent surfaces (RISs). However, LC response time to achieve a desired differential phase is significantly higher compared to competing silicon-based technologies (RF switches, PIN diodes, etc). The slow response time can be the performance bottleneck for applications where frequent reconfiguration of the RIS (e.g., to serve different users) is needed. In this paper, we develop an RIS phase-shift design that is aware of the transition behavior and aims to minimize the time to switch among multiple RIS configurations each serving a mobile user in a time-division multiple-access (TDMA) protocol. Our simulation results confirm that the proposed algorithm significantly reduces the time required for the users to achieve a threshold signal quality. This leads to a considerable improvement in the achievable throughput for applications, where the length of the TDMA time intervals is comparable with the RIS reconfiguration time.
