Programmable metasurfaces for future photonic artificial intelligence

Photonic neural networks (PNNs), which share the inherent benefits of photonic systems, such as high parallelism and low power consumption, could challenge traditional digital neural networks in terms of energy efficiency, latency, and throughput. However, producing scalable photonic artificial intelligence (AI) solutions remains challenging. To make photonic AI models viable, the scalability problem needs to be solved. Large optical AI models implemented on PNNs are only commercially feasible if the advantages of optical computation outweigh the cost of their input-output overhead. In this Perspective, we discuss how field-programmable metasurface technology may become a key hardware ingredient in achieving scalable photonic AI accelerators and how it can compete with current digital electronic technologies. Programmability or reconfigurability is a pivotal component for PNN hardware, enabling in situ training and accommodating non-stationary use cases that require fine-tuning or transfer learning. Co-integration with electronics, 3D stacking, and large-scale manufacturing of metasurfaces would significantly improve PNN scalability and functionalities. Programmable metasurfaces could address some of the current challenges that PNNs face and enable next-generation photonic AI technology.

Metasurface-enhanced Light Detection and Ranging Technology

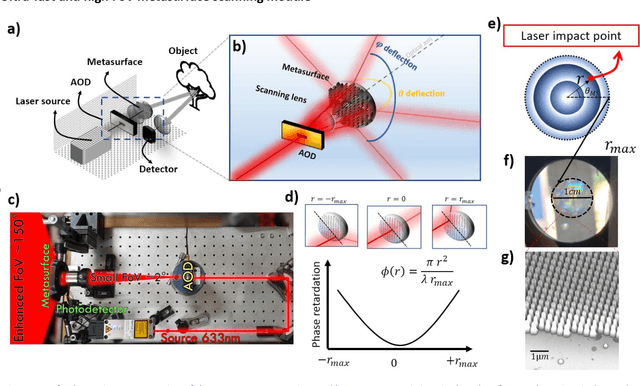

Deploying advanced imaging solutions to robotic and autonomous systems by mimicking human vision requires simultaneous acquisition of multiple fields of views, named the peripheral and fovea regions. Low-resolution peripheral field provides coarse scene exploration to direct the eye to focus to a highly resolved fovea region for sharp imaging. Among 3D computer vision techniques, Light Detection and Ranging (LiDAR) is currently considered at the industrial level for robotic vision. LiDAR is an imaging technique that monitors pulses of light at optical frequencies to sense the space and to recover three-dimensional ranging information. Notwithstanding the efforts on LiDAR integration and optimization, commercially available devices have slow frame rate and low image resolution, notably limited by the performance of mechanical or slow solid-state deflection systems. Metasurfaces (MS) are versatile optical components that can distribute the optical power in desired regions of space. Here, we report on an advanced LiDAR technology that uses ultrafast low FoV deflectors cascaded with large area metasurfaces to achieve large FoV and simultaneous peripheral and central imaging zones. This technology achieves MHz frame rate for 2D imaging, and up to KHz for 3D imaging, with extremely large FoV (up to 150{\deg}deg. on both vertical and horizontal scanning axes). The use of this disruptive LiDAR technology with advanced learning algorithms offers perspectives to improve further the perception capabilities and decision-making process of autonomous vehicles and robotic systems.
