SelfGeo: Self-supervised and Geodesic-consistent Estimation of Keypoints on Deformable Shapes

Unsupervised 3D keypoints estimation from Point Cloud Data (PCD) is a complex task, even more challenging when an object shape is deforming. As keypoints should be semantically and geometrically consistent across all the 3D frames - each keypoint should be anchored to a specific part of the deforming shape irrespective of intrinsic and extrinsic motion. This paper presents, "SelfGeo", a self-supervised method that computes persistent 3D keypoints of non-rigid objects from arbitrary PCDs without the need of human annotations. The gist of SelfGeo is to estimate keypoints between frames that respect invariant properties of deforming bodies. Our main contribution is to enforce that keypoints deform along with the shape while keeping constant geodesic distances among them. This principle is then propagated to the design of a set of losses which minimization let emerge repeatable keypoints in specific semantic locations of the non-rigid shape. We show experimentally that the use of geodesic has a clear advantage in challenging dynamic scenes and with different classes of deforming shapes (humans and animals). Code and data are available at: https://github.com/IIT-PAVIS/SelfGeo

SC3K: Self-supervised and Coherent 3D Keypoints Estimation from Rotated, Noisy, and Decimated Point Cloud Data

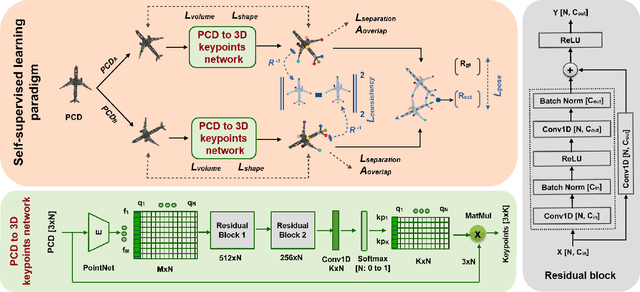

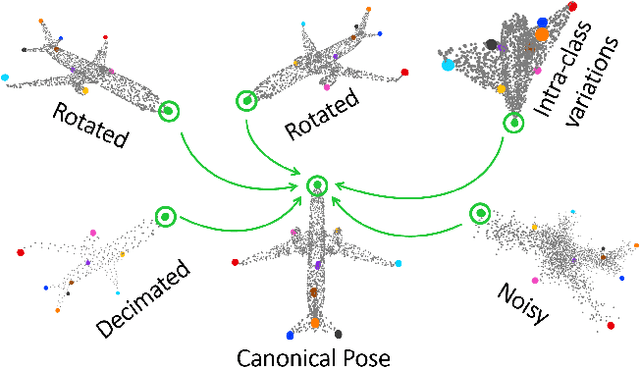

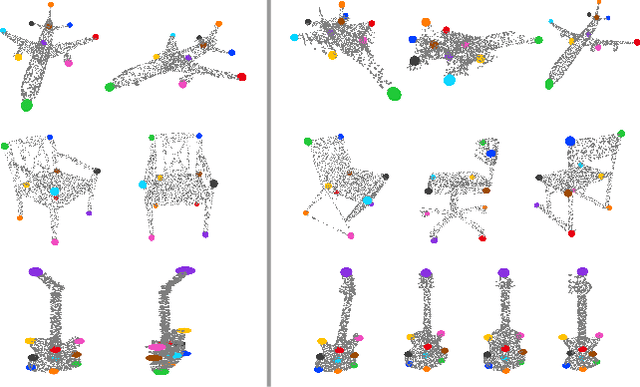

This paper proposes a new method to infer keypoints from arbitrary object categories in practical scenarios where point cloud data (PCD) are noisy, down-sampled and arbitrarily rotated. Our proposed model adheres to the following principles: i) keypoints inference is fully unsupervised (no annotation given), ii) keypoints position error should be low and resilient to PCD perturbations (robustness), iii) keypoints should not change their indexes for the intra-class objects (semantic coherence), iv) keypoints should be close to or proximal to PCD surface (compactness). We achieve these desiderata by proposing a new self-supervised training strategy for keypoints estimation that does not assume any a priori knowledge of the object class, and a model architecture with coupled auxiliary losses that promotes the desired keypoints properties. We compare the keypoints estimated by the proposed approach with those of the state-of-the-art unsupervised approaches. The experiments show that our approach outperforms by estimating keypoints with improved coverage (+9.41%) while being semantically consistent (+4.66%) that best characterizes the object's 3D shape for downstream tasks. Code and data are available at: https://github.com/IITPAVIS/SC3K
