TrojanWhisper: Evaluating Pre-trained LLMs to Detect and Localize Hardware Trojans

Existing Hardware Trojans (HT) detection methods face several critical limitations: logic testing struggles with scalability and coverage for large designs, side-channel analysis requires golden reference chips, and formal verification methods suffer from state-space explosion. The emergence of Large Language Models (LLMs) offers a promising new direction for HT detection by leveraging their natural language understanding and reasoning capabilities. For the first time, this paper explores the potential of general-purpose LLMs in detecting various HTs inserted in Register Transfer Level (RTL) designs, including SRAM, AES, and UART modules. We propose a novel tool for this goal that systematically assesses state-of-the-art LLMs (GPT-4o, Gemini 1.5 pro, and Llama 3.1) in detecting HTs without prior fine-tuning. To address potential training data bias, the tool implements perturbation techniques, i.e., variable name obfuscation, and design restructuring, that make the cases more sophisticated for the used LLMs. Our experimental evaluation demonstrates perfect detection rates by GPT-4o and Gemini 1.5 pro in baseline scenarios (100%/100% precision/recall), with both models achieving better trigger line coverage (TLC: 0.82-0.98) than payload line coverage (PLC: 0.32-0.46). Under code perturbation, while Gemini 1.5 pro maintains perfect detection performance (100%/100%), GPT-4o (100%/85.7%) and Llama 3.1 (66.7%/85.7%) show some degradation in detection rates, and all models experience decreased accuracy in localizing both triggers and payloads. This paper validates the potential of LLM approaches for hardware security applications, highlighting areas for future improvement.

Unsupervised clustering of disturbances in power systems via deep convolutional autoencoders

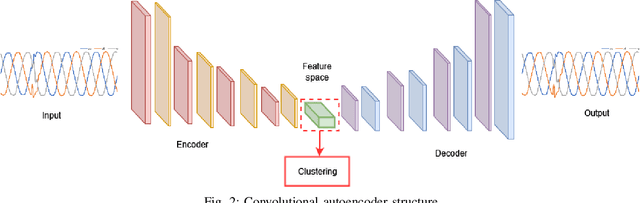

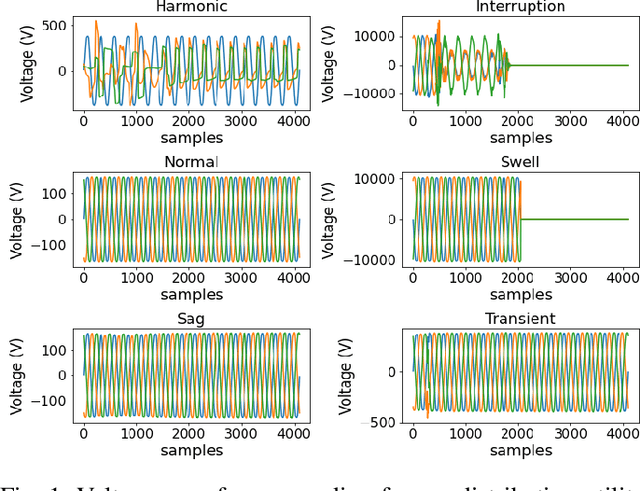

Power quality (PQ) events are recorded by PQ meters whenever anomalous events are detected on the power grid. Using neural networks with machine learning can aid in accurately classifying the recorded waveforms and help power system engineers diagnose and rectify the root causes of problems. However, many of the waveforms captured during a disturbance in the power system need to be labeled for supervised learning, leaving a large number of data recordings for engineers to process manually or go unseen. This paper presents an autoencoder and K-means clustering-based unsupervised technique that can be used to cluster PQ events into categories like sag, interruption, transients, normal, and harmonic distortion to enable filtering of anomalous waveforms from recurring or normal waveforms. The method is demonstrated using three-phase, field-obtained voltage waveforms recorded in a distribution grid. First, a convolutional autoencoder compresses the input signals into a set of lower feature dimensions which, after further processing, is passed to the K-means algorithm to identify data clusters. Using a small, labeled dataset, numerical labels are then assigned to events based on a cosine similarity analysis. Finally, the study analyzes the clusters using the t-distributed stochastic neighbor embedding (t-SNE) visualization tool, demonstrating that the technique can help investigate a large number of captured events in a quick manner.
