Capturing natural-colour 3D models of insects for species discovery

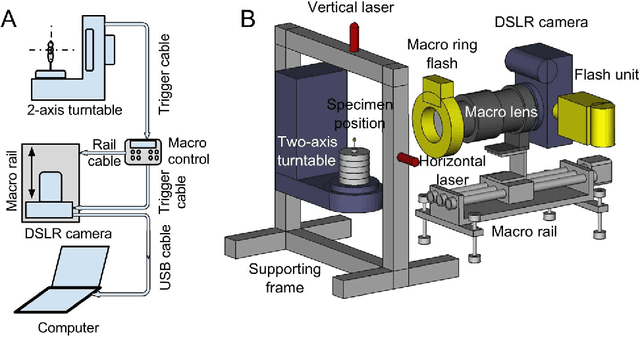

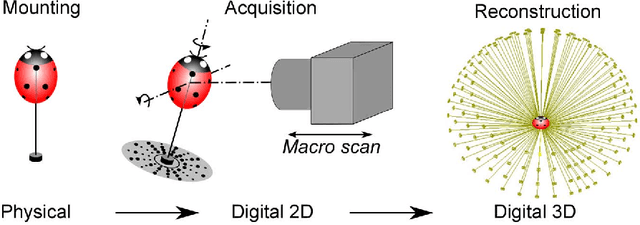

Collections of biological specimens are fundamental to scientific understanding and characterization of natural diversity. This paper presents a system for liberating useful information from physical collections by bringing specimens into the digital domain so they can be more readily shared, analyzed, annotated and compared. It focuses on insects and is strongly motivated by the desire to accelerate and augment current practices in insect taxonomy which predominantly use text, 2D diagrams and images to describe and characterize species. While these traditional kinds of descriptions are informative and useful, they cannot cover insect specimens "from all angles" and precious specimens are still exchanged between researchers and collections for this reason. Furthermore, insects can be complex in structure and pose many challenges to computer vision systems. We present a new prototype for a practical, cost-effective system of off-the-shelf components to acquire natural-colour 3D models of insects from around 3mm to 30mm in length. Colour images are captured from different angles and focal depths using a digital single lens reflex (DSLR) camera rig and two-axis turntable. These 2D images are processed into 3D reconstructions using software based on a visual hull algorithm. The resulting models are compact (around 10 megabytes), afford excellent optical resolution, and can be readily embedded into documents and web pages, as well as viewed on mobile devices. The system is portable, safe, relatively affordable, and complements the sort of volumetric data that can be acquired by computed tomography. This system provides a new way to augment the description and documentation of insect species holotypes, reducing the need to handle or ship specimens. It opens up new opportunities to collect data for research, education, art, entertainment, biodiversity assessment and biosecurity control.

Towards high-throughput 3D insect capture for species discovery and diagnostics

Digitisation of natural history collections not only preserves precious information about biological diversity, it also enables us to share, analyse, annotate and compare specimens to gain new insights. High-resolution, full-colour 3D capture of biological specimens yields color and geometry information complementary to other techniques (e.g., 2D capture, electron scanning and micro computed tomography). However 3D colour capture of small specimens is slow for reasons including specimen handling, the narrow depth of field of high magnification optics, and the large number of images required to resolve complex shapes of specimens. In this paper, we outline techniques to accelerate 3D image capture, including using a desktop robotic arm to automate the insect handling process; using a calibrated pan-tilt rig to avoid attaching calibration targets to specimens; using light field cameras to capture images at an extended depth of field in one shot; and using 3D Web and mixed reality tools to facilitate the annotation, distribution and visualisation of 3D digital models.
