Scatteract: Automated extraction of data from scatter plots

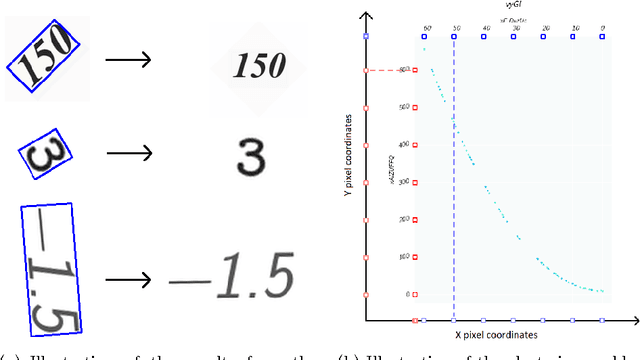

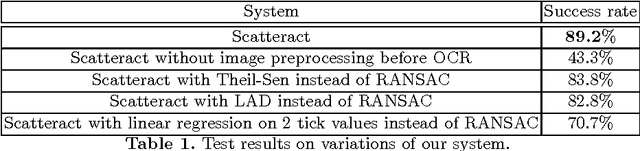

Charts are an excellent way to convey patterns and trends in data, but they do not facilitate further modeling of the data or close inspection of individual data points. We present a fully automated system for extracting the numerical values of data points from images of scatter plots. We use deep learning techniques to identify the key components of the chart, and optical character recognition together with robust regression to map from pixels to the coordinate system of the chart. We focus on scatter plots with linear scales, which already have several interesting challenges. Previous work has done fully automatic extraction for other types of charts, but to our knowledge this is the first approach that is fully automatic for scatter plots. Our method performs well, achieving successful data extraction on 89% of the plots in our test set.

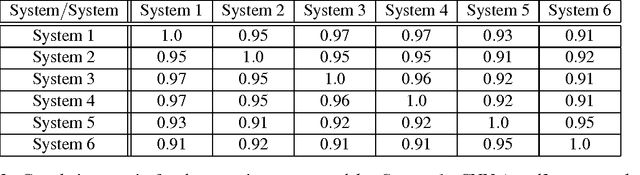

BB_twtr at SemEval-2017 Task 4: Twitter Sentiment Analysis with CNNs and LSTMs

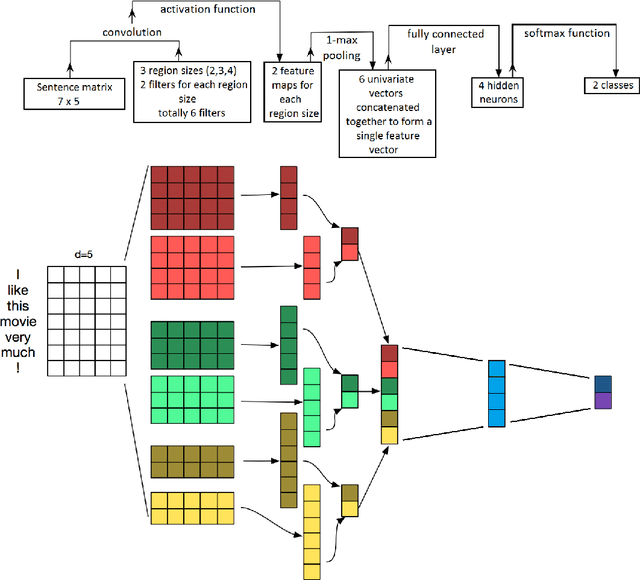

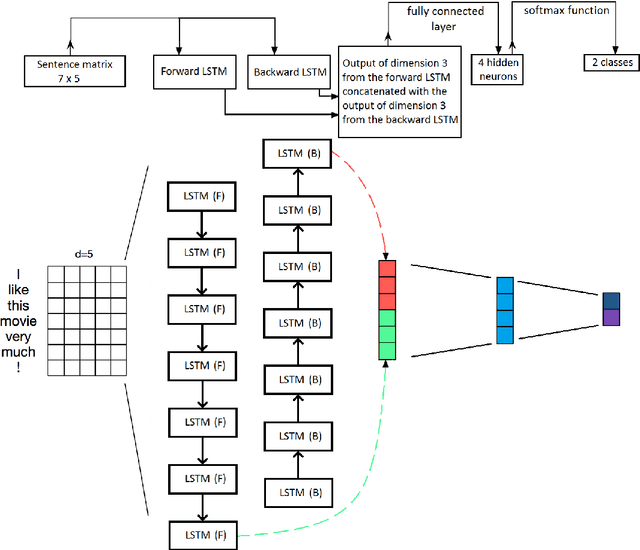

In this paper we describe our attempt at producing a state-of-the-art Twitter sentiment classifier using Convolutional Neural Networks (CNNs) and Long Short Term Memory (LSTMs) networks. Our system leverages a large amount of unlabeled data to pre-train word embeddings. We then use a subset of the unlabeled data to fine tune the embeddings using distant supervision. The final CNNs and LSTMs are trained on the SemEval-2017 Twitter dataset where the embeddings are fined tuned again. To boost performances we ensemble several CNNs and LSTMs together. Our approach achieved first rank on all of the five English subtasks amongst 40 teams.
