Dual-path convolutional neural network using micro-FTIR imaging to predict breast cancer subtypes and biomarkers levels: estrogen receptor, progesterone receptor, HER2 and Ki67

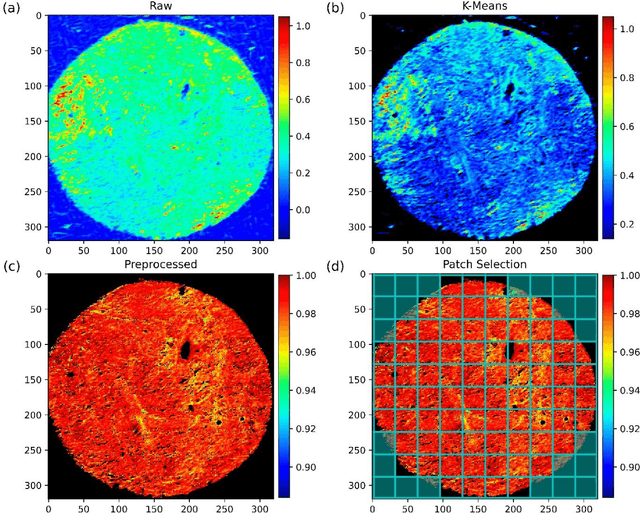

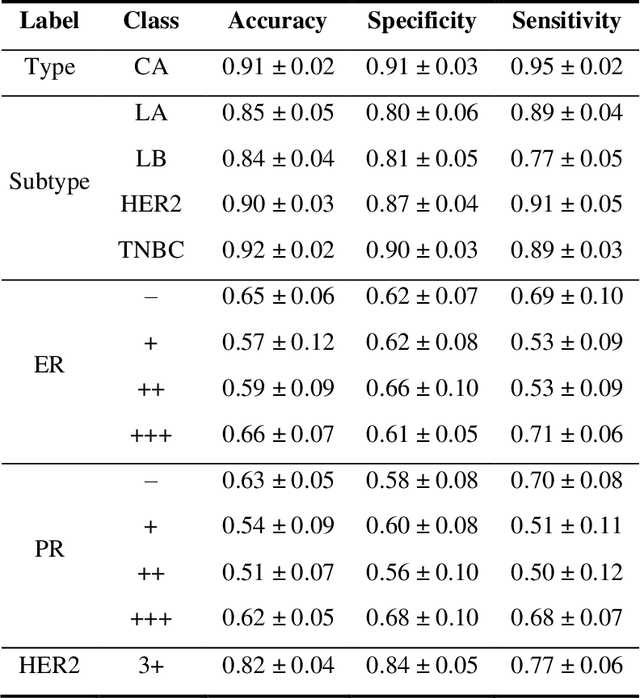

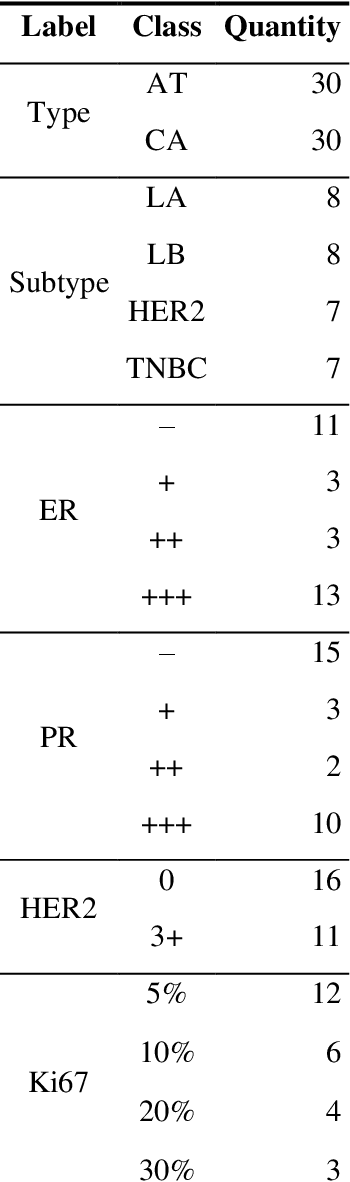

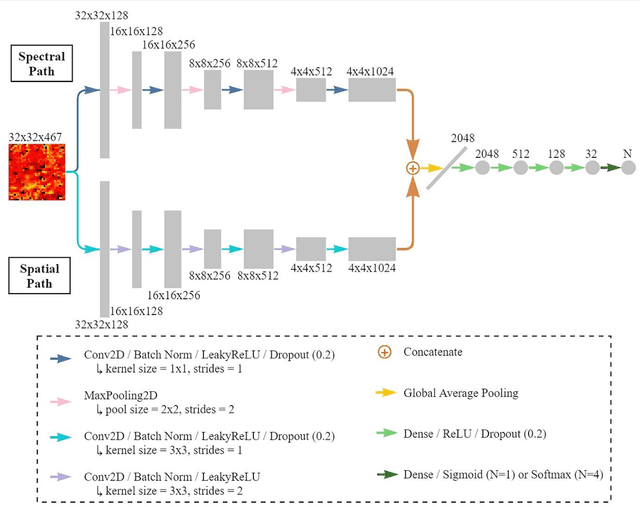

Breast cancer molecular subtypes classification plays an import role to sort patients with divergent prognosis. The biomarkers used are Estrogen Receptor (ER), Progesterone Receptor (PR), HER2, and Ki67. Based on these biomarkers expression levels, subtypes are classified as Luminal A (LA), Luminal B (LB), HER2 subtype, and Triple-Negative Breast Cancer (TNBC). Immunohistochemistry is used to classify subtypes, although interlaboratory and interobserver variations can affect its accuracy, besides being a time-consuming technique. The Fourier transform infrared micro-spectroscopy may be coupled with deep learning for cancer evaluation, where there is still a lack of studies for subtypes and biomarker levels prediction. This study presents a novel 2D deep learning approach to achieve these predictions. Sixty micro-FTIR images of 320x320 pixels were collected from a human breast biopsies microarray. Data were clustered by K-means, preprocessed and 32x32 patches were generated using a fully automated approach. CaReNet-V2, a novel convolutional neural network, was developed to classify breast cancer (CA) vs adjacent tissue (AT) and molecular subtypes, and to predict biomarkers level. The clustering method enabled to remove non-tissue pixels. Test accuracies for CA vs AT and subtype were above 0.84. The model enabled the prediction of ER, PR, and HER2 levels, where borderline values showed lower performance (minimum accuracy of 0.54). Ki67 percentage regression demonstrated a mean error of 3.6%. Thus, CaReNet-V2 is a potential technique for breast cancer biopsies evaluation, standing out as a screening analysis technique and helping to prioritize patients.

One-dimensional convolutional neural network model for breast cancer subtypes classification and biochemical content evaluation using micro-FTIR hyperspectral images

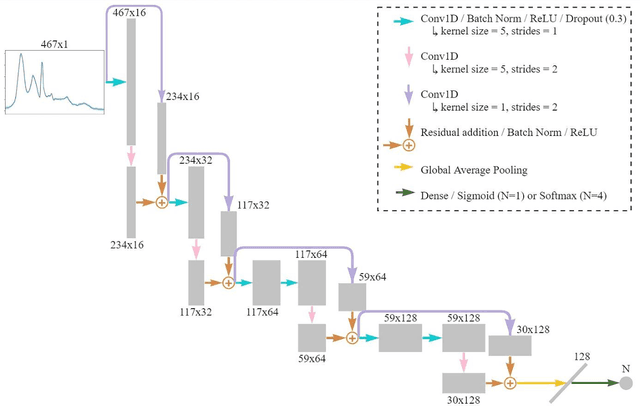

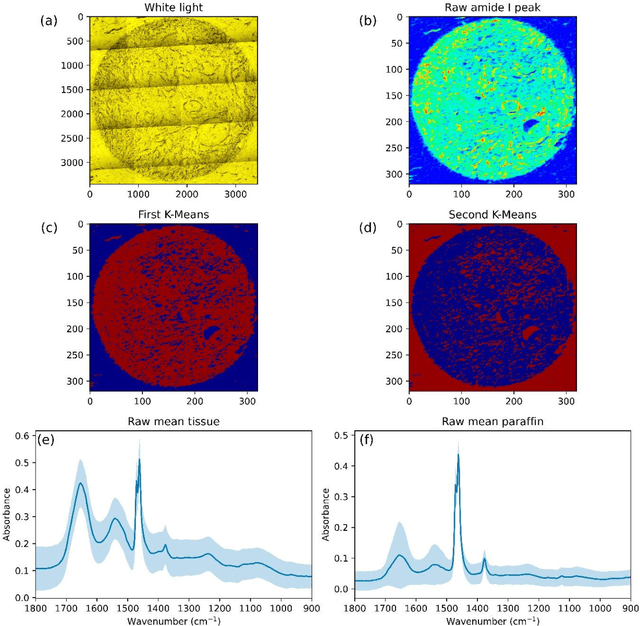

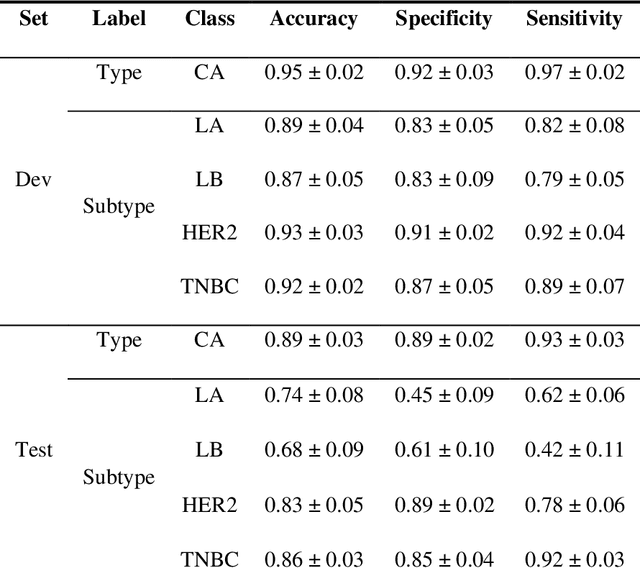

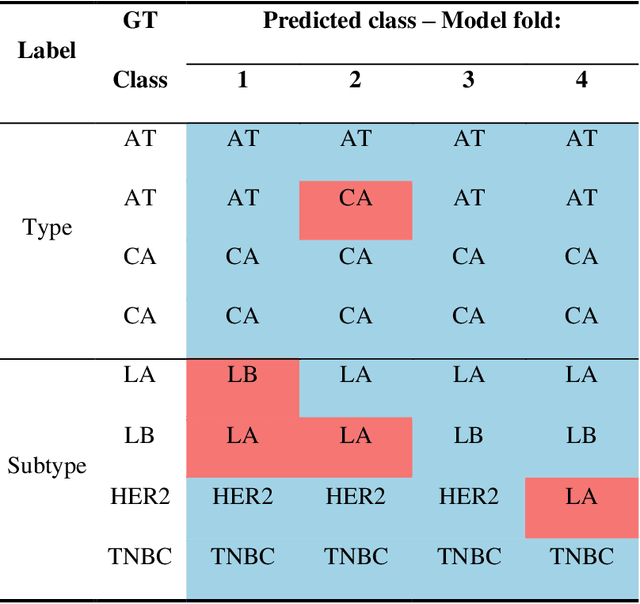

Breast cancer treatment still remains a challenge, where molecular subtypes classification plays a crucial role in selecting appropriate and specific therapy. The four subtypes are Luminal A (LA), Luminal B (LB), HER2 subtype, and Triple-Negative Breast Cancer (TNBC). Immunohistochemistry is the gold-standard evaluation, although interobserver variations are reported and molecular signatures identification is time-consuming. Fourier transform infrared micro-spectroscopy with machine learning approaches have been used to evaluate cancer samples, presenting biochemical-related explainability. However, this explainability is harder when using deep learning. This study created a 1D deep learning tool for breast cancer subtype evaluation and biochemical contribution. Sixty hyperspectral images were acquired from a human breast cancer microarray. K-Means clustering was applied to select tissue and paraffin spectra. CaReNet-V1, a novel 1D convolutional neural network, was developed to classify breast cancer (CA) and adjacent tissue (AT), and molecular subtypes. A 1D adaptation of Grad-CAM was applied to assess the biochemical impact to the classifications. CaReNet-V1 effectively classified CA and AT (test accuracy of 0.89), as well as HER2 and TNBC subtypes (0.83 and 0.86), with greater difficulty for LA and LB (0.74 and 0.68). The model enabled the evaluation of the most contributing wavenumbers to the predictions, providing a direct relationship with the biochemical content. Therefore, CaReNet-V1 and hyperspectral images is a potential approach for breast cancer biopsies assessment, providing additional information to the pathology report. Biochemical content impact feature may be used for other studies, such as treatment efficacy evaluation and development new diagnostics and therapeutic methods.

DeepVox and SAVE-CT: a contrast- and dose-independent 3D deep learning approach for thoracic aorta segmentation and aneurysm prediction using computed tomography scans

Thoracic aortic aneurysm (TAA) is a fatal disease which potentially leads to dissection or rupture through progressive enlargement of the aorta. It is usually asymptomatic and screening recommendation are limited. The gold-standard evaluation is performed by computed tomography angiography (CTA) and radiologists time-consuming assessment. Scans for other indications could help on this screening, however if acquired without contrast enhancement or with low dose protocol, it can make the clinical evaluation difficult, besides increasing the scans quantity for the radiologists. In this study, it was selected 587 unique CT scans including control and TAA patients, acquired with low and standard dose protocols, with or without contrast enhancement. A novel segmentation model, DeepVox, exhibited dice score coefficients of 0.932 and 0.897 for development and test sets, respectively, with faster training speed in comparison to models reported in the literature. The novel TAA classification model, SAVE-CT, presented accuracies of 0.930 and 0.922 for development and test sets, respectively, using only the binary segmentation mask from DeepVox as input, without hand-engineered features. These two models together are a potential approach for TAA screening, as they can handle variable number of slices as input, handling thoracic and thoracoabdominal sequences, in a fully automated contrast- and dose-independent evaluation. This may assist to decrease TAA mortality and prioritize the evaluation queue of patients for radiologists.
