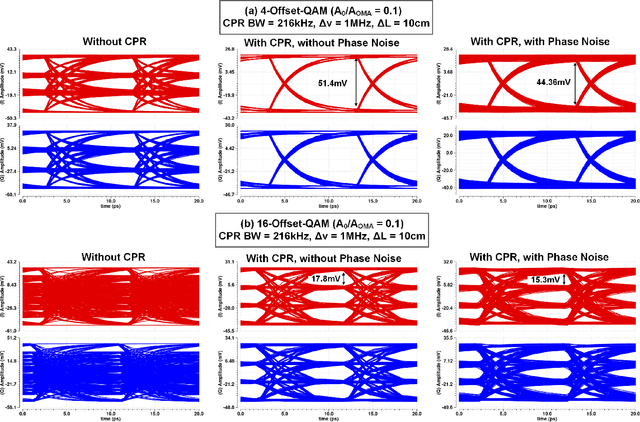

A DSP-Free Carrier Phase Recovery System using 16-Offset-QAM Laser Forwarded Links for 400Gb/s and Beyond

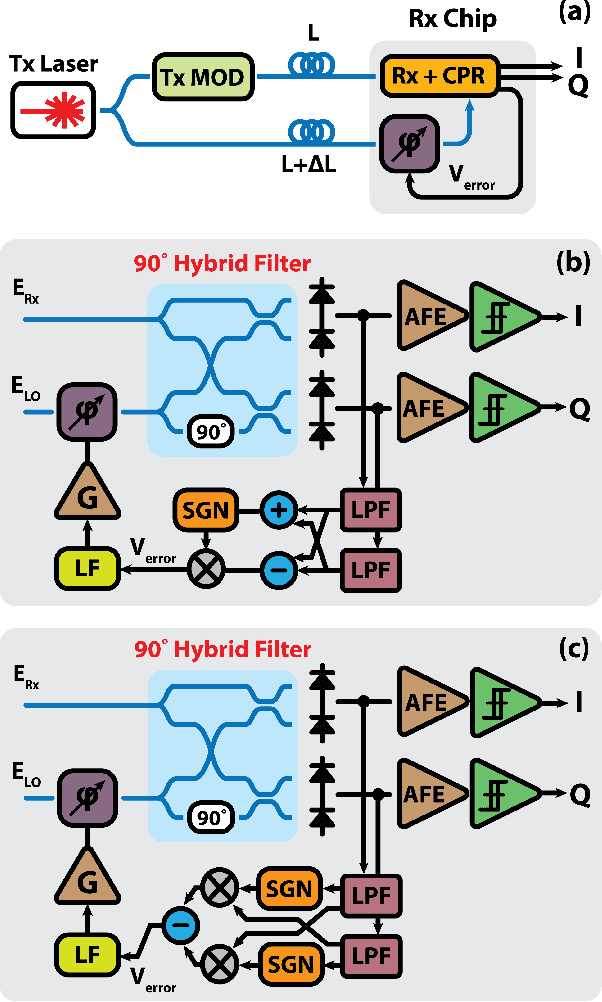

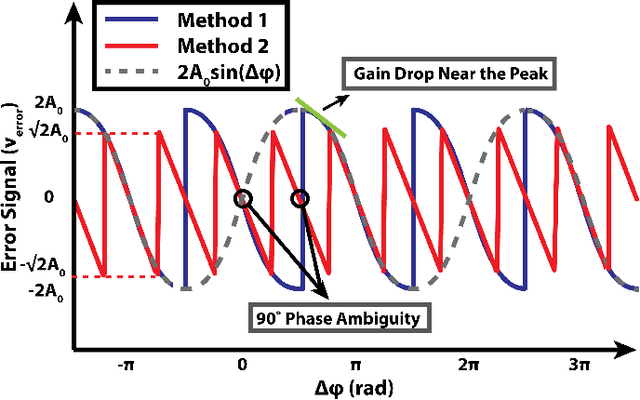

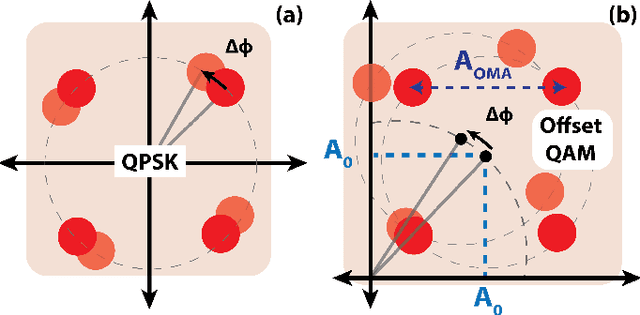

Optical interconnects are becoming a major bottleneck in scaling up future GPU racks and network switches within data centers. Although 200 Gb/s optical transceivers using PAM-4 modulation have been demonstrated, achieving higher data rates and energy efficiencies requires high-order coherent modulations like 16-QAM. Current coherent links rely on energy-intensive digital signal processing (DSP) for channel impairment compensation and carrier phase recovery (CPR), which consumes approximately 50pJ/b - 10x higher than future intra-data center requirements. For shorter links, simpler or DSP-free CPR methods can significantly reduce power and complexity. While Costas loops enable CPR for QPSK, they face challenges in scaling to higher-order modulations (e.g., 16/64-QAM) due to varying symbol amplitudes. In this work, we propose an optical coherent link architecture using laser forwarding and a novel DSP-free CPR system using offset-QAM modulation. The proposed analog CPR feedback loop is highly scalable, capable of supporting arbitrary offset-QAM modulations without requiring architectural modifications. This scalability is achieved through its phase error detection mechanism, which operates independently of the data rate and modulation type. We validated this method using GlobalFoundry's monolithic 45nm silicon photonics PDK models, with circuit- and system-level implementation at 100GBaud in the O-band. We will investigate the feedback loop dynamics, circuit-level implementations, and phase-noise performance of the proposed CPR loop. Our method can be adopted to realize low-power QAM optical interconnects for future coherent-lite pluggable transceivers as well as co-packaged optics (CPO) applications.

Evolving Tsukamoto Neuro Fuzzy Model for Multiclass Covid 19 Classification with Chest X Ray Images

Du e to rapid population growth and the need to use artificial intelligence to make quick decisions, developing a machine learning-based disease detection model and abnormality identification system has greatly improved the level of medical diagnosis Since COVID-19 has become one of the most severe diseases in the world, developing an automatic COVID-19 detection framework helps medical doctors in the diagnostic process of disease and provides correct and fast results. In this paper, we propose a machine lear ning based framework for the detection of Covid 19. The proposed model employs a Tsukamoto Neuro Fuzzy Inference network to identify and distinguish Covid 19 disease from normal and pneumonia cases. While the traditional training methods tune the parameters of the neuro-fuzzy model by gradient-based algorithms and recursive least square method, we use an evolutionary-based optimization, the Cat swarm algorithm to update the parameters. In addition, six texture features extracted from chest X-ray images are give n as input to the model. Finally, the proposed model is conducted on the chest X-ray dataset to detect Covid 19. The simulation results indicate that the proposed model achieves an accuracy of 98.51%, sensitivity of 98.35%, specificity of 98.08%, and F1 score of 98.17%.

Generative Adversarial Networks for Brain Images Synthesis: A Review

In medical imaging, image synthesis is the estimation process of one image (sequence, modality) from another image (sequence, modality). Since images with different modalities provide diverse biomarkers and capture various features, multi-modality imaging is crucial in medicine. While multi-screening is expensive, costly, and time-consuming to report by radiologists, image synthesis methods are capable of artificially generating missing modalities. Deep learning models can automatically capture and extract the high dimensional features. Especially, generative adversarial network (GAN) as one of the most popular generative-based deep learning methods, uses convolutional networks as generators, and estimated images are discriminated as true or false based on a discriminator network. This review provides brain image synthesis via GANs. We summarized the recent developments of GANs for cross-modality brain image synthesis including CT to PET, CT to MRI, MRI to PET, and vice versa.
