Real-World Deployment of a Lane Change Prediction Architecture Based on Knowledge Graph Embeddings and Bayesian Inference

Research on lane change prediction has gained a lot of momentum in the last couple of years. However, most research is confined to simulation or results obtained from datasets, leaving a gap between algorithmic advances and on-road deployment. This work closes that gap by demonstrating, on real hardware, a lane-change prediction system based on Knowledge Graph Embeddings (KGEs) and Bayesian inference. Moreover, the ego-vehicle employs a longitudinal braking action to ensure the safety of both itself and the surrounding vehicles. Our architecture consists of two modules: (i) a perception module that senses the environment, derives input numerical features, and converts them into linguistic categories; and communicates them to the prediction module; (ii) a pretrained prediction module that executes a KGE and Bayesian inference model to anticipate the target vehicle's maneuver and transforms the prediction into longitudinal braking action. Real-world hardware experimental validation demonstrates that our prediction system anticipates the target vehicle's lane change three to four seconds in advance, providing the ego vehicle sufficient time to react and allowing the target vehicle to make the lane change safely.

Explainable Lane Change Prediction for Near-Crash Scenarios Using Knowledge Graph Embeddings and Retrieval Augmented Generation

Lane-changing maneuvers, particularly those executed abruptly or in risky situations, are a significant cause of road traffic accidents. However, current research mainly focuses on predicting safe lane changes. Furthermore, existing accident datasets are often based on images only and lack comprehensive sensory data. In this work, we focus on predicting risky lane changes using the CRASH dataset (our own collected dataset specifically for risky lane changes), and safe lane changes (using the HighD dataset). Then, we leverage KG and Bayesian inference to predict these maneuvers using linguistic contextual information, enhancing the model's interpretability and transparency. The model achieved a 91.5% f1-score with anticipation time extending to four seconds for risky lane changes, and a 90.0% f1-score for predicting safe lane changes with the same anticipation time. We validate our model by integrating it into a vehicle within the CARLA simulator in scenarios that involve risky lane changes. The model managed to anticipate sudden lane changes, thus providing automated vehicles with further time to plan and execute appropriate safe reactions. Finally, to enhance the explainability of our model, we utilize RAG to provide clear and natural language explanations for the given prediction.

Vehicle Lane Change Prediction based on Knowledge Graph Embeddings and Bayesian Inference

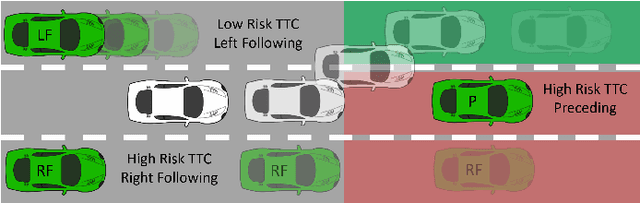

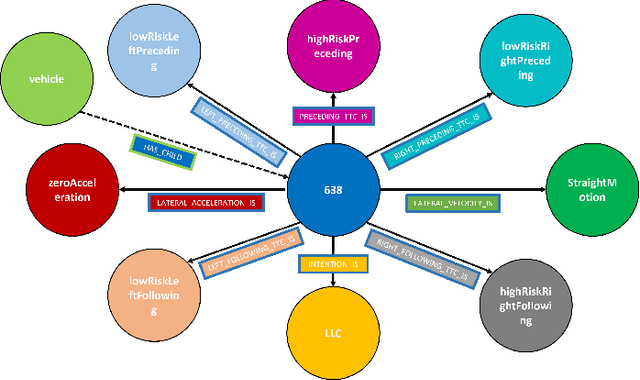

Prediction of vehicle lane change maneuvers has gained a lot of momentum in the last few years. Some recent works focus on predicting a vehicle's intention by predicting its trajectory first. This is not enough, as it ignores the context of the scene and the state of the surrounding vehicles (as they might be risky to the target vehicle). Other works assessed the risk made by the surrounding vehicles only by considering their existence around the target vehicle, or by considering the distance and relative velocities between them and the target vehicle as two separate numerical features. In this work, we propose a solution that leverages Knowledge Graphs (KGs) to anticipate lane changes based on linguistic contextual information in a way that goes well beyond the capabilities of current perception systems. Our solution takes the Time To Collision (TTC) with surrounding vehicles as input to assess the risk on the target vehicle. Moreover, our KG is trained on the HighD dataset using the TransE model to obtain the Knowledge Graph Embeddings (KGE). Then, we apply Bayesian inference on top of the KG using the embeddings learned during training. Finally, the model can predict lane changes two seconds ahead with 97.95% f1-score, which surpassed the state of the art, and three seconds before changing lanes with 93.60% f1-score.
