Optimization of An Induced Magnetic Field-Based Positioning System

Using oscillating magnetic fields for indoor positioning is a robust way to resist dynamic environments. This work presents the hard- and software-related optimizations of an induced magnetic field positioning system. We describe a new coil architecture for both the transmitter and receiver, reducing inter-axes cross-talk. A new analog circuit design on the receiver side attains an acceptable noise level and increases the detection range from 4m to 8m (the covered area is increased from $50m^2$ to $200m^2$). The median positioning error is reduced from 0.56~m to 0.25m in the near field with fingerprinting methods. Experiments in office and factory areas (including robotic and industrial equipment) demonstrate the system's robustness in large areas. This work aims to enlighten researchers working on the same topic with constructive optimization directions on their own induced magnetic field-based systems.

MassNet: A Deep Learning Approach for Body Weight Extraction from A Single Pressure Image

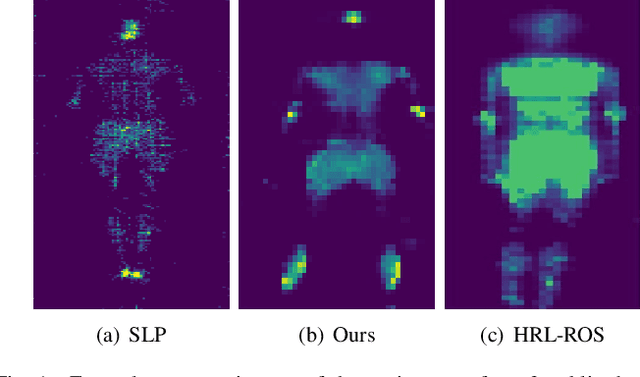

Body weight, as an essential physiological trait, is of considerable significance in many applications like body management, rehabilitation, and drug dosing for patient-specific treatments. Previous works on the body weight estimation task are mainly vision-based, using 2D/3D, depth, or infrared images, facing problems in illumination, occlusions, and especially privacy issues. The pressure mapping mattress is a non-invasive and privacy-preserving tool to obtain the pressure distribution image over the bed surface, which strongly correlates with the body weight of the lying person. To extract the body weight from this image, we propose a deep learning-based model, including a dual-branch network to extract the deep features and pose features respectively. A contrastive learning module is also combined with the deep-feature branch to help mine the mutual factors across different postures of every single subject. The two groups of features are then concatenated for the body weight regression task. To test the model's performance over different hardware and posture settings, we create a pressure image dataset of 10 subjects and 23 postures, using a self-made pressure-sensing bedsheet. This dataset, which is made public together with this paper, together with a public dataset, are used for the validation. The results show that our model outperforms the state-of-the-art algorithms over both 2 datasets. Our research constitutes an important step toward fully automatic weight estimation in both clinical and at-home practice. Our dataset is available for research purposes at: https://github.com/USTCWzy/MassEstimation.
