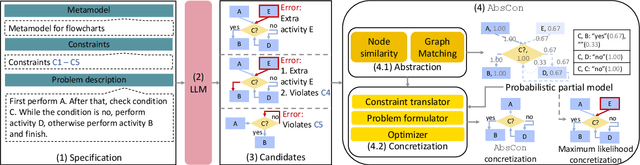

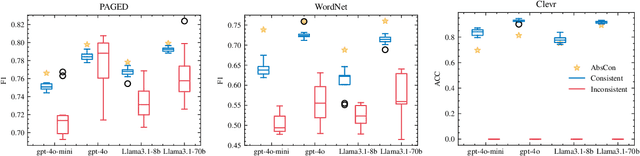

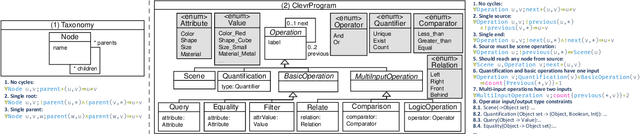

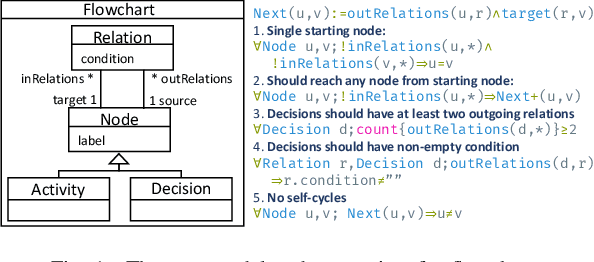

Accurate and Consistent Graph Model Generation from Text with Large Language Models

Graph model generation from natural language description is an important task with many applications in software engineering. With the rise of large language models (LLMs), there is a growing interest in using LLMs for graph model generation. Nevertheless, LLM-based graph model generation typically produces partially correct models that suffer from three main issues: (1) syntax violations: the generated model may not adhere to the syntax defined by its metamodel, (2) constraint inconsistencies: the structure of the model might not conform to some domain-specific constraints, and (3) inaccuracy: due to the inherent uncertainty in LLMs, the models can include inaccurate, hallucinated elements. While the first issue is often addressed through techniques such as constraint decoding or filtering, the latter two remain largely unaddressed. Motivated by recent self-consistency approaches in LLMs, we propose a novel abstraction-concretization framework that enhances the consistency and quality of generated graph models by considering multiple outputs from an LLM. Our approach first constructs a probabilistic partial model that aggregates all candidate outputs and then refines this partial model into the most appropriate concrete model that satisfies all constraints. We evaluate our framework on several popular open-source and closed-source LLMs using diverse datasets for model generation tasks. The results demonstrate that our approach significantly improves both the consistency and quality of the generated graph models.

The Power of Types: Exploring the Impact of Type Checking on Neural Bug Detection in Dynamically Typed Languages

Motivation: Automated bug detection in dynamically typed languages such as Python is essential for maintaining code quality. The lack of mandatory type annotations in such languages can lead to errors that are challenging to identify early with traditional static analysis tools. Recent progress in deep neural networks has led to increased use of neural bug detectors. In statically typed languages, a type checker is integrated into the compiler and thus taken into consideration when the neural bug detector is designed for these languages. Problem: However, prior studies overlook this aspect during the training and testing of neural bug detectors for dynamically typed languages. When an optional type checker is used, assessing existing neural bug detectors on bugs easily detectable by type checkers may impact their performance estimation. Moreover, including these bugs in the training set of neural bug detectors can shift their detection focus toward the wrong type of bugs. Contribution: We explore the impact of type checking on various neural bug detectors for variable misuse bugs, a common type targeted by neural bug detectors. Existing synthetic and real-world datasets are type-checked to evaluate the prevalence of type-related bugs. Then, we investigate how type-related bugs influence the training and testing of the neural bug detectors. Findings: Our findings indicate that existing bug detection datasets contain a significant proportion of type-related bugs. Building on this insight, we discover integrating the neural bug detector with a type checker can be beneficial, especially when the code is annotated with types. Further investigation reveals neural bug detectors perform better on type-related bugs than other bugs. Moreover, removing type-related bugs from the training data helps improve neural bug detectors' ability to identify bugs beyond the scope of type checkers.

Certifying Robustness of Graph Convolutional Networks for Node Perturbation with Polyhedra Abstract Interpretation

Graph convolutional neural networks (GCNs) are powerful tools for learning graph-based knowledge representations from training data. However, they are vulnerable to small perturbations in the input graph, which makes them susceptible to input faults or adversarial attacks. This poses a significant problem for GCNs intended to be used in critical applications, which need to provide certifiably robust services even in the presence of adversarial perturbations. We propose an improved GCN robustness certification technique for node classification in the presence of node feature perturbations. We introduce a novel polyhedra-based abstract interpretation approach to tackle specific challenges of graph data and provide tight upper and lower bounds for the robustness of the GCN. Experiments show that our approach simultaneously improves the tightness of robustness bounds as well as the runtime performance of certification. Moreover, our method can be used during training to further improve the robustness of GCNs.
