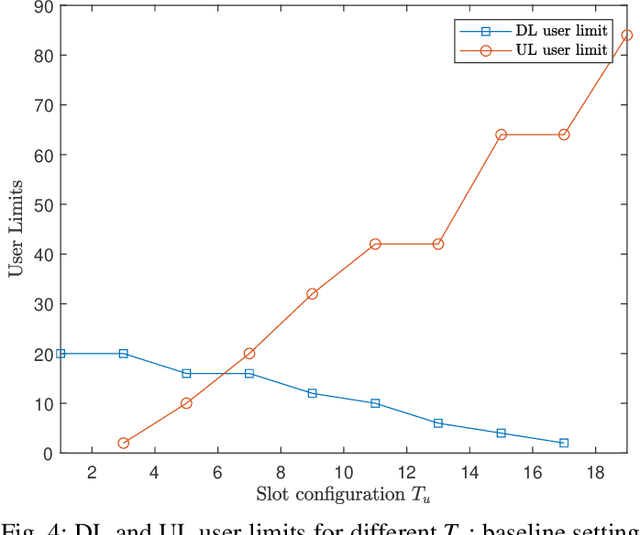

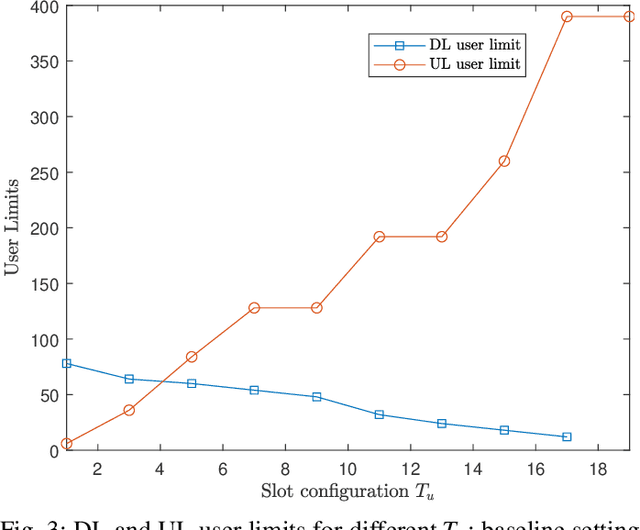

Planning 5G Networks for Rural Fixed Wireless Access

We study the planning of a rural 5G multi-user massive MIMO fixed wireless access system to offer fixed broadband service to homes. Specifically, we aim to determine the user limit, i.e., the maximum number of homes that can simultaneously receive target minimum bit rates (MBRs) on the downlink (DL) and on the uplink (UL) given a set of network resources and a cell radius. To compute that limit, we must understand how resources should be shared between the DL and UL and how user and stream selection, precoding and combining, and power distribution should be performed. We use block diagonalization and propose a static grouping strategy that organizes homes into fixed groups (of possibly different sizes) in the DL and UL; then we develop a simple approach to compute the user limit that we validate numerically. We study the impact of group size and show that smaller groups yield larger user limits in a 3.5~GHz band. We show how the user limit at different cell radii is impacted by the system bandwidth, the number of antennas at the BS and homes, the BS power, and the DL and UL MBRs. Lastly, we offer insights into how the network could be operated.

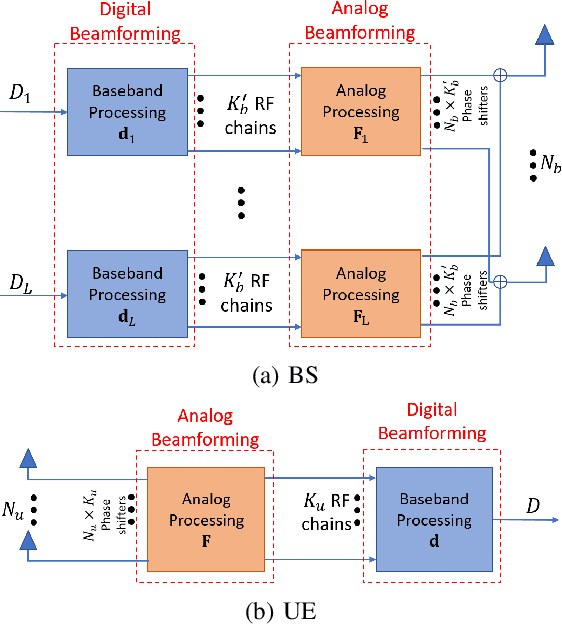

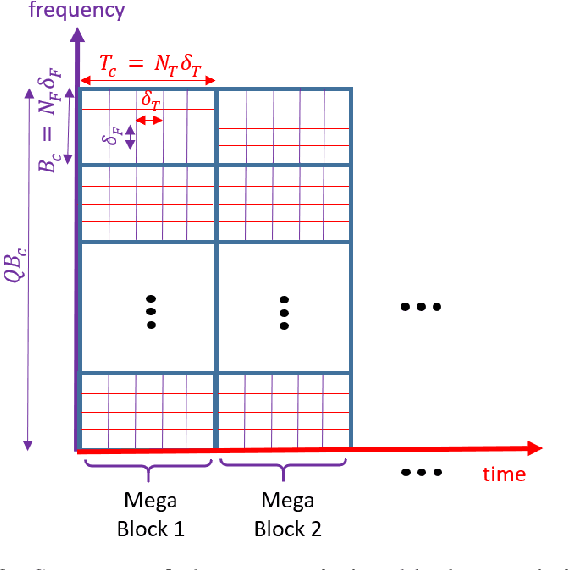

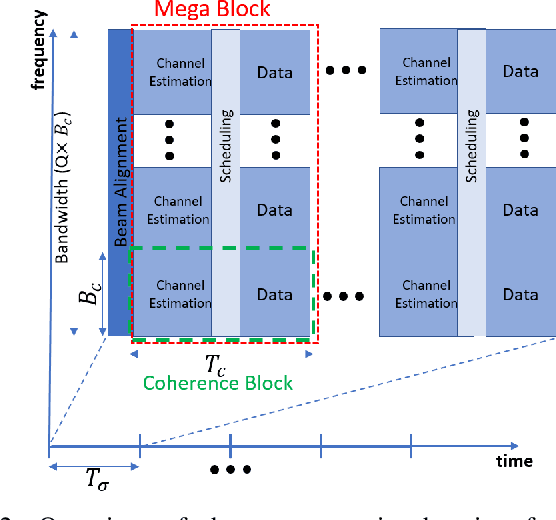

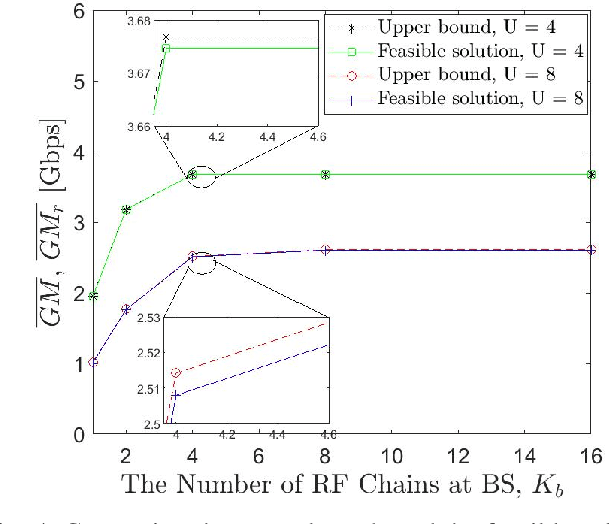

Multi-User Scheduling in Hybrid Millimeter Wave Massive MIMO Systems

While mmWave bands provide a large bandwidth for mobile broadband services, they suffer from severe path loss and shadowing. Multiple-antenna techniques such as beamforming (BF) can be applied to compensate the signal attenuation. We consider a special case of hybrid BF called per-stream hybrid BF (PSHBF) which is easier to implement than the general hybrid BF because it circumvents the need for joint analog-digital beamformer optimization. Employing BF at the base station enables the transmission of multiple data streams to several users in the same resource block. In this paper, we provide an offline study of proportional fair multi-user scheduling in a mmWave system with PSHBF to understand the impact of various system parameters on the performance. We formulate multi-user scheduling as an optimization problem. To tackle the non-convexity, we provide a feasible solution and show through numerical examples that the performance of the provided solution is very close to an upper-bound. Using this framework, we provide extensive numerical investigations revealing several engineering insights.
