Video-based computer aided arthroscopy for patient specific reconstruction of the Anterior Cruciate Ligament

The Anterior Cruciate Ligament (ACL) tear is a common medical condition that is treated using arthroscopy by pulling a tissue graft through a tunnel opened with a drill. The correct anatomical position and orientation of this tunnel is crucial for knee stability, and drilling an adequate bone tunnel is the most technically challenging part of the procedure. This paper presents, for the first time, a guidance system based solely on intra-operative video for guiding the drilling of the tunnel. Our solution uses small, easily recognizable visual markers that are attached to the bone and tools for estimating their relative pose. A recent registration algorithm is employed for aligning a pre-operative image of the patient's anatomy with a set of contours reconstructed by touching the bone surface with an instrumented tool. Experimental validation using ex-vivo data shows that the method enables the accurate registration of the pre-operative model with the bone, providing useful information for guiding the surgeon during the medical procedure.

3D Registration of Curves and Surfaces using Local Differential Information

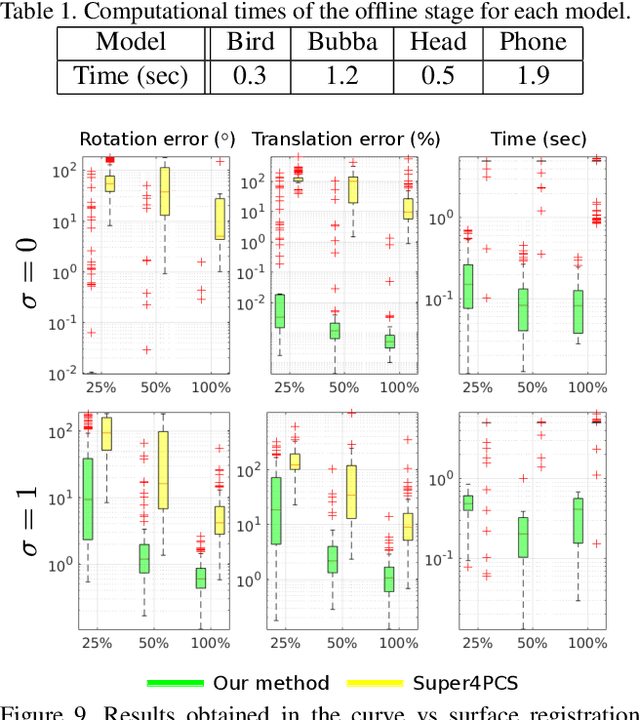

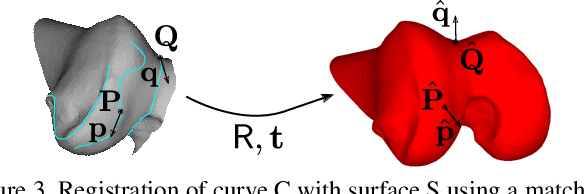

This article presents for the first time a global method for registering 3D curves with 3D surfaces without requiring an initialization. The algorithm works with 2-tuples point+vector that consist in pairs of points augmented with the information of their tangents or normals. A closed-form solution for determining the alignment transformation from a pair of matching 2-tuples is proposed. In addition, the set of necessary conditions for two 2-tuples to match is derived. This allows fast search of correspondences that are used in an hypothesise-and-test framework for accomplishing global registration. Comparative experiments demonstrate that the proposed algorithm is the first effective solution for curve vs surface registration, with the method achieving accurate alignment in situations of small overlap and large percentage of outliers in a fraction of a second. The proposed framework is extended to the cases of curve vs curve and surface vs surface registration, with the former being particularly relevant since it is also a largely unsolved problem.
