Dual-MPC Footstep Planning for Robust Quadruped Locomotion

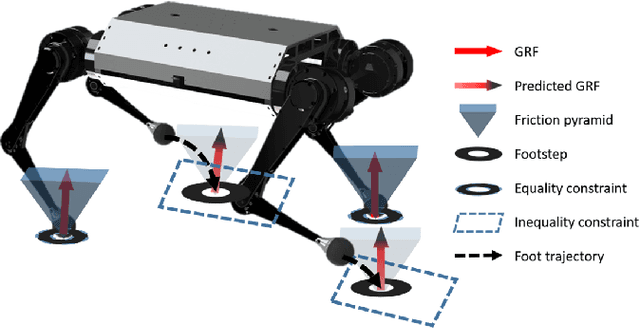

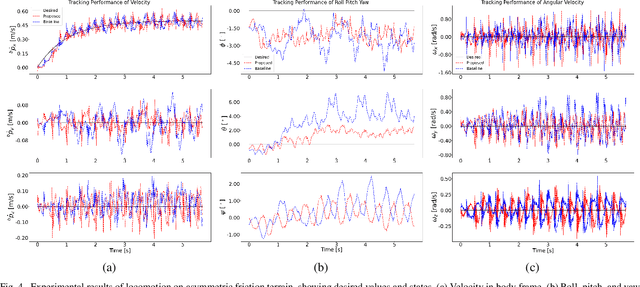

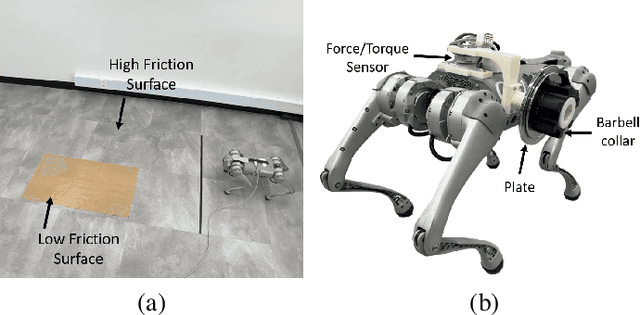

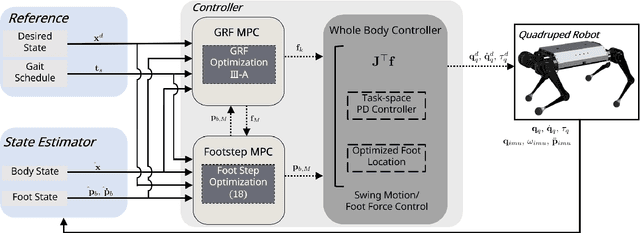

In this paper, we propose a footstep planning strategy based on model predictive control (MPC) that enables robust regulation of body orientation against undesired body rotations by optimizing footstep placement. Model-based locomotion approaches typically adopt heuristic methods or planning based on the linear inverted pendulum model. These methods account for linear velocity in footstep planning, while excluding angular velocity, which leads to angular momentum being handled exclusively via ground reaction force (GRF). Footstep planning based on MPC that takes angular velocity into account recasts the angular momentum control problem as a dual-input approach that coordinates GRFs and footstep placement, instead of optimizing GRFs alone, thereby improving tracking performance. A mutual-feedback loop couples the footstep planner and the GRF MPC, with each using the other's solution to iteratively update footsteps and GRFs. The use of optimal solutions reduces body oscillation and enables extended stance and swing phases. The method is validated on a quadruped robot, demonstrating robust locomotion with reduced oscillations, longer stance and swing phases across various terrains.

Ground-Aware Octree-A* Hybrid Path Planning for Memory-Efficient 3D Navigation of Ground Vehicles

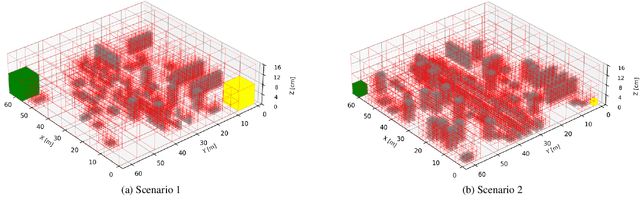

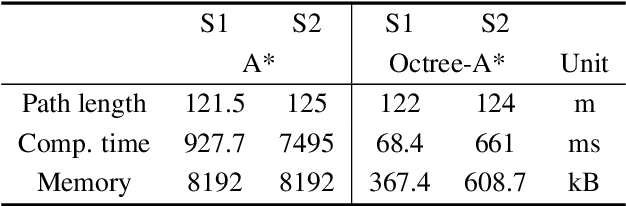

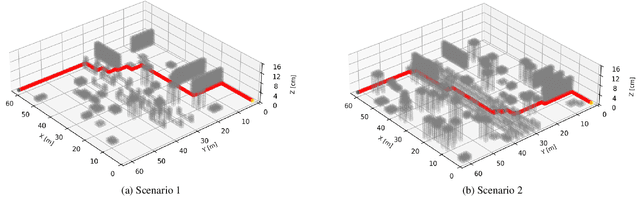

In this paper, we propose a 3D path planning method that integrates the A* algorithm with the octree structure. Unmanned Ground Vehicles (UGVs) and legged robots have been extensively studied, enabling locomotion across a variety of terrains. Advances in mobility have enabled obstacles to be regarded not only as hindrances to be avoided, but also as navigational aids when beneficial. A modified 3D A* algorithm generates an optimal path by leveraging obstacles during the planning process. By incorporating a height-based penalty into the cost function, the algorithm enables the use of traversable obstacles to aid locomotion while avoiding those that are impassable, resulting in more efficient and realistic path generation. The octree-based 3D grid map achieves compression by merging high-resolution nodes into larger blocks, especially in obstacle-free or sparsely populated areas. This reduces the number of nodes explored by the A* algorithm, thereby improving computational efficiency and memory usage, and supporting real-time path planning in practical environments. Benchmark results demonstrate that the use of octree structure ensures an optimal path while significantly reducing memory usage and computation time.

Temperature Compensation Method of Six-Axis Force/Torque Sensor Using Gated Recurrent Unit

This study aims to enhance the accuracy of a six-axis force/torque sensor compared to existing approaches that utilize Multi-Layer Perceptron (MLP) and the Least Square Method. The sensor used in this study is based on a photo-coupler and operates with infrared light, making it susceptible to dark current effects, which cause drift due to temperature variations. Additionally, the sensor is compact and lightweight (45g), resulting in a low thermal capacity. Consequently, even small amounts of heat can induce rapid temperature changes, affecting the sensor's performance in real time. To address these challenges, this study compares the conventional MLP approach with the proposed Gated Recurrent Unit (GRU)-based method. Experimental results demonstrate that the GRU approach, leveraging sequential data, achieves superior performance.

Parameter Optimization of Optical Six-Axis Force/Torque Sensor for Legged Robots

This paper introduces a novel six-axis force/torque sensor tailored for compact and lightweight legged robots. Unlike traditional strain gauge-based sensors, the proposed non-contact design employs photocouplers, enhancing resistance to physical impacts and reducing damage risk. This approach simplifies manufacturing, lowers costs, and meets the demands of legged robots by combining small size, light weight, and a wide force measurement range. A methodology for optimizing sensor parameters is also presented, focusing on maximizing sensitivity and minimizing error. Precise modeling and analysis of objective functions enabled the derivation of optimal design parameters. The sensor's performance was validated through extensive testing and integration into quadruped robots, demonstrating alignment with theoretical modeling. The sensor's precise measurement capabilities make it suitable for diverse robotic environments, particularly in analyzing interactions between robot feet and the ground. This innovation addresses existing sensor limitations while contributing to advancements in robotics and sensor technology, paving the way for future applications in robotic systems.
