Spatial Deep Learning for Wireless Scheduling

Aug 04, 2018
Wei Cui, Kaiming Shen, Wei Yu

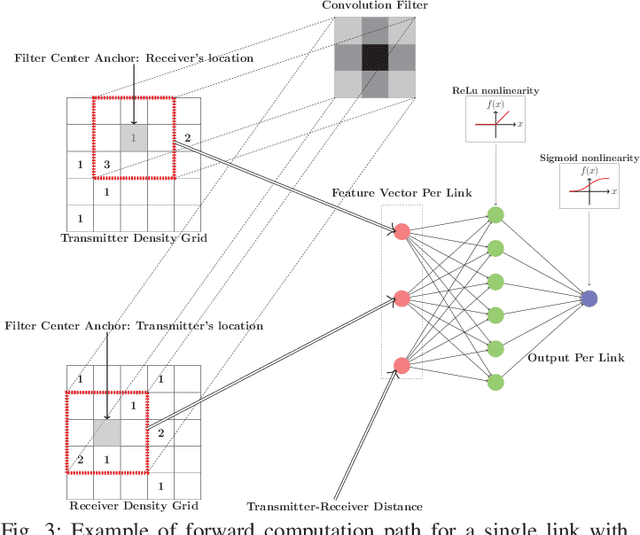

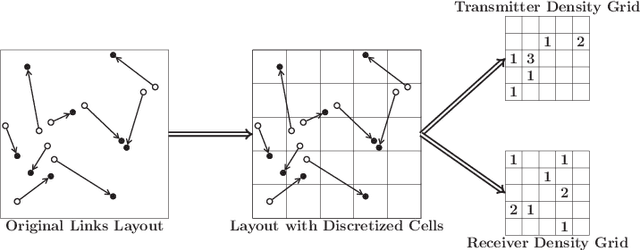

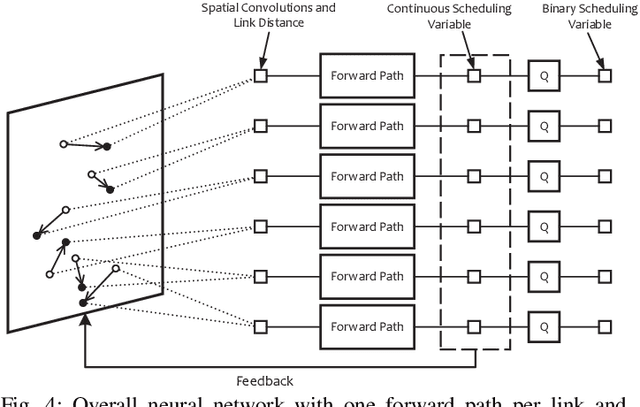

The optimal scheduling of interfering links in a dense wireless network with full frequency reuse is a challenging task. The traditional method involves first estimating all the interfering channel strengths then optimizing the scheduling based on the model. This model-based method is however resource and computationally intensive, because channel estimation is expensive in dense networks; further, finding even a locally optimal solution of the resulting optimization problem may be computationally complex. This paper shows that by using a deep learning approach, it is possible to bypass channel estimation and to schedule links efficiently based solely on the geographic locations of transmitters and receivers. This is accomplished by using locally optimal schedules generated using a fractional programming method for randomly deployed device-to-device networks as training data, and by using a novel neural network architecture that takes the geographic spatial convolutions of the interfering or interfered neighboring nodes as input over multiple feedback stages to learn the optimum solution. The resulting neural network gives near-optimal performance for sum-rate maximization and is capable of generalizing to larger deployment areas and to deployments of different link densities. Finally, this paper proposes a novel scheduling approach that utilizes the sum-rate optimal scheduling heuristics over judiciously chosen subsets of links to provide fair scheduling across the network.

* This paper is the full version of the paper to be presented at IEEE Global Communications Conference 2018. It includes 30 pages and 13 figures
