Multi-Scale Structure-Aware Network for Human Pose Estimation

Sep 16, 2018
Lipeng Ke, Ming-Ching Chang, Honggang Qi, Siwei Lyu

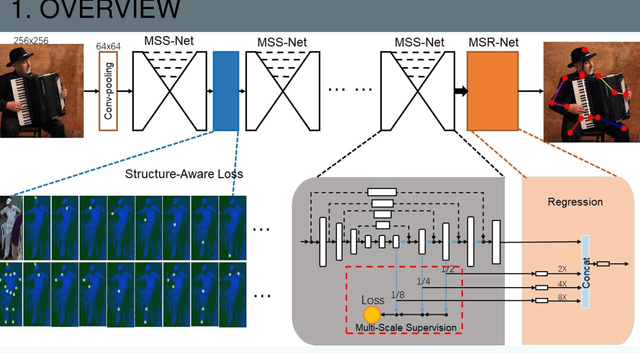

Figure 1 for Multi-Scale Structure-Aware Network for Human Pose Estimation
Figure 2 for Multi-Scale Structure-Aware Network for Human Pose Estimation

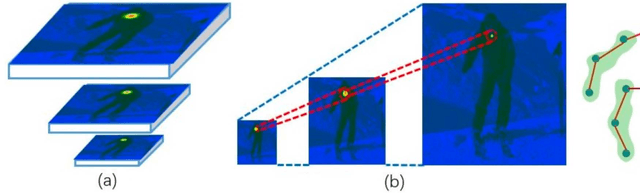

Figure 3 for Multi-Scale Structure-Aware Network for Human Pose Estimation
Figure 4 for Multi-Scale Structure-Aware Network for Human Pose Estimation

Share this with someone who'll enjoy it:

We develop a robust multi-scale structure-aware neural network for human pose estimation. This method improves the recent deep conv-deconv hourglass models with four key improvements: (1) multi-scale supervision to strengthen contextual feature learning in matching body keypoints by combining feature heatmaps across scales, (2) multi-scale regression network at the end to globally optimize the structural matching of the multi-scale features, (3) structure-aware loss used in the intermediate supervision and at the regression to improve the matching of keypoints and respective neighbors to infer a higher-order matching configurations, and (4) a keypoint masking training scheme that can effectively fine-tune our network to robustly localize occluded keypoints via adjacent matches. Our method can effectively improve state-of-the-art pose estimation methods that suffer from difficulties in scale varieties, occlusions, and complex multi-person scenarios. This multi-scale supervision tightly integrates with the regression network to effectively (i) localize keypoints using the ensemble of multi-scale features, and (ii) infer global pose configuration by maximizing structural consistencies across multiple keypoints and scales. The keypoint masking training enhances these advantages to focus learning on hard occlusion samples. Our method achieves the leading position in the MPII challenge leaderboard among the state-of-the-art methods.

* Accepted by ECCV2018
