Spiking Neural Network Integrated Circuits: A Review of Trends and Future Directions

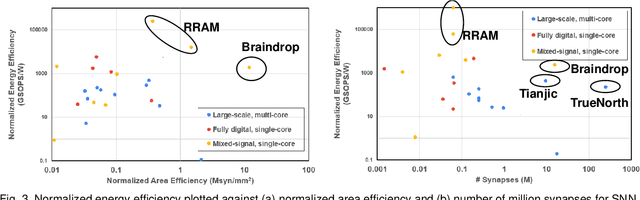

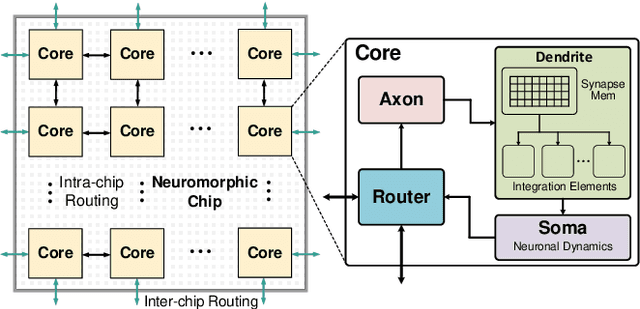

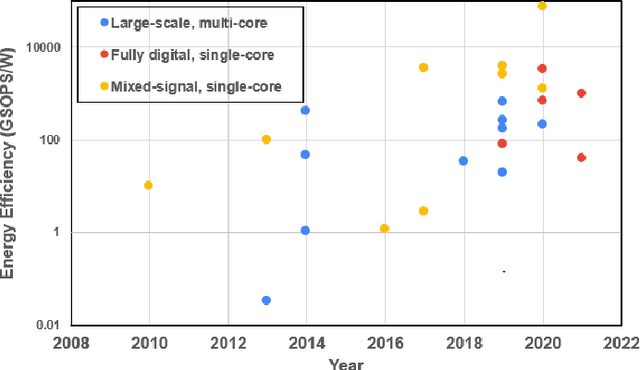

In this paper, we reviewed Spiking neural network (SNN) integrated circuit designs and analyzed the trends among mixed-signal cores, fully digital cores and large-scale, multi-core designs. Recently reported SNN integrated circuits are compared under three broad categories: (a) Large-scale multi-core designs that have dedicated NOC for spike routing, (b) digital single-core designs and (c) mixed-signal single-core designs. Finally, we finish the paper with some directions for future progress.

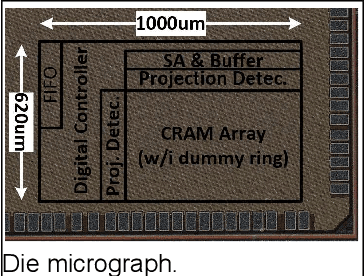

A 915-1220 TOPS/W Hybrid In-Memory Computing based Image Restoration and Region Proposal Integrated Circuit for Neuromorphic Vision Sensors in 65nm CMOS

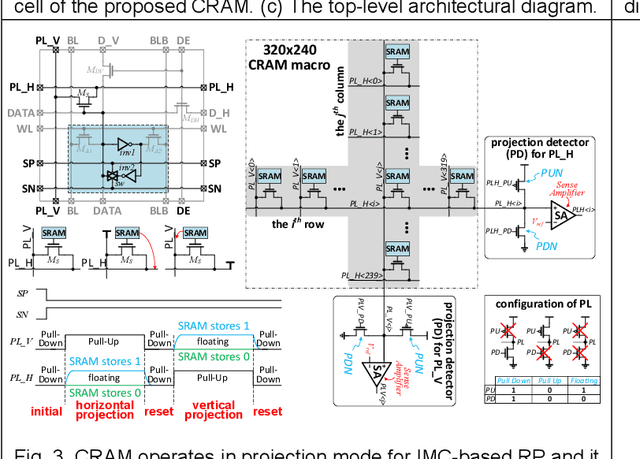

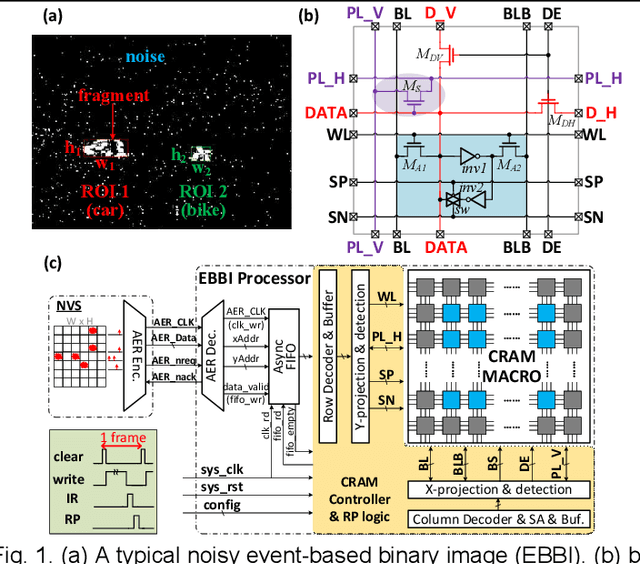

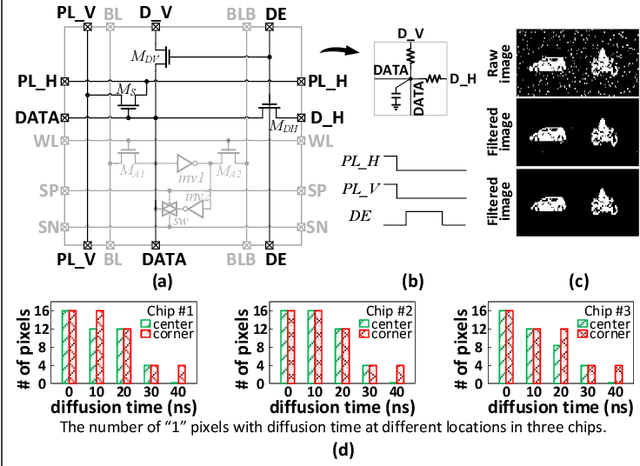

In this work, we present a hybrid memory bit cell - collocated SRAM and DRAM (CRAM) consisting of 11 transistors for in-memory computing (IMC) based image restoration (IR) and region proposal (RP). A robust RP updated algorithm is proposed to improve the performance. This work demonstrates IMC based global parallel diffusion and column/row-wise projection to achieve a maximal energy efficiency of 1220 TOPS/W for image restoration and 915 TOPS/W when combined with region proposal.
