Evaluation of Smartphone IMUs for Small Mobile Search and Rescue Robots

Small mobile robots are an important class of Search and Rescue Robots. Integrating all required components into such small robots is a difficult engineering task. Smartphones have already been made small, lightweight and cheap by the industry and are thus an excellent candidate as main controller for such robots. In this paper we outline how ROS can be used on Android devices and then evaluate one sensor which is very important for mobile robots: the Inertial Measurement Unit (IMU). Experiments are performed under static and dynamic conditions to measure the error of the IMUs of three smartphones and three professional IMUs. In the experiments we make use of a tracking system and an autonomous mobile robot.

Learning Autonomous Exploration and Mapping with Semantic Vision

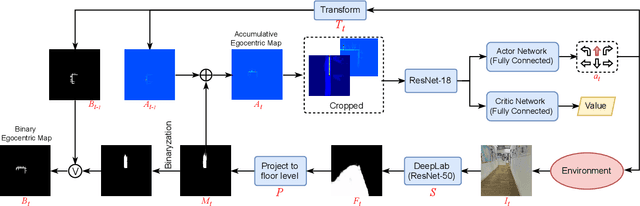

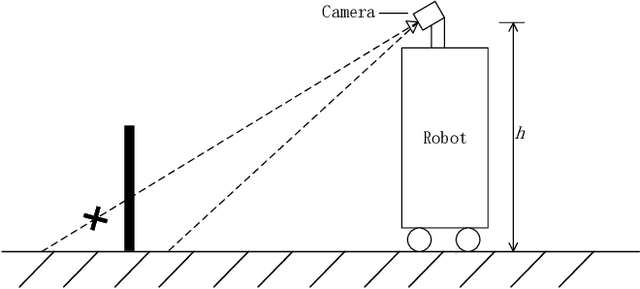

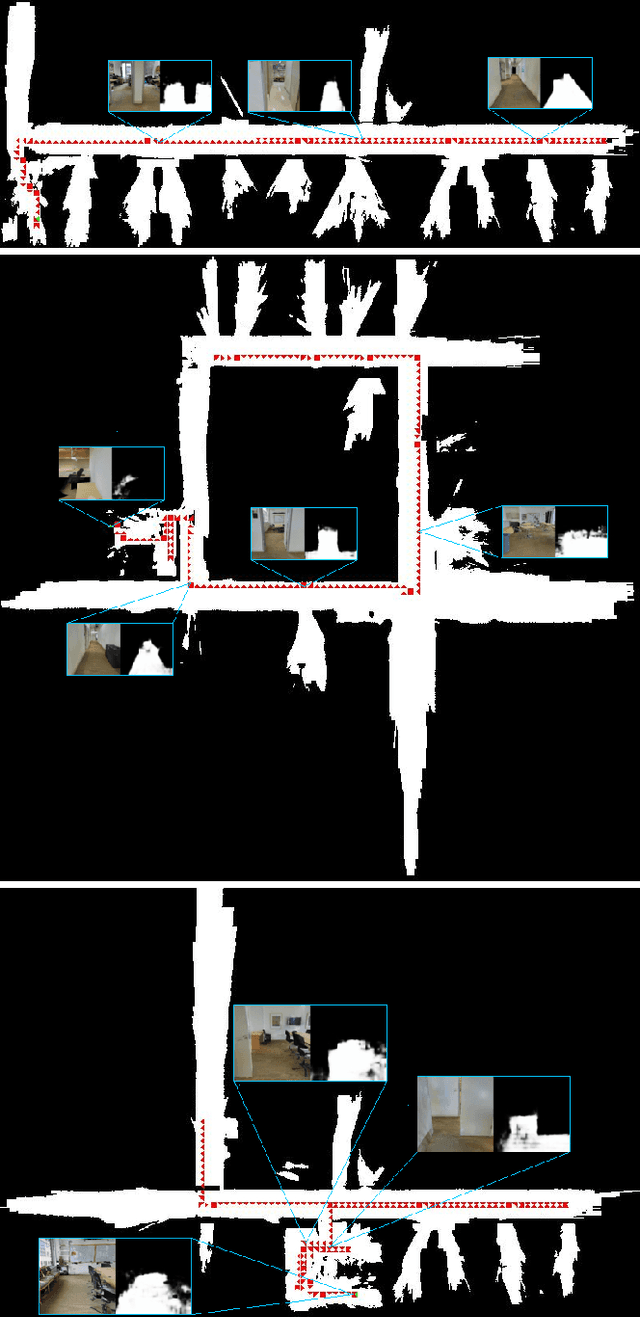

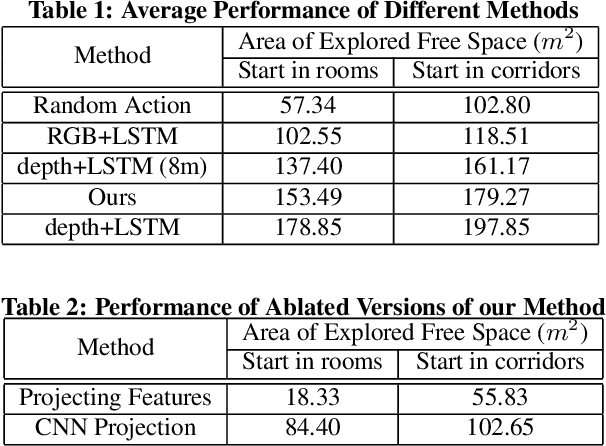

We address the problem of autonomous exploration and mapping for a mobile robot using visual inputs. Exploration and mapping is a well-known and key problem in robotics, the goal of which is to enable a robot to explore a new environment autonomously and create a map for future usage. Different to classical methods, we propose a learning-based approach this work based on semantic interpretation of visual scenes. Our method is based on a deep network consisting of three modules: semantic segmentation network, mapping using camera geometry and exploration action network. All modules are differentiable, so the whole pipeline is trained end-to-end based on actor-critic framework. Our network makes action decision step by step and generates the free space map simultaneously. To our best knowledge, this is the first algorithm that formulate exploration and mapping into learning framework. We validate our approach in simulated real world environments and demonstrate performance gains over competitive baseline approaches.
