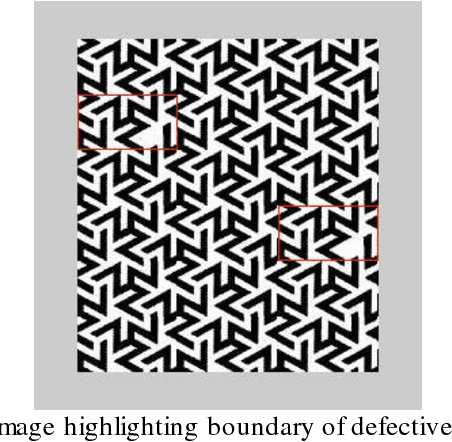

Synthesis of Near-regular Natural Textures

Texture synthesis is widely used in the field of computer graphics, vision, and image processing. In the present paper, a texture synthesis algorithm is proposed for near-regular natural textures with the help of a representative periodic pattern extracted from the input textures using distance matching function. Local texture statistics is then analyzed against global texture statistics for non-overlapping windows of size same as periodic pattern size and a representative periodic pattern is extracted from the image and used for texture synthesis, while preserving the global regularity and visual appearance. Validation of the algorithm based on experiments with synthetic textures whose periodic pattern sizes are known and containing camouflages / defects proves the strength of the algorithm for texture synthesis and its application in detection of camouflages / defects in textures.

Texture Defect Detection in Gradient Space

In this paper, we propose a machine vision algorithm for automatically detecting defects in patterned textures with the help of gradient space and its energy. Experiments on real fabric images with defects show that the proposed method can be used for automatic detection of fabric defects in textile industries.

Periodicity Extraction using Superposition of Distance Matching Function and One-dimensional Haar Wavelet Transform

Periodicity of a texture is one of the important visual characteristics and is often used as a measure for textural discrimination at the structural level. Knowledge about periodicity of a texture is very essential in the field of texture synthesis and texture compression and also in the design of frieze and wall papers. In this paper, we propose a method of periodicity extraction from noisy images based on superposition of distance matching function (DMF) and wavelet decomposition without de-noising the test images. Overall DMFs are subjected to single-level Haar wavelet decomposition to obtain approximate and detailed coefficients. Extracted coefficients help in determination of periodicities in row and column directions. We illustrate the usefulness and the effectiveness of the proposed method in a texture synthesis application.

Automatic Detection of Texture Defects Using Texture-Periodicity and Gabor Wavelets

In this paper, we propose a machine vision algorithm for automatically detecting defects in textures belonging to 16 out of 17 wallpaper groups using texture-periodicity and a family of Gabor wavelets. Input defective images are subjected to Gabor wavelet transformation in multi-scales and multi-orientations and a resultant image is obtained in L2 norm. The resultant image is split into several periodic blocks and energy of each block is used as a feature space to automatically identify defective and defect-free blocks using Ward's hierarchical clustering. Experiments on defective fabric images of three major wallpaper groups, namely, pmm, p2 and p4m, show that the proposed method is robust in finding fabric defects without human intervention and can be used for automatic defect detection in fabric industries.

GLCM-based chi-square histogram distance for automatic detection of defects on patterned textures

Chi-square histogram distance is one of the distance measures that can be used to find dissimilarity between two histograms. Motivated by the fact that texture discrimination by human vision system is based on second-order statistics, we make use of histogram of gray-level co-occurrence matrix (GLCM) that is based on second-order statistics and propose a new machine vision algorithm for automatic defect detection on patterned textures. Input defective images are split into several periodic blocks and GLCMs are computed after quantizing the gray levels from 0-255 to 0-63 to keep the size of GLCM compact and to reduce computation time. Dissimilarity matrix derived from chi-square distances of the GLCMs is subjected to hierarchical clustering to automatically identify defective and defect-free blocks. Effectiveness of the proposed method is demonstrated through experiments on defective real-fabric images of 2 major wallpaper groups (pmm and p4m groups).

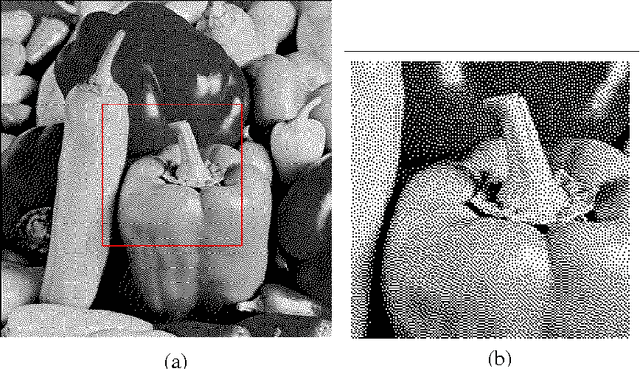

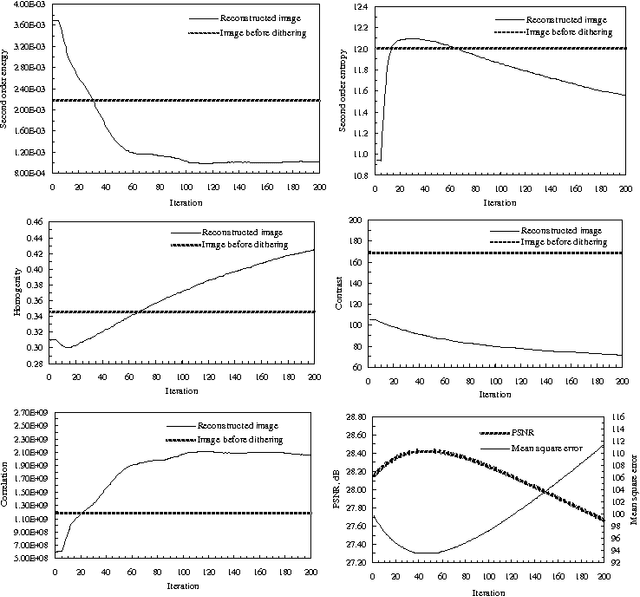

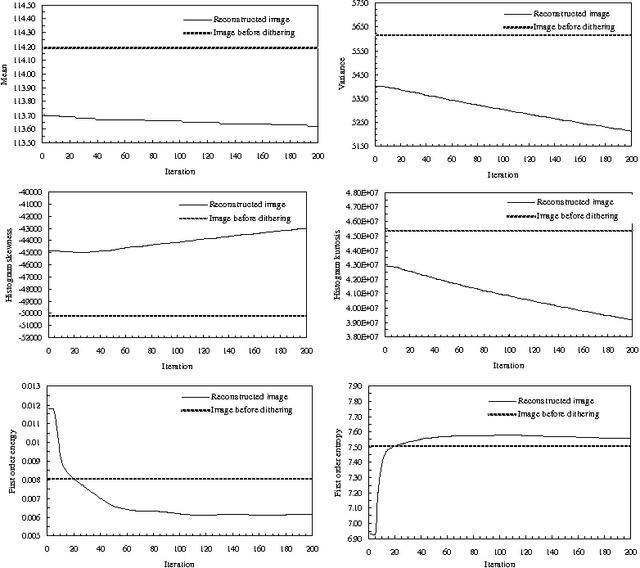

Undithering using linear filtering and non-linear diffusion techniques

Data compression is a method of improving the efficiency of transmission and storage of images. Dithering, as a method of data compression, can be used to convert an 8-bit gray level image into a 1-bit / binary image. Undithering is the process of reconstruction of gray image from binary image obtained from dithering of gray image. In the present paper, I propose a method of undithering using linear filtering followed by anisotropic diffusion which brings the advantage of smoothing and edge enhancement. First-order statistical parameters, second-order statistical parameters, mean-squared error (MSE) between reconstructed image and the original image before dithering, and peak signal to noise ratio (PSNR) are evaluated at each step of diffusion. Results of the experiments show that the reconstructed image is not as sharp as the image before dithering but a large number of gray values are reproduced with reference to those of the original image prior to dithering.
