Picosecond Hyperspectral Fringe Pattern Projection for 3D Surface Measurement

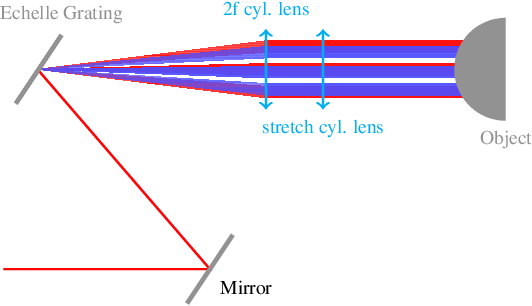

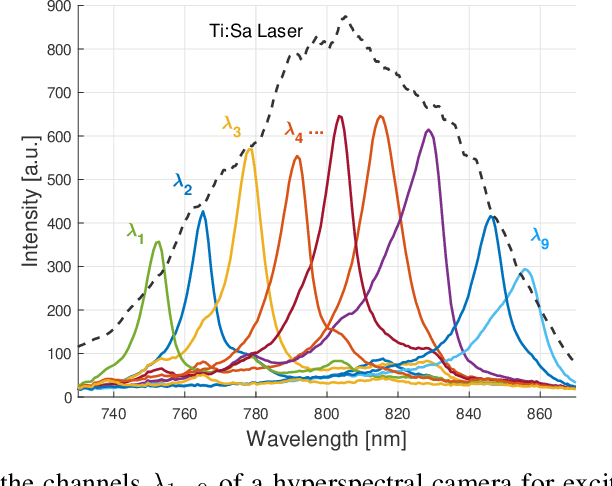

Active stereovision systems for the 3D measurement of surfaces rely on the sequential projection of different fringe patterns onto the scene to robustly and accurately generate 3D surface data. This limits the temporal resolution to the time by which a sufficiently high number of patterns can be projected and recorded. By encoding patterns spectrally and recording them with a hyperspectral imager, it is possible to record several patterns in a single image, limiting the temporal resolution to only the duration of the illumination. A picosecond 3D surface measurement was demonstrated using a high pulse energy femtosecond Ti:Sa laser, spectrally broadened in a hollow core fiber, and two hyperspectral cameras recording the patterns generated by diffraction at an Echelle grating.
