End-to-end 3D shape inverse rendering of different classes of objects from a single input image

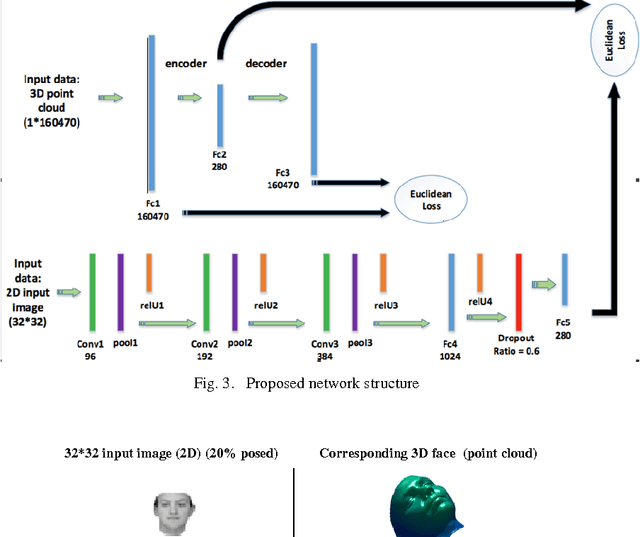

In this paper a semi-supervised deep framework is proposed for the problem of 3D shape inverse rendering from a single 2D input image. The main structure of proposed framework consists of unsupervised pre-trained components which significantly reduce the need to labeled data for training the whole framework. using labeled data has the advantage of achieving to accurate results without the need to predefined assumptions about image formation process. Three main components are used in the proposed network: an encoder which maps 2D input image to a representation space, a 3D decoder which decodes a representation to a 3D structure and a mapping component in order to map 2D to 3D representation. The only part that needs label for training is the mapping part with not too many parameters. The other components in the network can be pre-trained unsupervised using only 2D images or 3D data in each case. The way of reconstructing 3D shapes in the decoder component, inspired by the model based methods for 3D reconstruction, maps a low dimensional representation to 3D shape space with the advantage of extracting the basis vectors of shape space from training data itself and is not restricted to a small set of examples as used in predefined models. Therefore, the proposed framework deals directly with coordinate values of the point cloud representation which leads to achieve dense 3D shapes in the output. The experimental results on several benchmark datasets of objects and human faces and comparing with recent similar methods shows the power of proposed network in recovering more details from single 2D images.

Deep Structure for end-to-end inverse rendering

Inverse rendering in a 3D format denoted to recovering the 3D properties of a scene given 2D input image(s) and is typically done using 3D Morphable Model (3DMM) based methods from single view images. These models formulate each face as a weighted combination of some basis vectors extracted from the training data. In this paper a deep framework is proposed in which the coefficients and basis vectors are computed by training an autoencoder network and a Convolutional Neural Network (CNN) simultaneously. The idea is to find a common cause which can be mapped to both the 3D structure and corresponding 2D image using deep networks. The empirical results verify the power of deep framework in finding accurate 3D shapes of human faces from their corresponding 2D images on synthetic datasets of human faces.
