Resource Constrained Neural Networks for 5G Direction-of-Arrival Estimation in Micro-controllers

With the introduction of shared spectrum sensing and beam-forming based multi-antenna transceivers, 5G networks demand spectrum sensing to identify opportunities in time, frequency, and spatial domains. Narrow beam-forming makes it difficult to have spatial sensing (direction-of-arrival, DoA, estimation) in a centralized manner, and with the evolution of paradigms such as artificial intelligence of Things (AIOT), ultra-reliable low latency communication (URLLC) services and distributed networks, intelligence for edge devices (Edge-AI) is highly desirable. It helps to reduce the data-communication overhead compared to cloud-AI-centric networks and is more secure and free from scalability limitations. However, achieving desired functional accuracy is a challenge on edge devices such as microcontroller units (MCU) due to area, memory, and power constraints. In this work, we propose low complexity neural network-based algorithm for accurate DoA estimation and its efficient mapping on the off-the-self MCUs. An ad-hoc graphical-user interface (GUI) is developed to configure the STM32 NUCLEO-H743ZI2 MCU with the proposed algorithm and to validate its functionality. The performance of the proposed algorithm is analyzed for different signal-to-noise ratios (SNR), word-length, the number of antennas, and DoA resolution. In-depth experimental results show that it outperforms the conventional statistical spatial sensing approach.

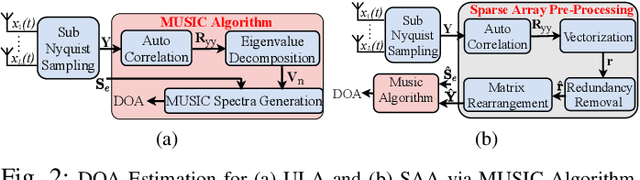

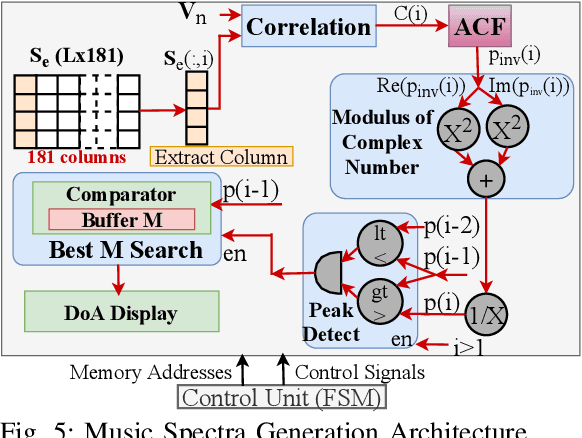

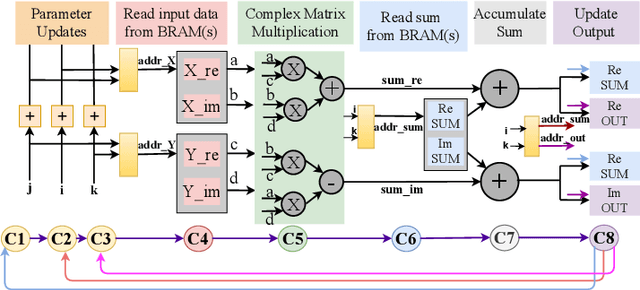

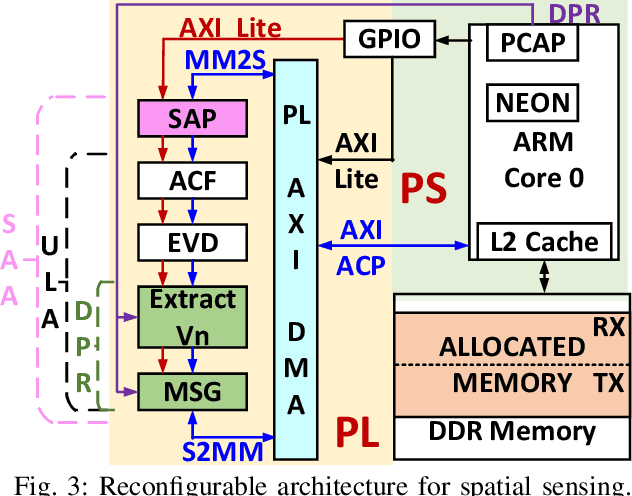

Reconfigurable Architecture for Spatial Sensing in Wideband Radio Front-End

The deployment of cellular spectrum in licensed, shared and unlicensed spectrum demands wideband sensing over non-contiguous sub-6 GHz spectrum. To improve the spectrum and energy efficiency, beamforming and massive multi-antenna systems are being explored which demand spatial sensing i.e. blind identification of vacant frequency bands and direction-of-arrival (DoA) of the occupied bands. We propose a reconfigurable architecture to perform spatial sensing of multi-band spectrum digitized via wideband radio front-end comprising of the sparse antenna array (SAA) and Sub-Nyquist Sampling (SNS). The proposed architecture comprises SAA pre-processing and algorithms to perform spatial sensing directly on SNS samples. The proposed architecture is realized on Zynq System on Chip (SoC), consisting of the ARM processor and FPGA, via hardware-software co-design (HSCD). Using the dynamic partial reconfiguration (DPR), on-the-fly switching between algorithms depending on the number of active signals in the sensed spectrum is enabled. The functionality, resource utilization, and execution time of the proposed architecture are analyzed for various HSCD configurations, word-length, number of digitized samples, signal-to-noise ratio (SNR), and antenna array (sparse/non-sparse).
