Multi-Level Temporal Graph Networks with Local-Global Fusion for Industrial Fault Diagnosis

Fault detection and diagnosis are critical for the optimal and safe operation of industrial processes. The correlations among sensors often display non-Euclidean structures where graph neural networks (GNNs) are widely used therein. However, for large-scale systems, local, global, and dynamic relations extensively exist among sensors, and traditional GNNs often overlook such complex and multi-level structures for various problems including the fault diagnosis. To address this issue, we propose a structure-aware multi-level temporal graph network with local-global feature fusion for industrial fault diagnosis. First, a correlation graph is dynamically constructed using Pearson correlation coefficients to capture relationships among process variables. Then, temporal features are extracted through long short-term memory (LSTM)-based encoder, whereas the spatial dependencies among sensors are learned by graph convolution layers. A multi-level pooling mechanism is used to gradually coarsen and learn meaningful graph structures, to capture higher-level patterns while keeping important fault related details. Finally, a fusion step is applied to combine both detailed local features and overall global patterns before the final prediction. Experimental evaluations on the Tennessee Eastman process (TEP) demonstrate that the proposed model achieves superior fault diagnosis performance, particularly for complex fault scenarios, outperforming various baseline methods.

Transformer-based Capacity Prediction for Lithium-ion Batteries with Data Augmentation

Lithium-ion batteries are pivotal to technological advancements in transportation, electronics, and clean energy storage. The optimal operation and safety of these batteries require proper and reliable estimation of battery capacities to monitor the state of health. Current methods for estimating the capacities fail to adequately account for long-term temporal dependencies of key variables (e.g., voltage, current, and temperature) associated with battery aging and degradation. In this study, we explore the usage of transformer networks to enhance the estimation of battery capacity. We develop a transformer-based battery capacity prediction model that accounts for both long-term and short-term patterns in battery data. Further, to tackle the data scarcity issue, data augmentation is used to increase the data size, which helps to improve the performance of the model. Our proposed method is validated with benchmark datasets. Simulation results show the effectiveness of data augmentation and the transformer network in improving the accuracy and robustness of battery capacity prediction.

Improving Convolutional Neural Networks for Fault Diagnosis by Assimilating Global Features

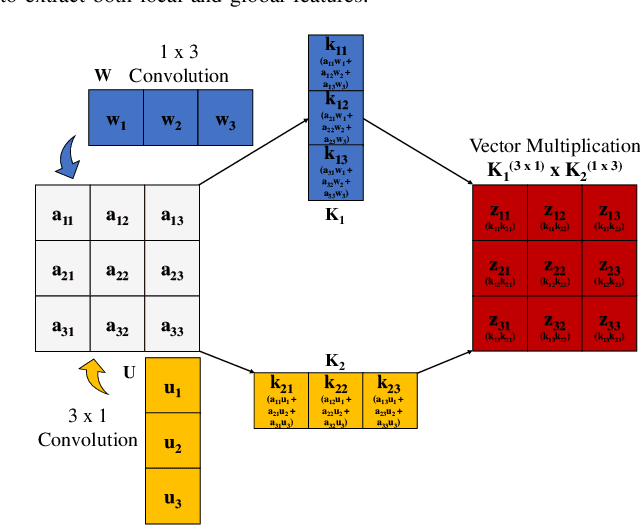

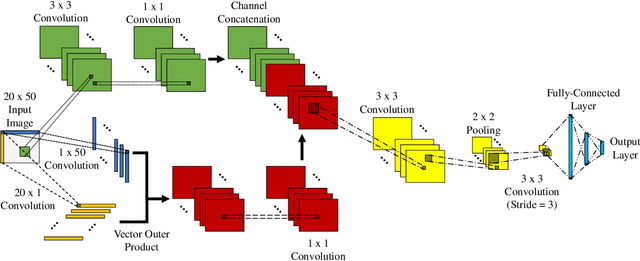

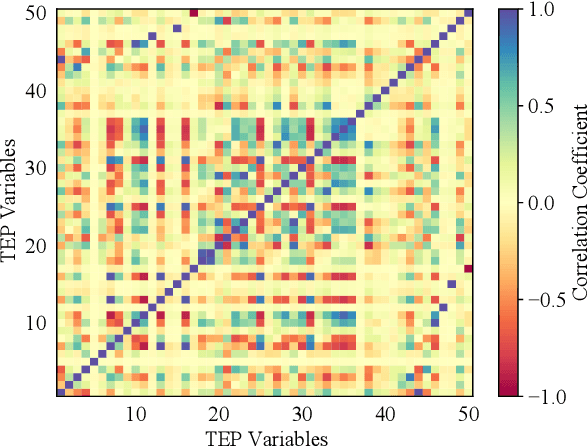

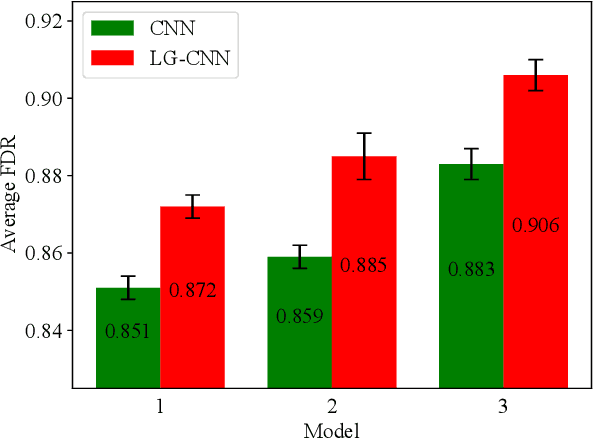

Deep learning techniques have become prominent in modern fault diagnosis for complex processes. In particular, convolutional neural networks (CNNs) have shown an appealing capacity to deal with multivariate time-series data by converting them into images. However, existing CNN techniques mainly focus on capturing local or multi-scale features from input images. A deep CNN is often required to indirectly extract global features, which are critical to describe the images converted from multivariate dynamical data. This paper proposes a novel local-global CNN (LG-CNN) architecture that directly accounts for both local and global features for fault diagnosis. Specifically, the local features are acquired by traditional local kernels whereas global features are extracted by using 1D tall and fat kernels that span the entire height and width of the image. Both local and global features are then merged for classification using fully-connected layers. The proposed LG-CNN is validated on the benchmark Tennessee Eastman process (TEP) dataset. Comparison with traditional CNN shows that the proposed LG-CNN can greatly improve the fault diagnosis performance without significantly increasing the model complexity. This is attributed to the much wider local receptive field created by the LG-CNN than that by CNN. The proposed LG-CNN architecture can be easily extended to other image processing and computer vision tasks.

Unifying Theorems for Subspace Identification and Dynamic Mode Decomposition

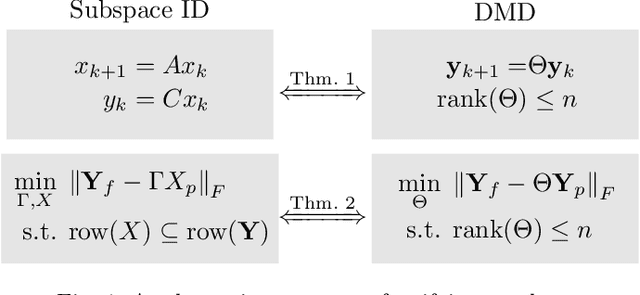

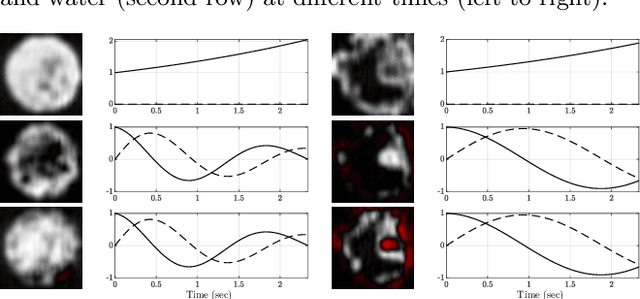

This paper presents unifying results for subspace identification (SID) and dynamic mode decomposition (DMD) for autonomous dynamical systems. We observe that SID seeks to solve an optimization problem to estimate an extended observability matrix and a state sequence that minimizes the prediction error for the state-space model. Moreover, we observe that DMD seeks to solve a rank-constrained matrix regression problem that minimizes the prediction error of an extended autoregressive model. We prove that existence conditions for perfect (error-free) state-space and low-rank extended autoregressive models are equivalent and that the SID and DMD optimization problems are equivalent. We exploit these results to propose a SID-DMD algorithm that delivers a provably optimal model and that is easy to implement. We demonstrate our developments using a case study that aims to build dynamical models directly from video data.
