FD-SLAM: Fast Dense Radar-Inertial SLAM with Frequency-Domain Loop Closure and Pose Graph Optimization

Radar SLAM is attractive for autonomous ground vehicles operating in visually degraded environments, however, scanning radars are noisy, have low scanning rates, and their measurements are challenging to match reliably over long trajectories. This paper presents FD-SLAM, a fast dense radar-inertial SLAM system that extends dense radar-inertial odometry with frequency-domain loop closure and pose graph optimization. The proposed method preserves an image-like structure of scanning radar measurements by using a compact frequency-domain polar descriptor for loop-candidate retrieval and a multi-stage verification pipeline based on temporal filtering, phase-correlation screening, scan-alignment similarity, and geometric consistency checks. Verified loop closures are added as non-sequential constraints in an SE(2) pose graph together with radar-inertial odometry factors. FD-SLAM is evaluated on a publicly available dataset using standard KITTI evaluation metrics. The results show that FD-SLAM improves FD-RIO baseline, achieves competitive performance against current state-of-the-art radar SLAM methods, and provides favorable rotational accuracy across multiple evaluated driving trajectories. Runtime analysis further indicates that the radar-inertial front-end operates above the radar sampling rate on a CPU-only setup, while loop closure detection and graph optimization remain suitable for parallel background execution.

FD-RIO: Fast Dense Radar Inertial Odometry

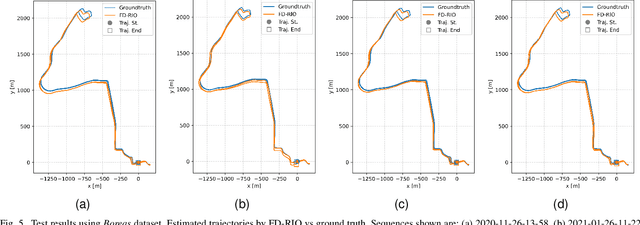

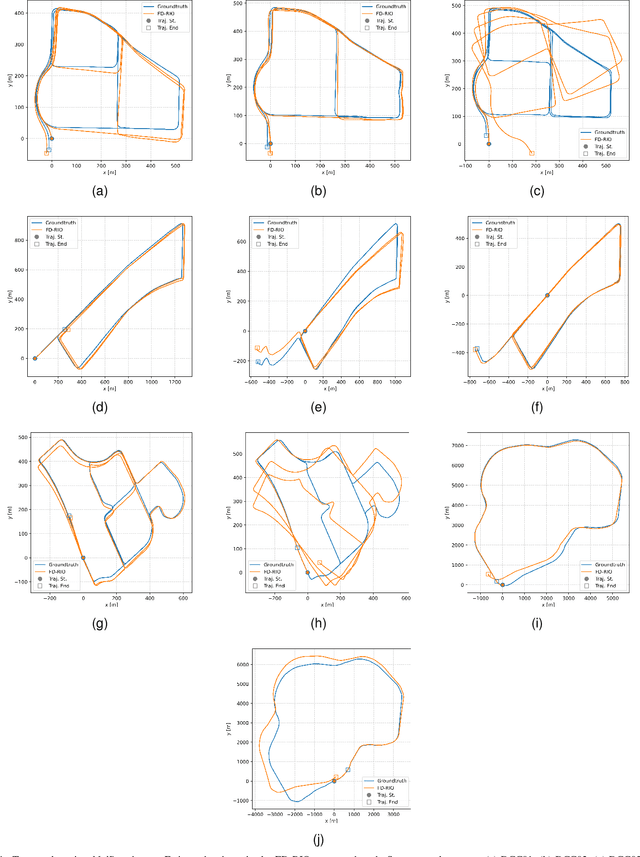

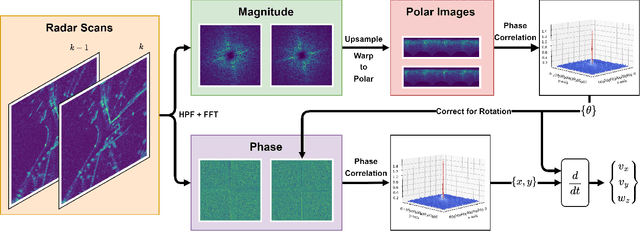

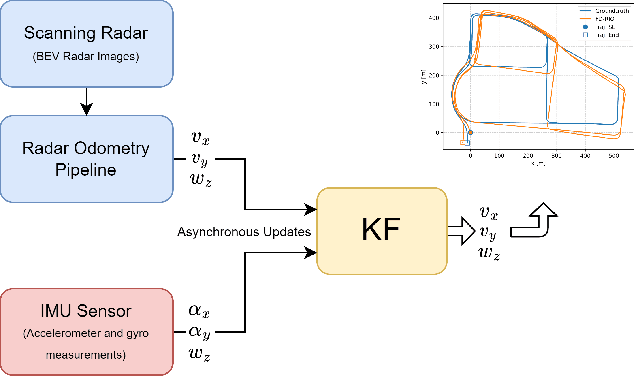

Radar-based odometry is a popular solution for ego-motion estimation in conditions where other exteroceptive sensors may degrade, whether due to poor lighting or challenging weather conditions; however, scanning radars have the downside of relatively lower sampling rate and spatial resolution. In this work, we present FD-RIO, a method to alleviate this problem by fusing noisy, drift-prone, but high-frequency IMU data with dense radar scans. To the best of our knowledge, this is the first attempt to fuse dense scanning radar odometry with IMU using a Kalman filter. We evaluate our methods using two publicly available datasets and report accuracies using standard KITTI evaluation metrics, in addition to ablation tests and runtime analysis. Our phase correlation -based approach is compact, intuitive, and is designed to be a practical solution deployable on a realistic hardware setup of a mobile platform. Despite its simplicity, FD-RIO is on par with other state-of-the-art methods and outperforms in some test sequences.

Radar Odometry for Autonomous Ground Vehicles: A Survey of Methods and Datasets

Radar odometry has been gaining attention in the last decade. It stands as one of the best solutions for robotic state estimation in unfavorable conditions; conditions where other interoceptive and exteroceptive sensors may fall short. Radars are widely adopted, resilient to weather and illumination, and provide Doppler information which make them very attractive for such tasks. This article presents an extensive survey of the latest work on ground-based radar odometry for autonomous robots. It covers technologies, datasets, metrics, and approaches that have been developed in the last decade in addition to in-depth analysis and categorization of the various methods and techniques applied to tackle this problem. This article concludes with challenges and future recommendations to advance the field of radar odometry making it a great starting point for newcomers and a valuable reference for experienced researchers.
