Micro Air Vehicle Link (MAVLink) in a Nutshell: A Survey

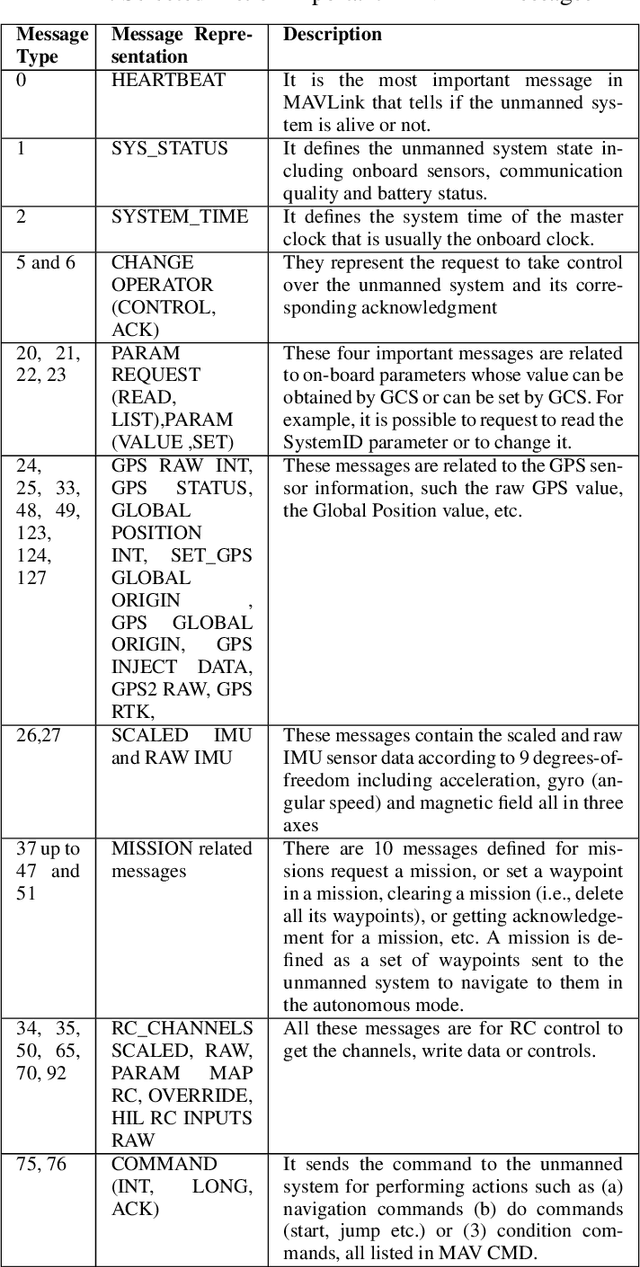

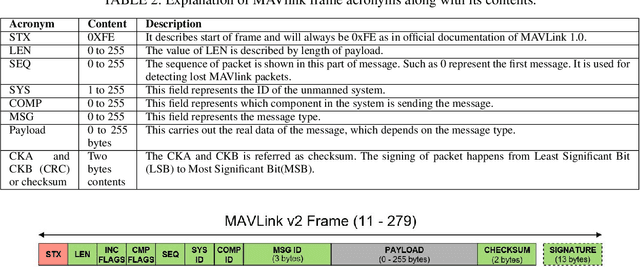

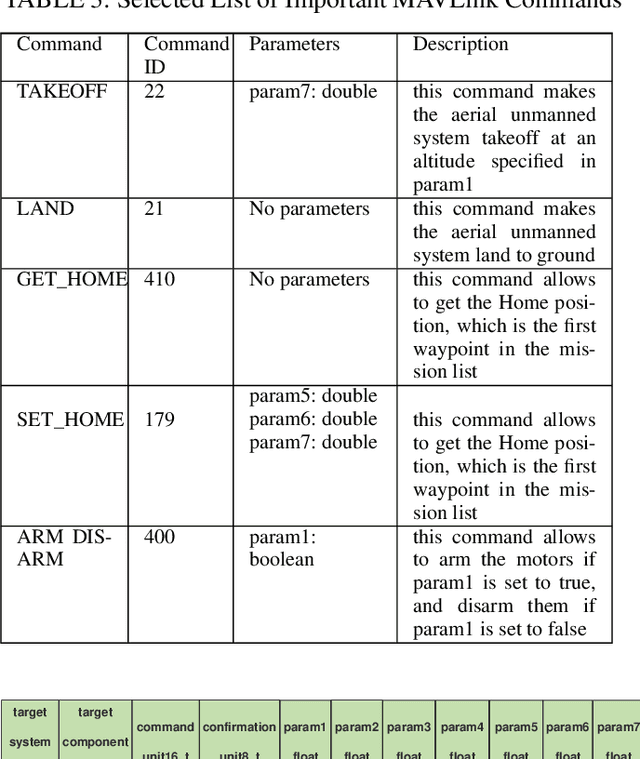

The Micro Air Vehicle Link (MAVLink in short) is a communication protocol for unmanned systems (e.g., drones, robots). It specifies a comprehensive set of messages exchanged between unmanned systems and ground stations. This protocol is used in major autopilot systems, mainly ArduPilot and PX4, and provides powerful features not only for monitoring and controlling unmanned systems missions but also for their integration into the Internet. However, there is no technical survey and/or tutorial in the literature that presents these features or explains how to make use of them. Most of the references are online tutorials and basic technical reports, and none of them presents comprehensive and systematic coverage of the protocol. In this paper, we address this gap, and we propose an overview of the MAVLink protocol, the difference between its versions, and its potential in enabling Internet connectivity to unmanned systems. We also discuss the security aspects of MAVLink. To the best of our knowledge, this is the first technical survey and tutorial on the MAVLink protocol, which represents an important reference for unmanned systems users and developers.

MAVSec: Securing the MAVLink Protocol for Ardupilot/PX4 Unmanned Aerial Systems

The MAVLink is a lightweight communication protocol between Unmanned Aerial Vehicles (UAVs) and ground control stations (GCSs). It defines a set of bi-directional messages exchanged between a UAV (aka drone) and a ground station. The messages carry out information about the UAV's states and control commands sent from the ground station. However, the MAVLink protocol is not secure and has several vulnerabilities to different attacks that result in critical threats and safety concerns. Very few studies provided solutions to this problem. In this paper, we discuss the security vulnerabilities of the MAVLink protocol and propose MAVSec, a security-integrated mechanism for MAVLink that leverages the use of encryption algorithms to ensure the protection of exchanged MAVLink messages between UAVs and GCSs. To validate MAVSec, we implemented it in Ardupilot and evaluated the performance of different encryption algorithms (i.e. AES-CBC, AES-CTR, RC4, and ChaCha20) in terms of memory usage and CPU consumption. The experimental results show that ChaCha20 has a better performance and is more efficient than other encryption algorithms. Integrating ChaCha20 into MAVLink can guarantee its messages confidentiality, without affecting its performance, while occupying less memory and CPU consumption, thus, preserving memory and saving the battery for the resource-constrained drone.

Qualitative and Quantitative Risk Analysis and Safety Assessment of Unmanned Aerial Vehicles Missions over the Internet

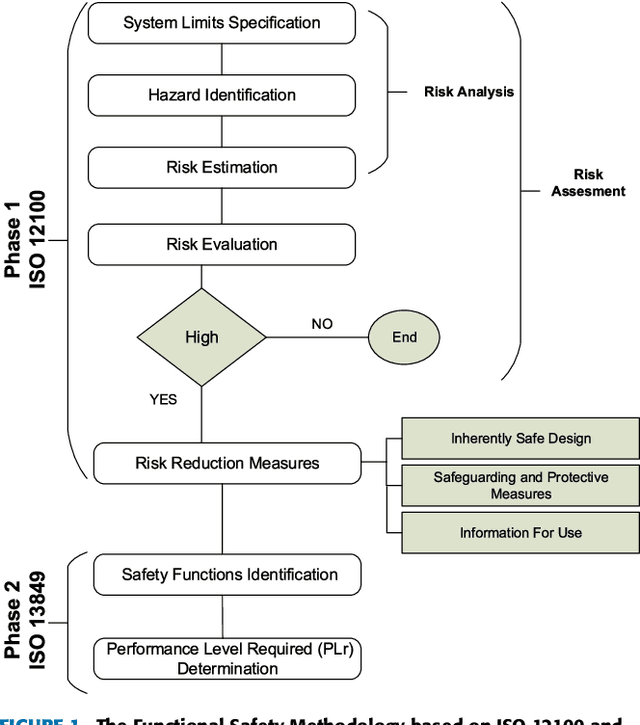

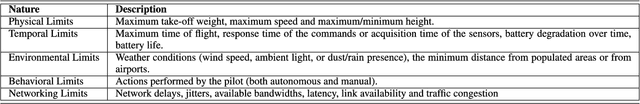

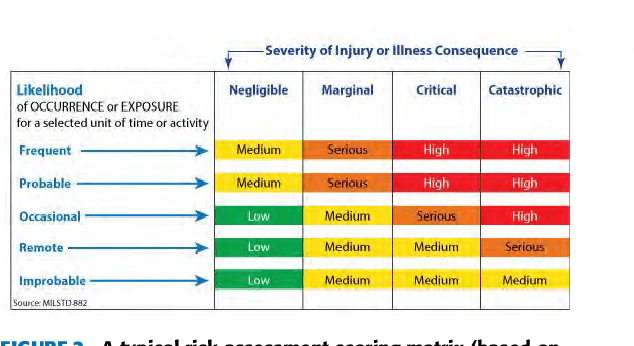

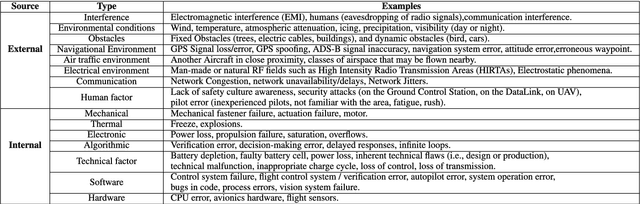

In the last few years, Unmanned Aerial Vehicles (UAVs) are making a revolution as an emerging technology with many different applications in the military, civilian, and commercial fields. The advent of autonomous drones has initiated serious challenges, including how to maintain their safe operation during their missions. The safe operation of UAVs remains an open and sensitive issue since any unexpected behavior of the drone or any hazard would lead to potential risks that might be very severe. The motivation behind this work is to propose a methodology for the safety assurance of drones over the Internet {(Internet of drones (IoD))}. Two approaches will be used in performing the safety analysis: (1) a qualitative safety analysis approach, and (2) a quantitative safety analysis approach. The first approach uses the international safety standards, namely ISO 12100 and ISO 13849 to assess the safety of drone's missions by focusing on qualitative assessment techniques. The methodology starts with hazard identification, risk assessment, risk mitigation, and finally, draws the safety recommendations associated with a drone delivery use case. The second approach presents a method for the quantitative safety assessment using Bayesian Networks (BN) for probabilistic modeling. BN utilizes the information provided by the first approach to model the safety risks related to UAVs' flights. An illustrative UAV crash scenario is presented as a case study, followed by scenario analysis, to demonstrate the applicability of the proposed approach. These two analyses, qualitative and quantitative, enable { all involved stakeholders} to detect, explore and address the risks of UAV flights, which will help the industry to better manage the safety concerns of UAVs.
